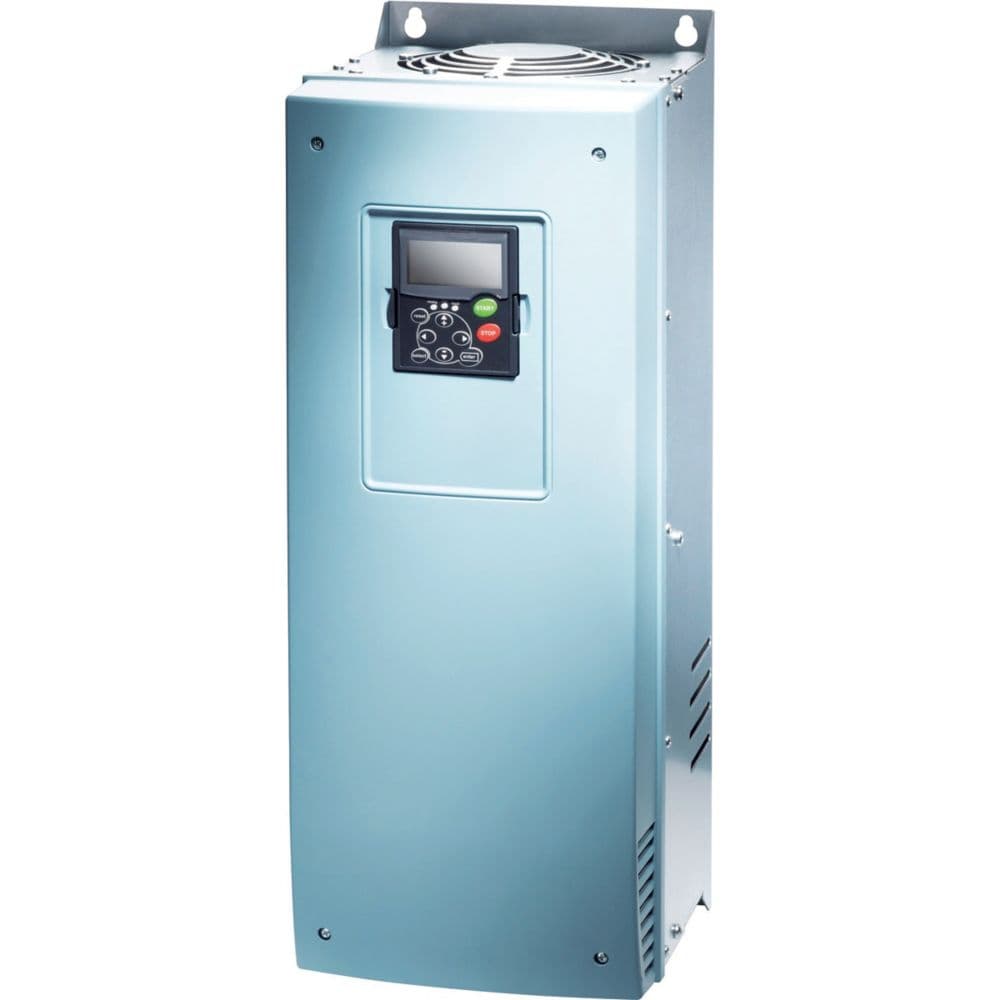

Eaton SVX Variable frequency drive

Eaton

Eaton SVX Variable frequency drive

رقم القطعة: 138489

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SVX Variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SVX Variable frequency drive
Catalog Number138489
Model CodeSVX030A1-5A4B1
EAN4015081352685
Product Length/Depth640 mm
Product Height257 mm
Product Width237 mm
Product Weight35 kg
CertificationsCE CUL Safety: EN 61800-5-1: 2003 UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 UL File No.: E134360 IEC/EN61800-5 RoHS, ISO 9001 UL UL report applies to both US and Canada IEC/EN61800-3 UL 508C Certified by UL for use in Canada Specification for general requirements: IEC/EN 61800-2 CSA Class No.: 3211-06 CSA-C22.2 No. 14 DNV IEC/EN 61800-3 RCM
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.138489.html
AltitudeMax. 3000 m Above 1000 m with 1 % performance reduction per 100 m Max. 1000 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
