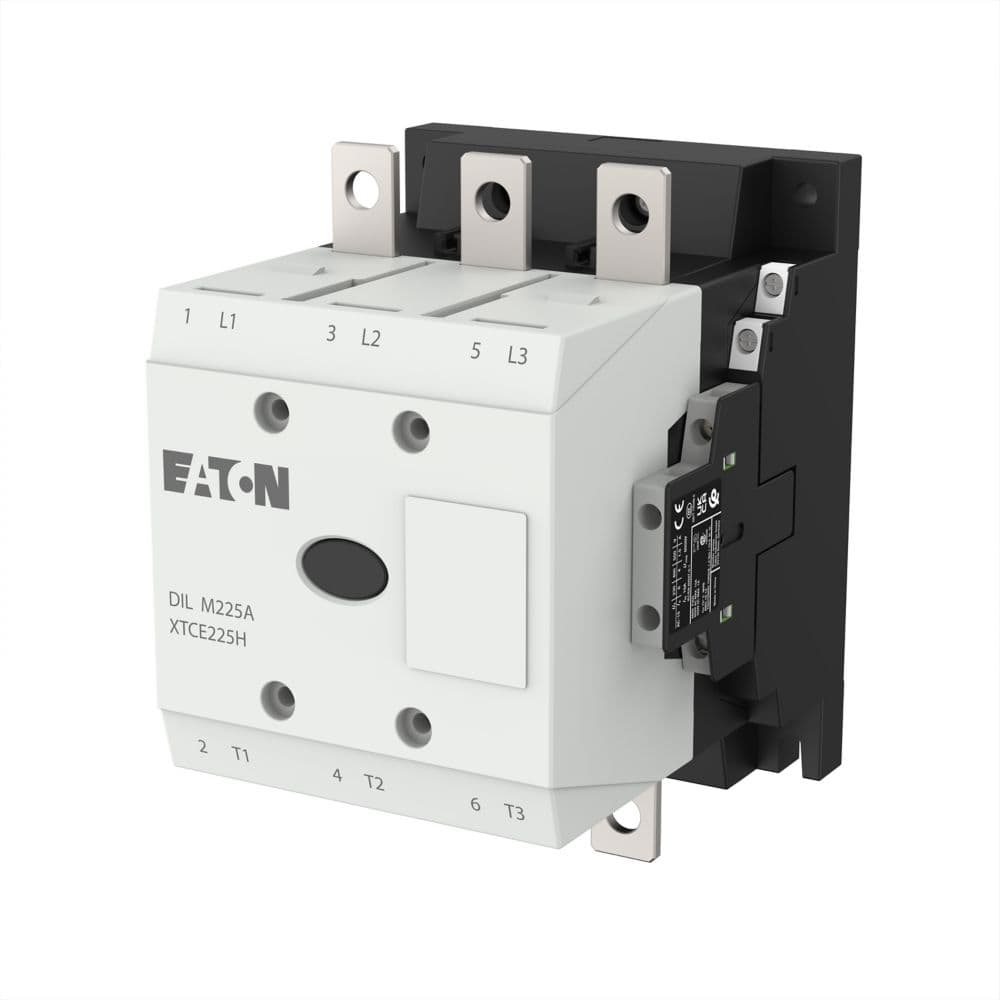

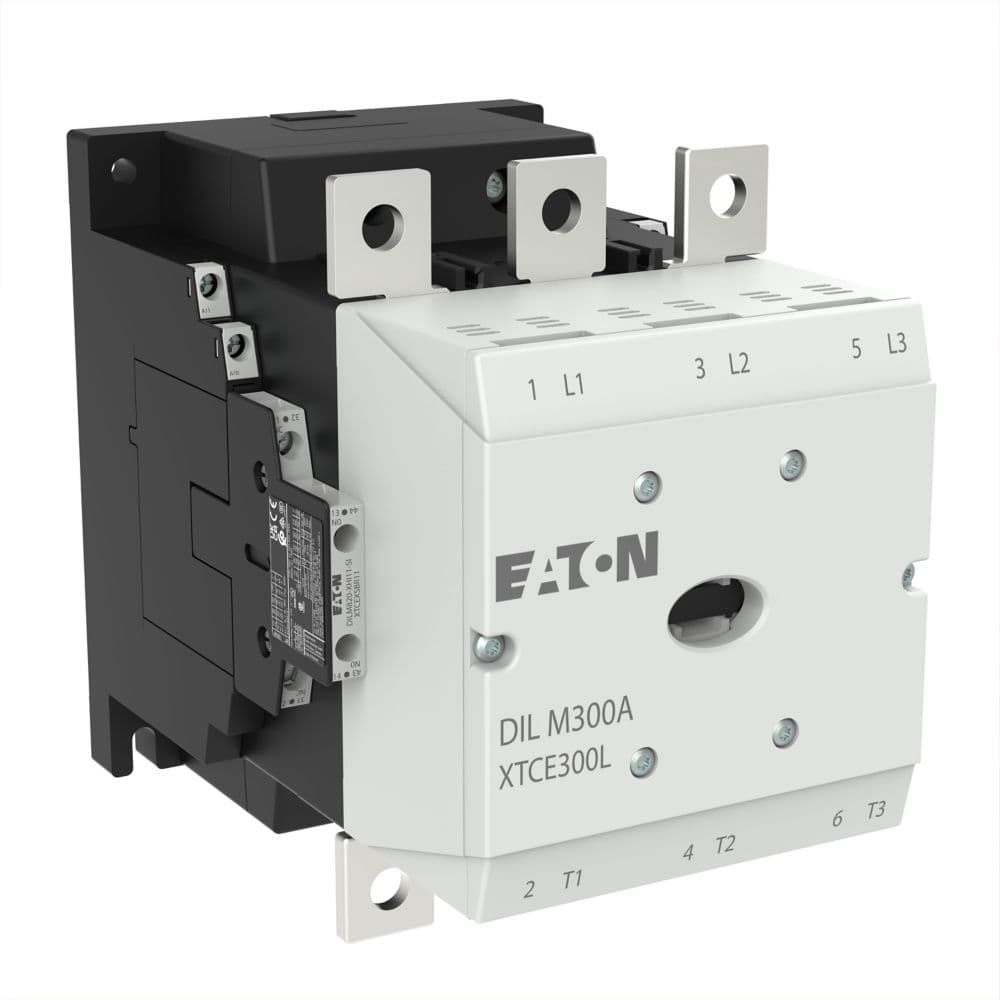

Eaton Moeller® series DILM Contactor

Name: Eaton Moeller® series DILM Contactor
Brand: Eaton
SKU: 139550

رقم القطعة: 139550

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM Contactor

Product Name	Eaton Moeller® series DILM Contactor
Catalog Number	139550
Model Code	DILM225A/22(RDC24)
EAN	4015081363285
Product Length/Depth	158 mm
Product Height	190 mm
Product Width	140 mm
Product Weight	3.54 kg
Certifications	CE CSA CSA Class No.: 3211-04 IEC/EN 60947-4-1 UL 60947-4-1 UL File No.: E29096 VDE 0660 UL Category Control No.: NLDX CSA File No.: 2389068 CSA-C22.2 No. 60947-4-1-14 IEC/EN 60947 UL
Source URL	https://www.eaton.com/gb/en-gb/skuPage.139550.html
Catalog Notes	Contacts according to EN 50012Also tested according to AC-3e up to 500 V.Also suitable for motors with efficiency class IE3.Conventional thermal current Ith of main contacts (1-pole, open) at 60°
Conventional thermal current Ith at 40°C (3-pole, open)	386 A
Conventional thermal current Ith at 50°C (3-pole, open)	345 A
Conventional thermal current Ith at 55°C (3-pole, open)	329 A
Conventional thermal current Ith at 60°C (3-pole, open)	315 A
Conventional thermal current Ith of main contacts (1-pole, open)	788 A
Conventional thermal current Ith (1-pole, enclosed)	688 A
Conventional thermal current Ith (3-pole, enclosed)	275 A
