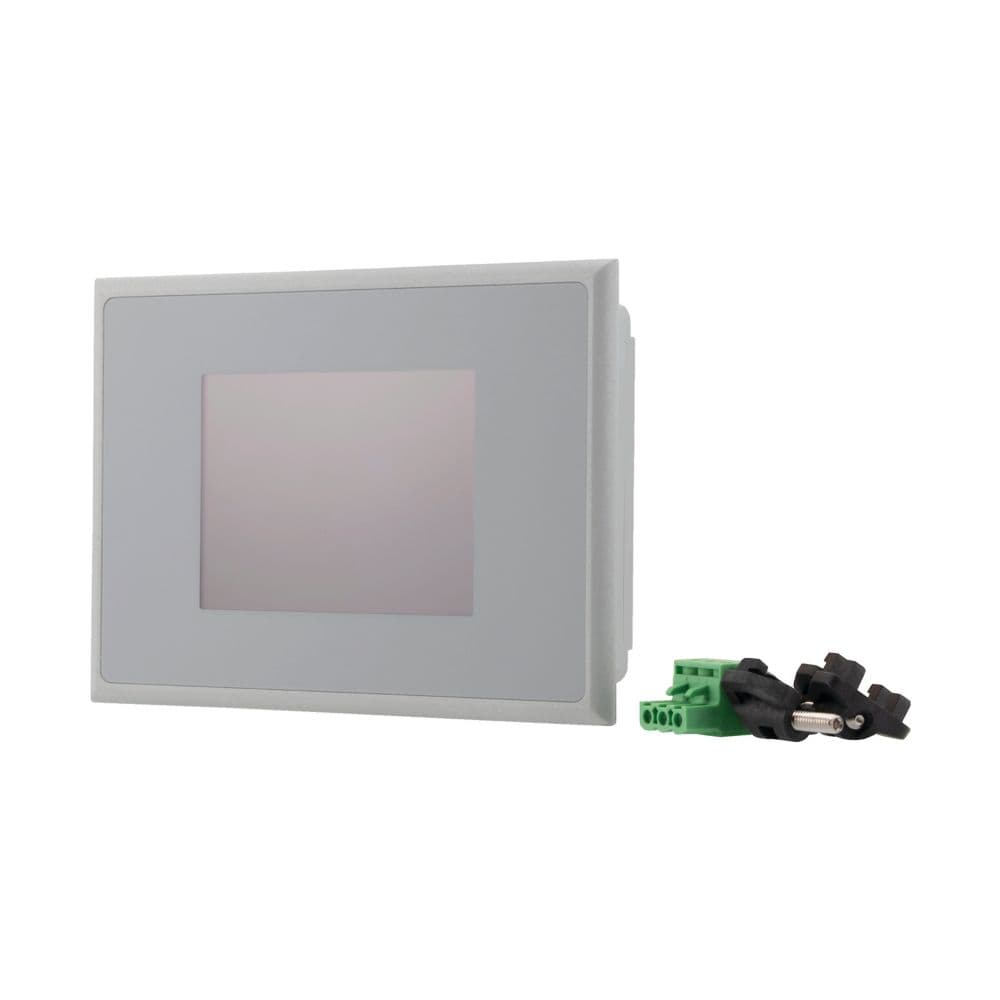

Eaton XV-102 Touch panel

Name: Eaton XV-102 Touch panel
Brand: Eaton
SKU: 140023

رقم القطعة: 140023

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XV-102 Touch panel

المواصفات

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	0 °C
Ambient storage temperature - max	60 °C
Ambient storage temperature - min	-20 °C
Functions	Additional software components, loadable Process value representation (output) possible Process default value (input) possible
Product Name	Eaton XV-102 Touch panel
Catalog Number	140023
Model Code	XV-102-B8-35TQR-10-PLC
EAN	7640130095694
Product Length/Depth	136 mm
Product Height	30 mm
Product Width	100 mm
Product Weight	0.275 kg
Certifications	DNV GL IEC/EN 61131-2 CE UL report applies to both US and Canada UL 60950 UL Category Control No.: NWGQ2 UL File No.: E208621 CSA-C22.2 No. 60950-1 UL Recognized EN 60950 Certified by UL for use in Canada IEC/EN 61000-6-4 IEC/EN 61000-6-2 EN 50178 CSA Class No.: NWGQ8 CUL508 UL 60950-01 EAC
Source URL	https://www.eaton.com/gb/en-gb/skuPage.140023.html
Features	Portrait format Slot for SD card Ethernet interface UL508, cUL approvals Fanless CPU and system cooling, natural convection-based passive cooling USB device
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP65 IP20, rear
Enclosure material	Plastic
Built-in depth	25 mm
Mounting method	Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Model	Insulating enclosure and front plate
Fitted with:	Numeric keyboard 1 x PROFIBUS/MPI (built-in interface) 1 x RS485 (built-in interface) 1 x Ethernet 10/100 Mbps (built-in interfaces) Recipes 1 x USB device (built-in interface) Color display Message indication Message system (incl. buffer and confirmation) Printer output SW interfaces Alpha numeric keyboard
Shock resistance	Mechanical, According to IEC/EN 60068-2-27
Vibration resistance	According to IEC/EN 60068-2-6
Operating temperature - max	50 °C
Operating temperature - min	0 °C
Equipment heat dissipation, current-dependent Pvid	5 W
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Rated operational current for specified heat dissipation (In)	0 A
Static heat dissipation, non-current-dependent Pvs	5 W
Product category	HMI-PLC (integrated SPS function)
Degree of protection (front side)	IP65 NEMA 4X
Voltage type	DC
Power consumption	Max. 5 W 5 W
Explosion safety category for dust	ATEX dust-ex-protection, in relation to CE ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
Memory capacity	64,000 kByte
Memory	128 MByte internal NAND-Flash (can be used for data backup) 32 kByte internal NVRAM (retained data) SD Memory Card Slot: SDA Specification 1.00 (External) 64 MByte internal DRAM (OS, Program and data memory)
Relative humidity	10 - 95 % (non-condensing)
Protocol	Other bus systems MODBUS EtherNet/IP TCP/IP PROFIBUS
Fuse type	Built-in fuse (not accessible)
Air pressure	795 - 1080 hPa (operation)
Battery runtime	Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Number of HW-interfaces (industrial ethernet)	1
Number of HW-interfaces (other)	1
Number of HW-interfaces (parallel)	0
Number of HW-interfaces (RS-232)	0
Number of HW-interfaces (RS-422)	0
Number of HW-interfaces (RS-485)	1
Number of HW-interfaces (USB)	1
Number of HW-interfaces (wireless)	0
Number of interfaces (PROFINET)	0
Protection against polarity reversal	Yes, for supply voltage (Siemens MPI optional) Yes
Residual ripple	≤ 5 % (input voltage)
Processor	RISC CPU, 32 Bit, 400 MHz
Supply voltage at AC, 50 Hz - max	0 VAC
Supply voltage at AC, 50 Hz - min	0 VAC
Supply voltage at AC, 60 Hz - max	0 VAC
Supply voltage at AC, 60 Hz - min	0 VAC
Supply voltage at DC - max	28.8 VDC
Supply voltage at DC - min	20.4 VDC
Interfaces	RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC) USB 2.0 device (not galvanically isolated) Ethernet (100Base-TX/10Base-T) RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
Potential isolation	Supply voltage UAUX: no Power supply: no
Voltage dips	≤ 10 ms from rated voltage (24 V DC) 5 ms from undervoltage (19.2 V DC)
Width of the front	136 mm
Resolution	320 x 240 pxQVGA
Display size	70 x 53 mm
Backup time	10 years, typ. (time at zero voltage)
Front height	100 mm
Number of buttons (programmable function)	0
Number of buttons with LED	0
Number of grey-scales/blue-scales of display	0
Conditions of acceptability	UL/CSA The investigated Pollution Degree is: 2 The following end-product enclosures are required: Fire The unit must be supplied via a SELV source. The provided Ethernet Connection is only allowed to connect to inhouse networks.
Operating system	Windows CE 5.0 (license included)
Software	XSOFT-CODESYS-2, Visualization software, Engineering XSOFT-CODESYS-3, Visualization software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering EPAM, Visualization software, Engineering GALILEO, Visualization software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering
Display contrast ratio	300:1
Number of slots	1 (for SD-Card)
Display lighting	Dimmable via software LED
Display type	Color display, TFT Standard front with standard membrane (fully enclosed) TFT
Lifespan	40,000 h (Service life of back-lighting)
Rated control supply voltage	24 V DC (UAUX, -20 %/+25 %) 24 V DC (UPOW, -20 %/+25 %)
Luminance intensity	250 cd/m²
Number of colors of the display	65536
RoHs conformity	Yes
Touch technology	Glass with film touch sensor Resistive touch Touch sensor (glass with foil), Resistive touch protective screen
Number of HW-interfaces (serial TTY)	0
Number of online/runtime languages	100
Number of password levels	200
Number of pixels (horizontal)	320
Number of pixels (vertical)	240
Number of system buttons	1
Screen size (diagonal)	3.5 in
Permissible voltage	19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 35 V DC (for a duration of < 100 ms) 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 18.0 - 31.2 V DC, absolute with ripple
Rated operational voltage	24 V DC (power-supply - safety extra low voltage)
Communication interface	PROFIBUS, not galvanically isolated, max. 1.5 MBit/s (SUB-D socket 9 pole, UNC)
