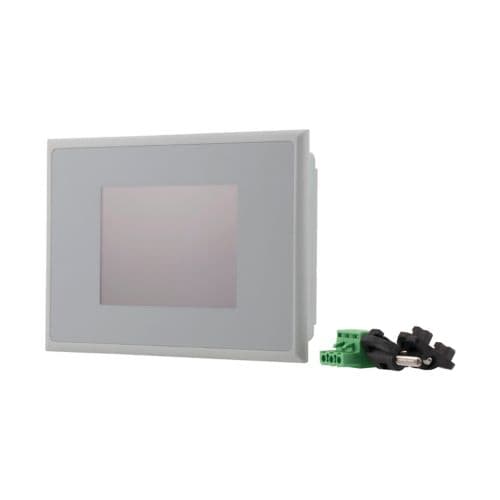

Eaton XV-102 Touch panel

Name: Eaton XV-102 Touch panel
Brand: Eaton
SKU: 141759

رقم القطعة: 141759

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XV-102 Touch panel

المواصفات

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	0 °C
Ambient storage temperature - max	60 °C
Ambient storage temperature - min	-20 °C
Functions	HMI Additional software components, loadable Process value representation (output) possible Process default value (input) possible
Product Name	Eaton XV-102 Touch panel
Catalog Number	141759
Model Code	XV-102-A0-35MQR-10
EAN	7640130095557
Product Length/Depth	136 mm
Product Height	30 mm
Product Width	100 mm
Product Weight	0.245 kg
Certifications	CE Certified by UL for use in Canada IEC/EN 61000-6-4 UL File No.: E208621 CSA-C22.2 No. 60950-1 CUL508 EN 60950 UL 60950 CSA Class No.: NWGQ8 EN 50178 IEC/EN 61000-6-2 IEC/EN 61131-2 UL 60950-01 UL report applies to both US and Canada UL Category Control No.: NWGQ2 UL Recognized EAC
Source URL	https://www.eaton.com/gb/en-gb/skuPage.141759.html
Features	USB device UL508, cUL approvals Ethernet interface Portrait format Slot for SD card
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20, rear IP65
Enclosure material	Plastic
Built-in depth	25 mm
Mounting method	Flush mounting Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Model	Insulating enclosure and front plate
Fitted with:	Recipes 1 x USB device (built-in interface) Numeric keyboard Message system (incl. buffer and confirmation) Alpha numeric keyboard SW interfaces 1 x Ethernet 10/100 Mbps (built-in interfaces) Message indication Printer output
Shock resistance	Mechanical, According to IEC/EN 60068-2-27
Vibration resistance	According to IEC/EN 60068-2-6
Operating temperature - max	50 °C
Operating temperature - min	0 °C
Equipment heat dissipation, current-dependent Pvid	5 W
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Rated operational current for specified heat dissipation (In)	0 A
Static heat dissipation, non-current-dependent Pvs	5 W
Product category	XV-100
Degree of protection (front side)	IP65 NEMA 4X
Voltage type	DC
Power consumption	Max. 5 W 5 W
Explosion safety category for dust	ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D ATEX dust-ex-protection, in relation to CE
Explosion safety category for gas	Explosion protection according to EN 61241-1 Explosion protection according to EN 13463_x Explosion protection according to EN 60079-0
Memory capacity	64,000 kByte
Memory	SD Memory Card Slot: SDA Specification 1.00 (External) 64 MByte internal DRAM (OS, Program and data memory) 128 MByte internal NAND-Flash (can be used for data backup)
Relative humidity	10 - 95 % (non-condensing)
Protocol	MODBUS EtherNet/IP Other bus systems TCP/IP
Fuse type	Built-in fuse (not accessible)
Air pressure	795 - 1080 hPa (operation)
Battery runtime	Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Number of HW-interfaces (industrial ethernet)	1
Number of HW-interfaces (other)	0
Number of HW-interfaces (parallel)	0
Number of HW-interfaces (RS-232)	0
Number of HW-interfaces (RS-422)	0
Number of HW-interfaces (RS-485)	0
Number of HW-interfaces (USB)	1
Number of HW-interfaces (wireless)	0
Number of interfaces (PROFINET)	0
Protection against polarity reversal	Yes Yes, for supply voltage (Siemens MPI optional)
Processor	RISC CPU, 32 Bit, 400 MHz
Supply voltage at AC, 50 Hz - max	0 VAC
Supply voltage at AC, 50 Hz - min	0 VAC
Supply voltage at AC, 60 Hz - max	0 VAC
Supply voltage at AC, 60 Hz - min	0 VAC
Supply voltage at DC - max	28.8 VDC
Supply voltage at DC - min	20.4 VDC
Interfaces	USB 2.0 device (not galvanically isolated) Ethernet (100Base-TX/10Base-T)
Potential isolation	Power supply: no
Voltage dips	5 ms from undervoltage (19.2 V DC) ≤ 10 ms from rated voltage (24 V DC)
Width of the front	136 mm
Resolution	320 x 240 pxQVGA
Display size	70 x 53 mm
Backup time	10 years, typ. (time at zero voltage)
Front height	100 mm
Number of buttons (programmable function)	0
Number of buttons with LED	0
Number of grey-scales/blue-scales of display	32
Conditions of acceptability	The following end-product enclosures are required: Fire The unit must be supplied via a SELV source. The provided Ethernet Connection is only allowed to connect to inhouse networks. UL/CSA The investigated Pollution Degree is: 2
Operating system	Windows CE 5.0 (license included)
Software	GALILEO/EPAM
Display contrast ratio	300:1
Number of slots	1 (for SD-Card)
Display lighting	LED Dimmable via software
Display type	Standard front with standard membrane (fully enclosed) B/W display, TFT TFT
Lifespan	40,000 h (Service life of back-lighting)
Rated control supply voltage	24 V DC (UAUX, -20 %/+25 %)
Luminance intensity	250 cd/m²
Number of colors of the display	32
RoHs conformity	Yes
Touch technology	Resistive touch Touch sensor (glass with foil), Resistive touch protective screen
Number of HW-interfaces (serial TTY)	0
Number of online/runtime languages	100
Number of password levels	200
Number of pixels (horizontal)	320
Number of pixels (vertical)	240
Number of system buttons	1
Screen size (diagonal)	3.5 in
Permissible voltage	18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 18.0 - 31.2 V DC, absolute with ripple 35 V DC (for a duration of < 100 ms) 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
Rated operational voltage	24 V DC (power-supply - safety extra low voltage)
