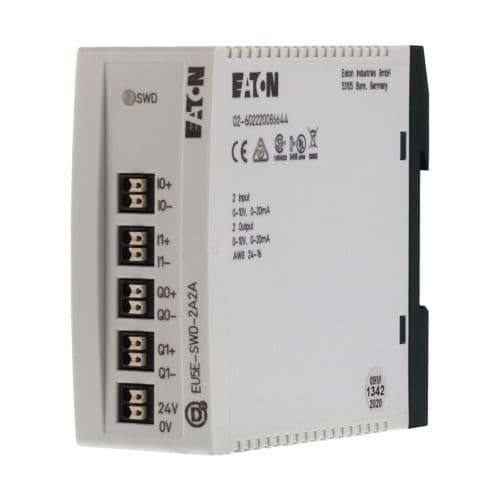

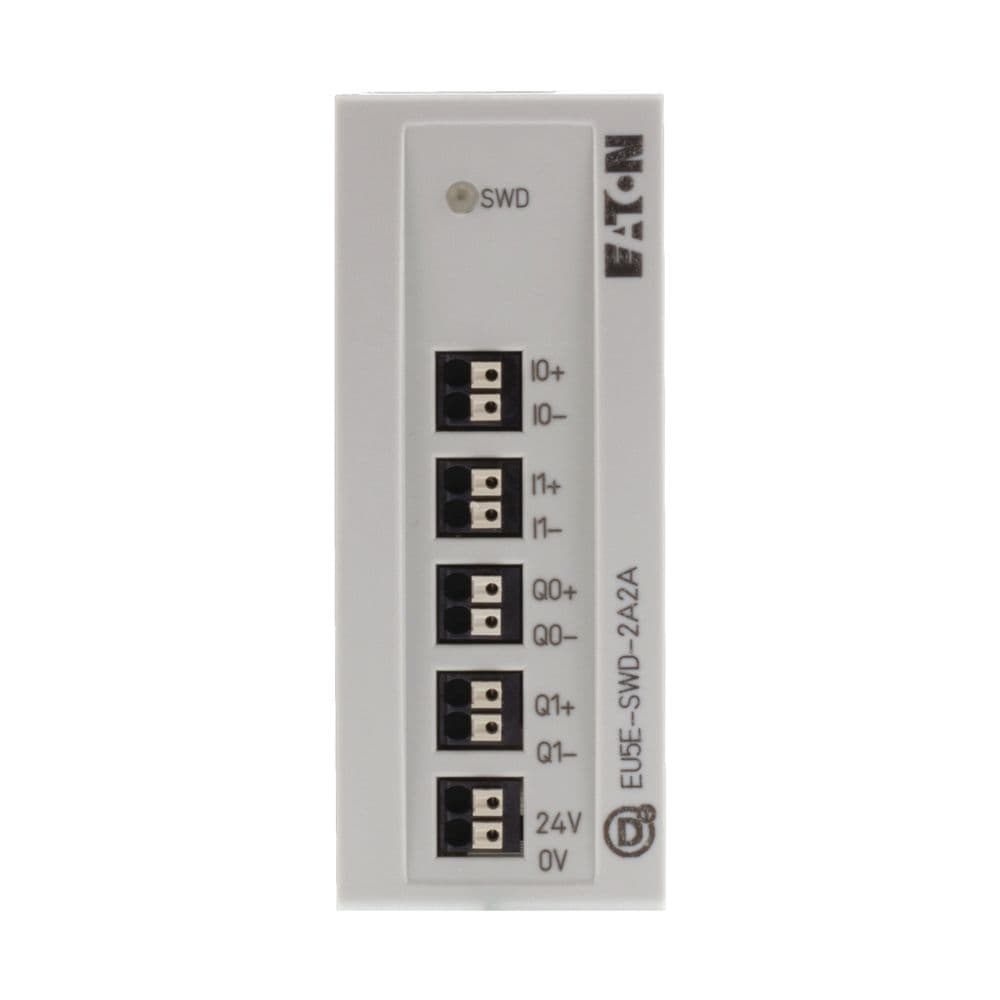

Eaton EU5E I/O module

Eaton

Eaton EU5E I/O module

رقم القطعة: 144063

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton EU5E I/O module

المواصفات

Product NameEaton EU5E I/O module
Catalog Number144063
Model CodeEU5E-SWD-2A2A
EAN4015081405930
Product Length/Depth102 mm
Product Height90 mm
Product Width35 mm
Product Weight0.09 kg
CertificationsUL Category Control No.: NKCR IEC/EN 61131-2 UL CSA UL File No.: E29184 CSA Class No.: 3211-07 CSA File No.: 2324643
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.144063.html
Catalog Notesalog outputs 0?10V or 0?20 mA
Mounting positionAs required
Shock resistance15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Constant acceleration1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max0.3 m
