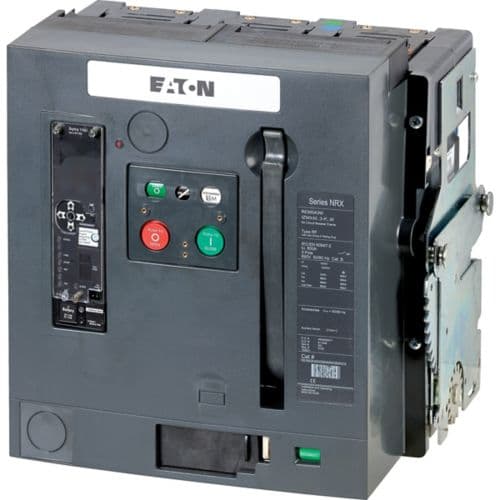

Eaton Moeller series IZMX/INX circuit-breaker

Eaton

Eaton Moeller series IZMX/INX circuit-breaker

رقم القطعة: 149785

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

المواصفات

Special featuresCassette must be separately ordered.\nIZMX-DTP-PTM external voltage measuring module required\nsuitable for zone selectivity\nsuitable for communication\nwith integrated system monitor\nwith integrated test possibility\nwith graphic LCD color display\noptionally fittable by user with comprehensive accessories\nThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product NameEaton Moeller series IZMX/INX circuit-breaker
Catalog Number149785
Model CodeIZMX40B3-P20W
EAN4015081463695
Product Length/Depth584 mm
Product Height597 mm
Product Width521 mm
Product Weight69 kg
CompliancesIEC IEC/EN 60947 RoHS conform
CertificationsIEC Rated EN 60947 IEC 60947 EN Listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.149785.html
Suitable forMain conducting paths with 36 kA in IT electrical power networks up to U = 440 V
Used withMechanical interlock, IZMX-MIL...C-F Series, IZMX-MIL...C-W Series Open circuit breaker Air circuit breakers/switch-disconnector
FeaturesMotor drive optional
TypeAir circuit breakers/switch-disconnector\nOpen circuit breaker
Fitted with:Switched-off indicator
Number of polesThree-pole
Amperage Rating2000 A
FrameIZMX40
Release systemElectronic release
