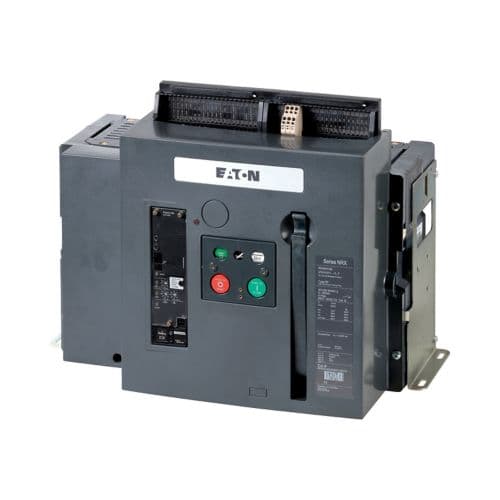

Eaton Moeller series IZMX/INX circuit-breaker

Name: Eaton Moeller series IZMX/INX circuit-breaker
Brand: Eaton
SKU: 149943

رقم القطعة: 149943

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

Special features	IZMX-DTP-PTM external voltage measuring module required\nsuitable for zone selectivity\nsuitable for communication\nwith integrated system monitor\nwith integrated test possibility\nwith graphic LCD color display\noptionally fittable by user with comprehensive accessories\nThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product Name	Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number	149943
Model Code	IZMX40H4-P12F
EAN	4015081462117
Product Length/Depth	584 mm
Product Height	597 mm
Product Width	521 mm
Product Weight	56 kg
Compliances	IEC IEC/EN 60947
Source URL	https://www.eaton.com/gb/en-gb/skuPage.149943.html
Suitable for	Main conducting paths with 57.6 kA in IT electrical power networks up to U = 440 V
Used with	Air circuit breakers/switch-disconnector Open circuit breaker
Features	Motor drive optional
Type	Air circuit breakers/switch-disconnector\nOpen circuit breaker
Fitted with:	Switched-off indicator
Number of poles	Four-pole
Amperage Rating	1250 A
Frame	IZMX40
Release system	Electronic release
