Eaton XV-152 Touch panel
رقم القطعة: 150605
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

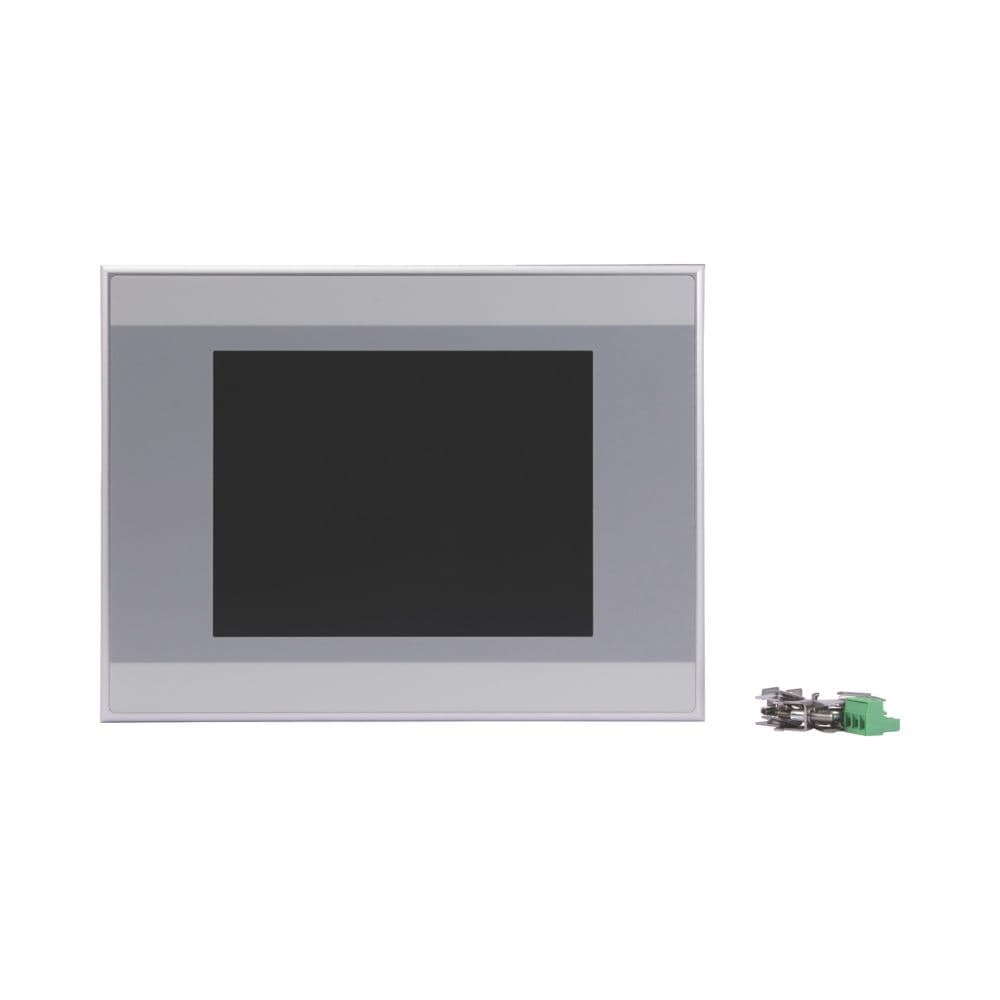

Eaton XV-152 Touch panel
المواصفات
| Ambient operating temperature - max | 50 °C |
|---|---|
| Ambient operating temperature - min | 0 °C |
| Ambient storage temperature - max | 60 °C |
| Ambient storage temperature - min | -20 °C |
| Functions | Process default value (input) possible Process value representation (output) possible Additional software components, loadable |
| Product Name | Eaton XV-152 Touch panel |
| Catalog Number | 150605 |
| Model Code | XV-152-D6-84TVRC-10 |
| EAN | 7640130097230 |
| Product Length/Depth | 275 mm |
| Product Height | 52.5 mm |
| Product Width | 208 mm |
| Product Weight | 2.15 kg |
| Certifications | IEC/EN 60079-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x) IEC/EN 60950 Certified by UL for use in Canada IEC/EN 61241-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x) UL 508 IEC/EN 61000-6-2 IEC/EN 61131-2 IEC/EN 61241-1 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x) Security: CSA Class No.: none DNV GL cULus EN 50178 IEC/EN 61000-6-3 UL File No.: E205091 IEC/EN 61131-2, CE UL CSA File No.: UL report applies to both US and Canada CUL508 IEC/EN 61000-6-4 UL508 UL 60950 UL Category Control No.: NRAQ ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x) EN 60950 |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.150605.html |
| Features | Slot for SD card USB Host Ethernet interface UL508, cUL approvals Fanless CPU and system cooling, natural convection-based passive cooling USB device Overload proof Portrait format |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Degree of protection | IP20, rear NEMA 4X IP20 |
| Enclosure material | Metal, anodized |
| Built-in depth | 47 mm |
| Mounting method | Flush mounting Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting - Inclination from vertical: ±45° (if using natural convection) |
| Model | Metal enclosure and front plate |
| Fitted with: | Alpha numeric keyboard Message system (incl. buffer and confirmation) 1 x USB host 2.0 (built-in interface) 1 x RS485 (built-in interface) 1 x CANopen®/easyNet (built-in interfaces) Printer output 1 x Ethernet 10/100 Mbps (built-in interfaces) 1 x RS232 (built-in interface) Recipes Message indication Color display Numeric keyboard 1 x USB device (built-in interface) SW interfaces |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 |
| Vibration resistance | According to IEC/EN 60068-2-6 |
| Operating temperature - max | 50 °C |
| Operating temperature - min | 0 °C |
| Equipment heat dissipation, current-dependent Pvid | 14.5 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 14.5 W |
| Product category | HMI-PLC (integrated SPS function) |
| Connection type | SWD: Plug, 8-pole Push in terminals, Supply voltage |
| Terminal capacity | 0.2 - 1.5 mm², solid 0.25 - 1.5 mm², flexible with ferrule 24 - 16 AWG, solid or stranded |
| Degree of protection (front side) | IP65 NEMA 4X |
| Voltage type | DC |
| Power consumption | 2.5 W (USB Slave to USB Host) 9.5 W total Max. 12 W 12 W |
| Rated operational current (Ie) | 0.7 A |
| Short-circuit protection | No, external fuse FAZ Z3, Supply voltage UAux Yes, Short-circuit rating, SmartWire-DT supply voltage |
| Explosion safety category for dust | ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D ATEX dust-ex-protection, in relation to CE |
| LED indicator | Status indication of SmartWire-DT master: Green and red LEDs Status indication of SmartWire-DT network: Configurable green or red LED Status indication of Supply voltage: LED |
| Connection | SmartWire-DT blade terminal SWD4-8MF2 |
| Memory capacity | 64,000 kByte |
| Memory | NVRAM (Retain data): 125 kByte NOR-Flash: 2 MByte NAND-Flash (can be used for data backup): approx. 64 MByte available 64 MByte internal DRAM (OS, Program and data memory) SD Memory Card Slot: SDA Specification 1.00 (External) |
| Relative humidity | IEC/EN 50178 10 - 95 % (non-condensing) |
| Protocol | TCP/IP MODBUS EtherNet/IP CAN Other bus systems |
| Fuse type | Built-in fuse (not accessible) |
| Air pressure | 795 - 1080 hPa (operation) |
| Battery runtime | Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered) |
| Number of HW-interfaces (industrial ethernet) | 1 |
| Number of HW-interfaces (other) | 1 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 1 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 1 |
| Number of HW-interfaces (USB) | 2 |
| Number of HW-interfaces (wireless) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Protection against polarity reversal | Yes, for supply voltage (Siemens MPI optional) Yes |
| Data transfer rate | 125 kBit/s, SmartWire-DT 250 kBit/s, SmartWire-DT |
| Residual ripple | ≤ 5 % (input voltage) |
| Inrush current | 12.5 A (for 6 ms) |
| Processor | RISC CPU, 32 Bit, 400 MHz |
| Repetition rate | 1 s |
| Supply voltage at AC, 50 Hz - max | 0 VAC |
| Supply voltage at AC, 50 Hz - min | 0 VAC |
| Supply voltage at AC, 60 Hz - max | 0 VAC |
| Supply voltage at AC, 60 Hz - min | 0 VAC |
| Supply voltage at DC - max | 28.8 VDC |
| Supply voltage at DC - min | 20.4 VDC |
| Interfaces | USB 2.0 device (not galvanically isolated) Ethernet (100Base-TX/10Base-T) |
| Potential isolation | UAUX: no Power supply: no Between UPow and 15 V SmartWire-DT supply voltage: no |
| Voltage dips | ≤ 10 ms, Bridging voltage dips ≤ 10 ms from rated voltage (24 V DC) 5 ms from undervoltage (19.2 V DC) |
| Width of the front | 275 mm |
| Resolution | 640 x 480 pxVGA |
| Display size | 170 x 128 mm |
| Backup time | 10 years, typ. (time at zero voltage) |
| Front height | 208 mm |
| Number of buttons (programmable function) | 0 |
| Number of buttons with LED | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Operating system | Windows CE 5.0 (license included) |
| Software | EPAM, Visualization software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering XSOFT-CODESYS-2, Visualization software, Engineering XSOFT-CODESYS-3, Visualization software, Engineering GALILEO, Visualization software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering |
| Display contrast ratio | 300:1 |
| Number of slots | 1 (for SD-Card) |
| Display lighting | Dimmable via software LED |
| Display type | Standard front with standard membrane (fully enclosed) TFT Color display, TFT |
| Lifespan | 40,000 h (Service life of back-lighting) |
| Rated control supply voltage | 24 V DC (UAUX, -20 %/+25 %) 24 V DC (UPOW, -20 %/+25 %) |
| Luminance intensity | 250 cd/m² |
| Number of colors of the display | 65536 |
| RoHs conformity | Yes |
| Touch technology | Resistive touch Glass with film touch sensor Touch sensor (glass with foil), Resistive touch protective screen |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of online/runtime languages | 100 |
| Number of password levels | 200 |
| Number of pixels (horizontal) | 640 |
| Number of pixels (vertical) | 480 |
| Number of system buttons | 1 |
| Screen size (diagonal) | 8.4 in |
| Permissible voltage | 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 35 V DC (for a duration of < 100 ms) 18.0 - 31.2 V DC, absolute with ripple |
| Rated operational voltage | 14.5 V (± 3 % - SmartWire-DT) 24 V DC (power-supply - safety extra low voltage) |
| Current consumption | 0.6 A, continuous current, Power Supply, 24 V DC |
| Supply current | 0.7 A, Imax, SmartWire-DT supply 3 A, Imax, Supply voltage UAux |
| Addressing | Address set automatically |
| Station | SmartWire-DT master, SmartWire-DT network |
| Number of SmartWire-DT slaves | 58 |
