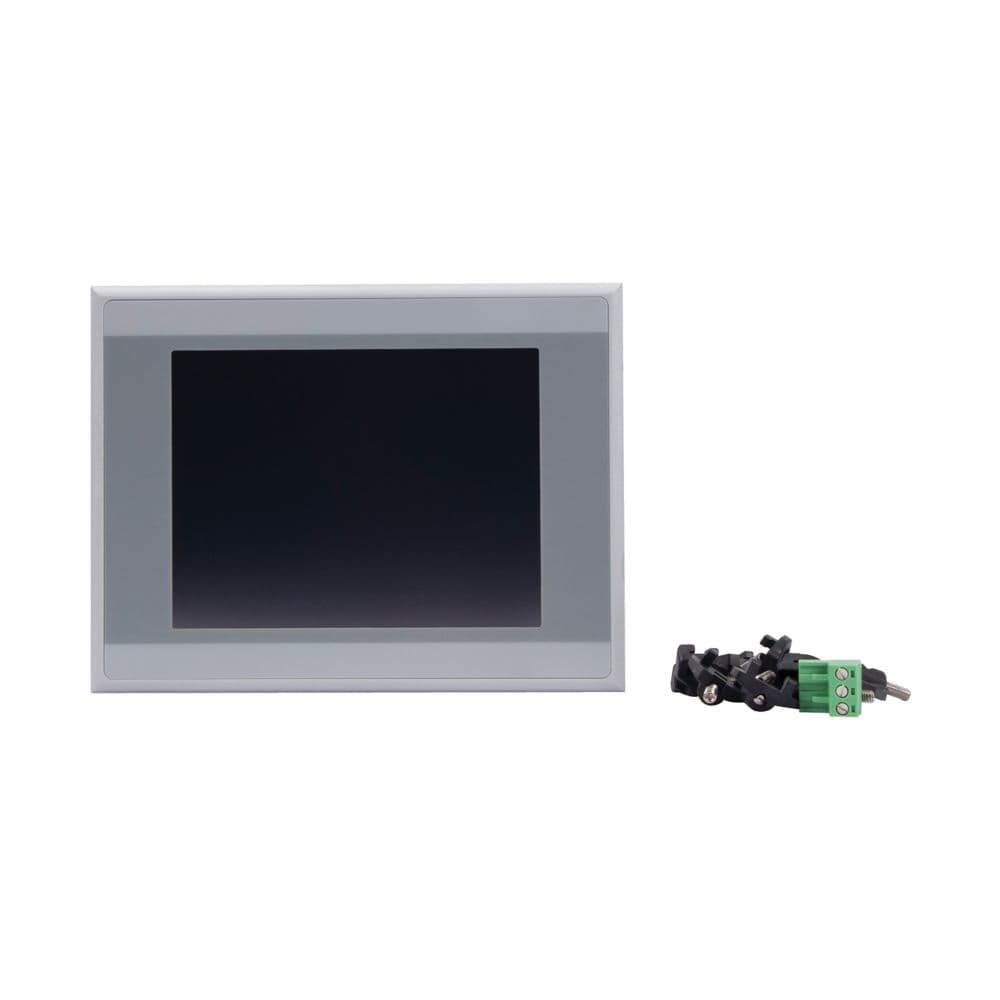

Eaton XV-102 Touch panel

Name: Eaton XV-102 Touch panel
Brand: Eaton
SKU: 150620

رقم القطعة: 150620

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XV-102 Touch panel

المواصفات

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	0 °C
Functions	Additional software components, loadable Process value representation (output) possible Process default value (input) possible
Product Name	Eaton XV-102 Touch panel
Catalog Number	150620
Model Code	XV-102-D4-57TVR-10
EAN	7640130097063
Product Length/Depth	170 mm
Product Height	39 mm
Product Width	130 mm
Product Weight	0.54 kg
Certifications	CUL508 UL 60950 IEC/EN 61000-6-2 Certified by UL for use in Canada CSA File No.: UL report applies to both US and Canada CSA Class No.: none UL UL Category Control No.: NRAQ IEC/EN 61131-2, CE EN 50178 EN 60950 IEC/EN 61000-6-4 DNV GL cULus UL508 IEC/EN 61131-2 UL File No.: E205091 EAC
Source URL	https://www.eaton.com/gb/en-gb/skuPage.150620.html
Features	USB device Fanless CPU and system cooling, natural convection-based passive cooling Slot for SD card UL508, cUL approvals Ethernet interface USB Host Portrait format
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20 IP20, rear
Enclosure material	Plastic
Built-in depth	34 mm
Mounting method	Flush mounting Flush mounting - Inclination from vertical: ±45° (if using natural convection) Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Model	Insulating enclosure and front plate
Fitted with:	1 x Ethernet 10/100 Mbps (built-in interfaces) Color display 1 x USB host 2.0 (built-in interface) 1 x RS485 (built-in interface) Numeric keyboard Message system (incl. buffer and confirmation) SW interfaces Message indication Alpha numeric keyboard Printer output 1 x RS232 (built-in interface) 1 x USB device (built-in interface) Recipes
Shock resistance	Mechanical, According to IEC/EN 60068-2-27
Vibration resistance	According to IEC/EN 60068-2-6
Operating temperature - max	50 °C
Operating temperature - min	0 °C
Equipment heat dissipation, current-dependent Pvid	9.5 W
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Rated operational current for specified heat dissipation (In)	0 A
Static heat dissipation, non-current-dependent Pvs	9.5 W
Product category	HMI-PLC (SPS function, retrofittable)
Degree of protection (front side)	IP65 NEMA 4X
Voltage type	DC
Power consumption	Max. 10 W 2.5 W (USB Slave to USB Host) 9.5 W total 7 W
Explosion safety category for dust	ATEX dust-ex-protection, in relation to CE ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
Memory capacity	64,000 kByte
Memory	128 MByte internal NAND-Flash (can be used for data backup) 64 MByte internal DRAM (OS, Program and data memory) 32 kByte internal NVRAM (retained data) SD Memory Card Slot: SDA Specification 1.00 (External)
Protocol	TCP/IP EtherNet/IP Other bus systems MODBUS
Fuse type	Built-in fuse (not accessible)
Air pressure	795 - 1080 hPa (operation)
Battery runtime	Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Number of HW-interfaces (industrial ethernet)	1
Number of HW-interfaces (other)	0
Number of HW-interfaces (parallel)	0
Number of HW-interfaces (RS-232)	1
Number of HW-interfaces (RS-422)	0
Number of HW-interfaces (RS-485)	1
Number of HW-interfaces (USB)	2
Number of HW-interfaces (wireless)	0
Number of interfaces (PROFINET)	0
Protection against polarity reversal	Yes Yes, for supply voltage (Siemens MPI optional)
Processor	RISC CPU, 32 Bit, 400 MHz
Supply voltage at AC, 50 Hz - max	0 VAC
Supply voltage at AC, 50 Hz - min	0 VAC
Supply voltage at AC, 60 Hz - max	0 VAC
Supply voltage at AC, 60 Hz - min	0 VAC
Supply voltage at DC - max	28.8 VDC
Supply voltage at DC - min	20.4 VDC
Interfaces	Ethernet (100Base-TX/10Base-T) USB 2.0 device (not galvanically isolated) USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated)
Potential isolation	Supply voltage UAUX: no Power supply: no
Voltage dips	5 ms from undervoltage (19.2 V DC) ≤ 10 ms from rated voltage (24 V DC)
Width of the front	170 mm
Resolution	640 x 480 pxVGA
Backup time	10 years, typ. (time at zero voltage)
Front height	130 mm
Number of buttons (programmable function)	0
Number of buttons with LED	0
Number of grey-scales/blue-scales of display	0
Operating system	Windows CE 5.0 (license included)
Software	XSOFT-CODESYS-2, Visualization software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering GALILEO, Visualization software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering XSOFT-CODESYS-3, Visualization software, Engineering EPAM, Visualization software, Engineering
Display contrast ratio	300:1
Number of slots	1 (for SD-Card)
Display lighting	LED Dimmable via software
Display type	Standard front with standard membrane (fully enclosed) Color display, TFT TFT
Lifespan	40,000 h (Service life of back-lighting)
Rated control supply voltage	24 V DC (UAUX, -20 %/+25 %) 24 V DC (UPOW, -20 %/+25 %)
Luminance intensity	250 cd/m²
Number of colors of the display	65536
RoHs conformity	Yes
Touch technology	Resistive touch Glass with film touch sensor Touch sensor (glass with foil), Resistive touch protective screen
Number of HW-interfaces (serial TTY)	0
Number of online/runtime languages	100
Number of password levels	200
Number of pixels (horizontal)	640
Number of pixels (vertical)	480
Number of system buttons	1
Screen size (diagonal)	5.7 in
Permissible voltage	19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 35 V DC (for a duration of < 100 ms) 18.0 - 31.2 V DC, absolute with ripple
Rated operational voltage	24 V DC (power-supply - safety extra low voltage)
