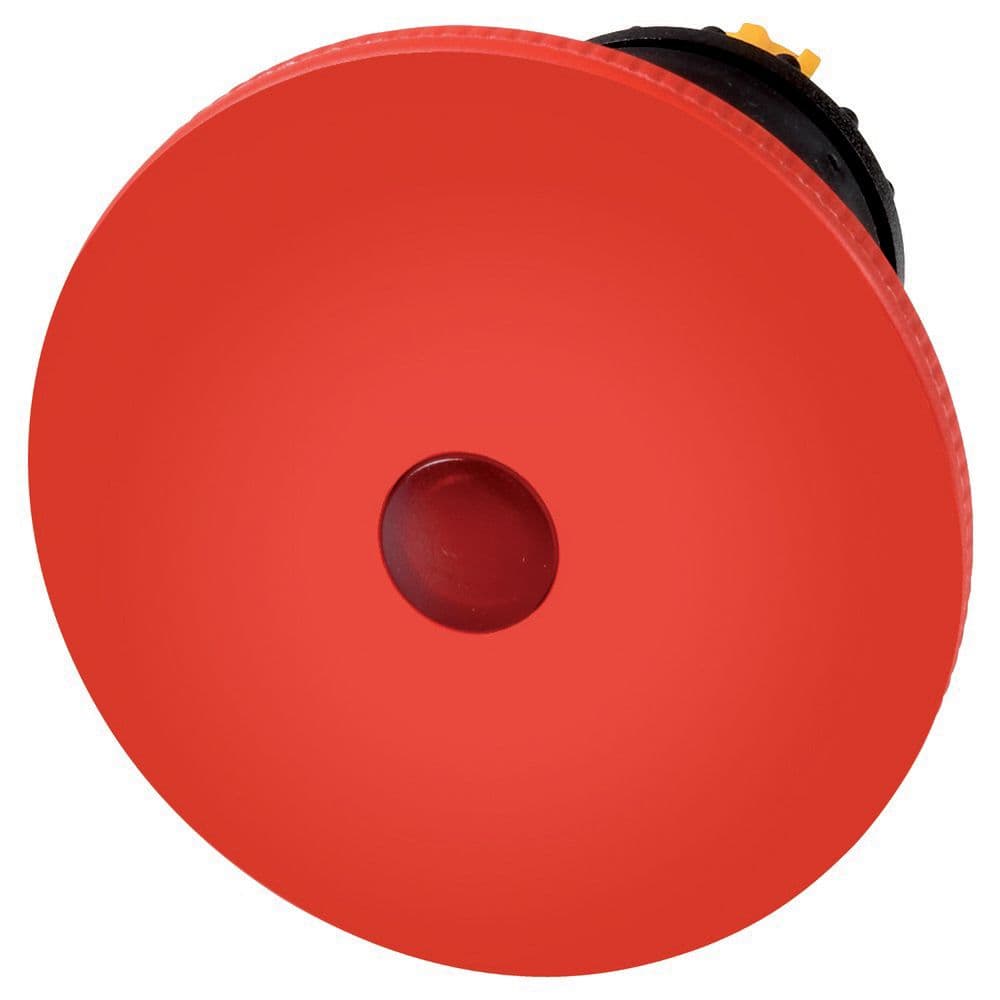

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Eaton

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

رقم القطعة: 152861

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

المواصفات

Product NameEaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Catalog Number152861
Model CodeM22-PVL60P
EAN4015081496396
Product Length/Depth67 mm
Product Height60 mm
Product Width60 mm
Product Weight0.051 kg
CertificationsVDE 0660 IEC/EN 60947 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.152861.html
Catalog NotesMax. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
Actuator functionPull-to-release Switching function latching
Actuator colorRed
DesignPalm-tree shaped Classical
Actuating force50 N
Actuator diameter60 mm
IlluminationIlluminated with LED element
Unlocking methodPull-release
