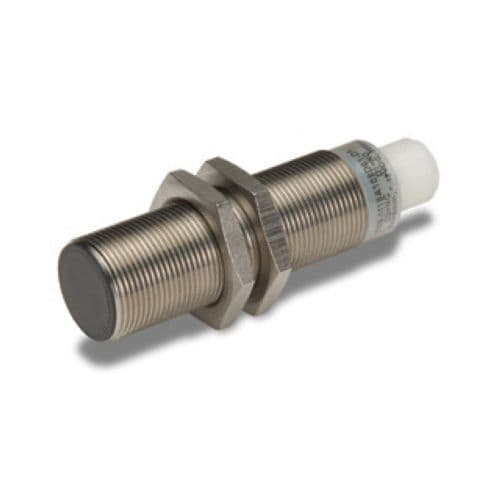

Eaton E59 AccuProx analog inductive proximity sensor

Name: Eaton E59 AccuProx analog inductive proximity sensor
Brand: Eaton
SKU: 166805

رقم القطعة: 166805

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton E59 AccuProx analog inductive proximity sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Product Name	Eaton E59 AccuProx analog inductive proximity sensor
Catalog Number	166805
Model Code	E59-A18A107D01-C1
EAN	4015081643646
Product Length/Depth	152.4 mm
Product Height	44.45 mm
Product Width	127 mm
Product Weight	0.45 kg
Certifications	CSA Class No.: 3211-03 CSA File No.: 50513 IEC/EN 60947-5-2 UL Category Control No.: NRKH, NRKH7 UL File No.: E166051 CSA-C22.2 No. 14 UL 508 CSA CE UL
Source URL	https://www.eaton.com/gb/en-gb/skuPage.166805.html
Type	Inductive sensor
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Other
Product category	E59 AccuProx Series
Connection type	3-wire/4-wire Plug-in connection M12 x 1
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED
Switch function type	Other
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	15 V
Sensor length	69.3 mm
Voltage rating - max	30 V
Switching frequency	200 Hz
Switching output type	Analog
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	0
Output current at protected output - max	20 mA
Diameter sensor	18 mm
Supply voltage - max	30 V
Supply voltage - min	15 V
Installation type	Concise
Output current	4 - 20 mA
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	2 %
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	7 mm
Rated switching distance (Sn) - min	1 mm
