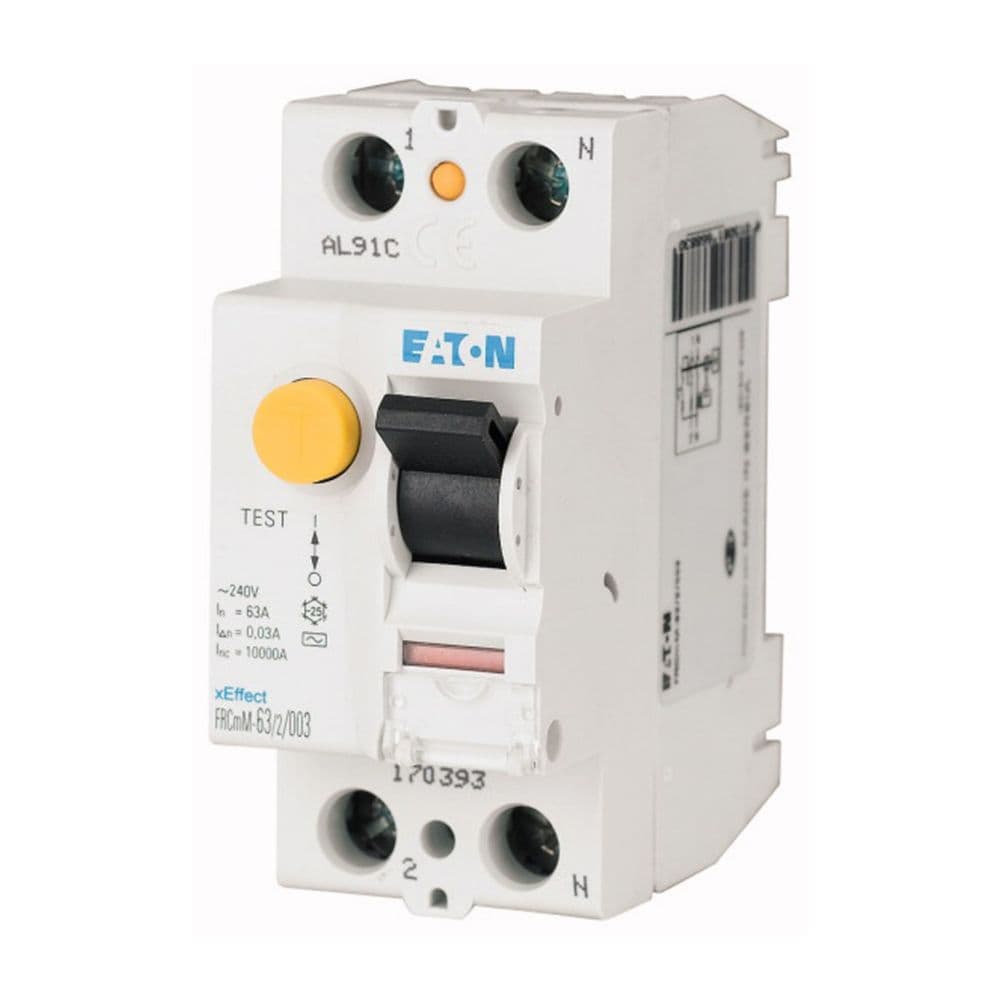

Eaton Moeller series xEffect - FRCmM-NA RCCB

Eaton

Eaton Moeller series xEffect - FRCmM-NA RCCB

رقم القطعة: 167693

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM-NA RCCB

المواصفات

FunctionsShort-time delayed tripping
Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °CThe maximum operating current of back-up fuse must not exceed the residual current circuit breaker's rated operational current
Product NameEaton Moeller series xEffect - FRCmM-NA RCCB
Catalog Number167693
Model CodeFRCMM-25/2/003-G/A-NA-110
EAN4015081642359
Product Length/Depth76 mm
Product Height80 mm
Product Width35 mm
Product Weight0.22 kg
CompliancesRoHS conform
CertificationsUL 1053 IEC/EN 61008 ÖVE E 8601 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.167693.html
Catalog NotesAdditionally protects against special forms of residual pulsating DC which have not been smoothed.
Used withFRCmM-NA-110 Residual current circuit breakers Type G/A (ÖVE E 8601)
FeaturesResidual current circuit breaker Additional equipment possible
Fitted with:Interlocking device
