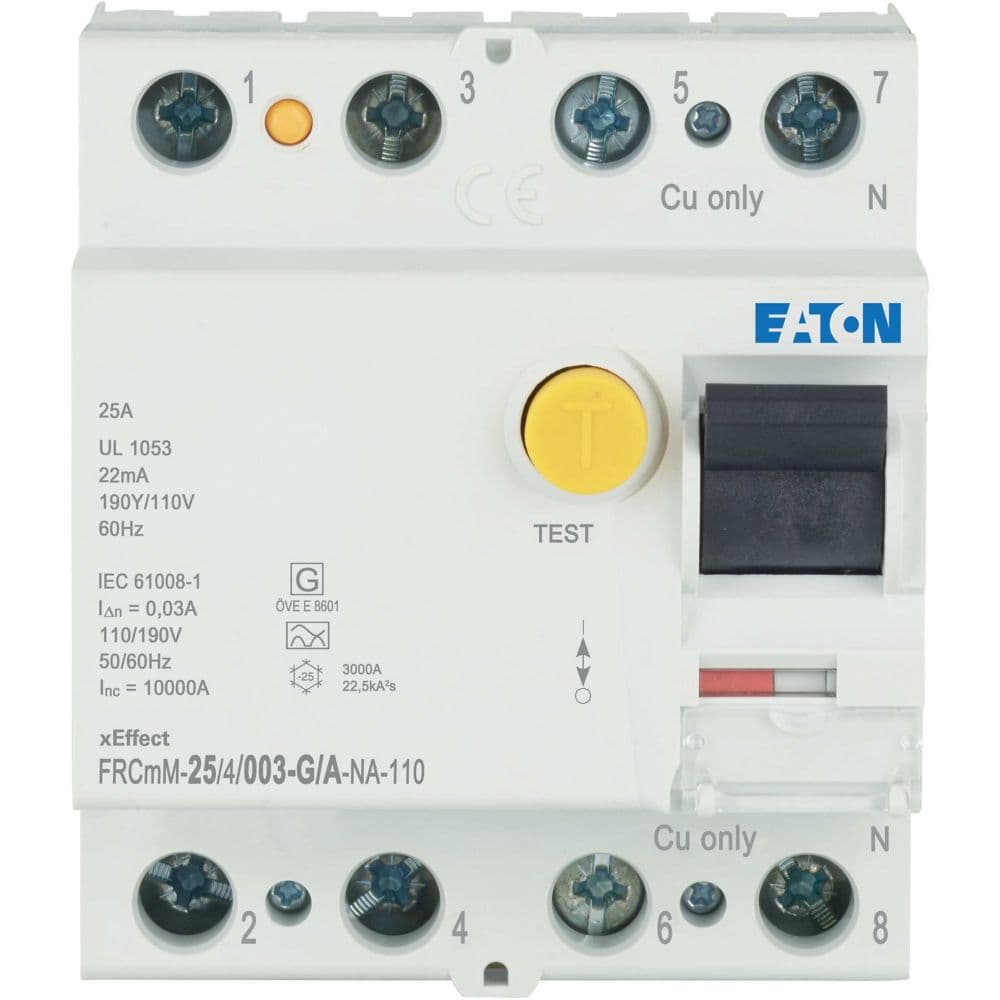

Eaton Moeller series xEffect - FRCmM-NA RCCB

Eaton

Eaton Moeller series xEffect - FRCmM-NA RCCB

رقم القطعة: 167705

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM-NA RCCB

المواصفات

FunctionsShort-time delayed tripping
Special featuresFRCmM-NA-110Residual current circuit breakersType G/A (ÖVE E 8601)
Product NameEaton Moeller series xEffect - FRCmM-NA RCCB
Catalog Number167705
Model CodeFRCMM-25/4/003-G/A-NA-110
EAN4015081642465
Product Length/Depth76 mm
Product Height80 mm
Product Width35 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsUL 1053 IEC/EN 61008 ÖVE E 8601 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.167705.html
Catalog NotesAdditionally protects against special forms of residual pulsating DC which have not been smoothed.
Used withResidual current circuit breakers FRCmM-NA-110 Type G/A (�VE E 8601)
FeaturesResidual current circuit breaker Additional equipment possible
Fitted with:Interlocking device
