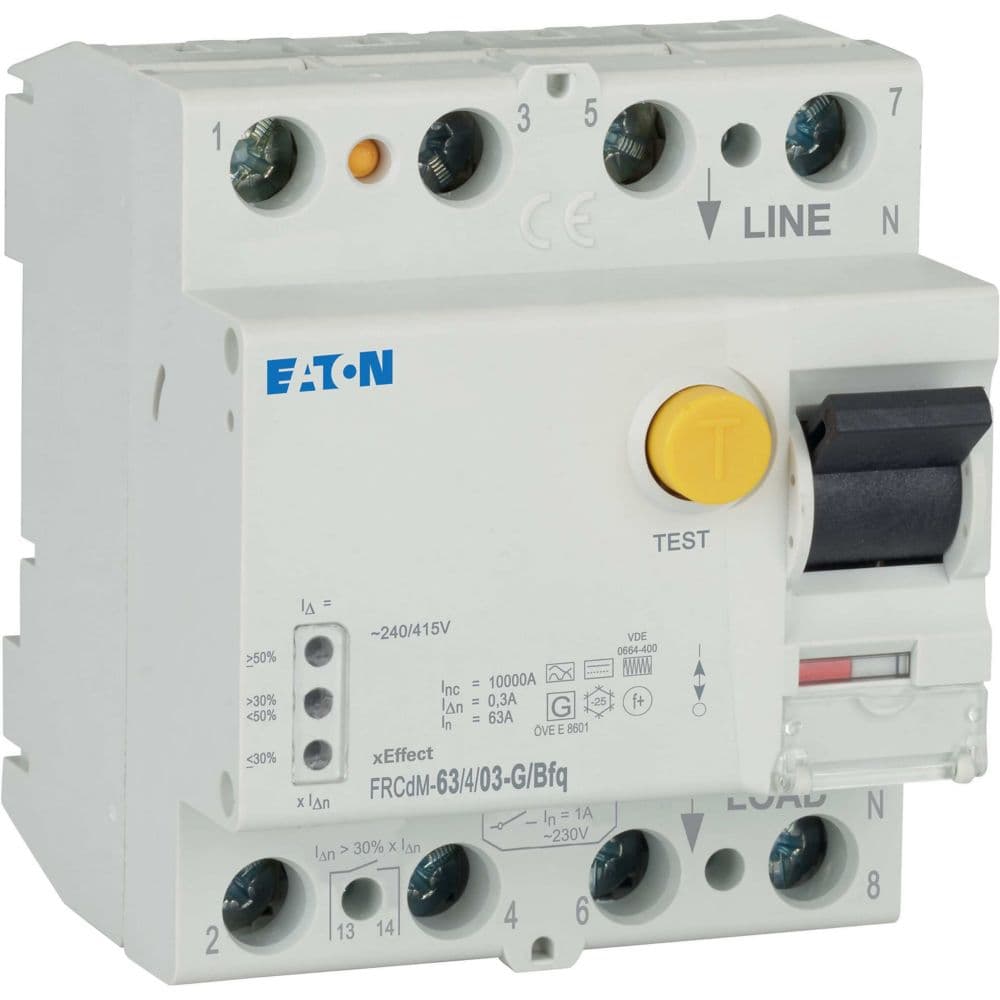

Eaton Moeller series xEffect - FRCdM Type B, B+, Bfq RCCB

Eaton

Eaton Moeller series xEffect - FRCdM Type B, B+, Bfq RCCB

رقم القطعة: 167906

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCdM Type B, B+, Bfq RCCB

المواصفات

FunctionsShort-time delayed tripping
Special featuresCurrent test marks as per inscriptionDry auxiliary contact: > 100,000 electrical switching operations per minute at 2 A 30 VDC resistive loadDry auxiliary contact: > 5 x 100,000 electrical switching operations per minute at 1 A 30 VDC resistive loadMaximum operating temperature is 60 °C in accordance with the de-rating table
Product NameEaton Moeller series xEffect - FRCdM Type B, B+, Bfq RCCB
Catalog Number167906
Model CodeFRCDM-63/4/03-G/BFQ
EAN4015081644810
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsIEC/EN 61008 IEC/EN 62423 EN45545-2 IEC 61373 ÖVE E 8601
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.167906.html
Used withResidual current circuit-breakers, digital FRCdM Type G/Bfq (ÖVE E 8601)
FeaturesResidual current circuit-breakers, digital Additional equipment possible Selective protection
Fitted with:Interlocking device
