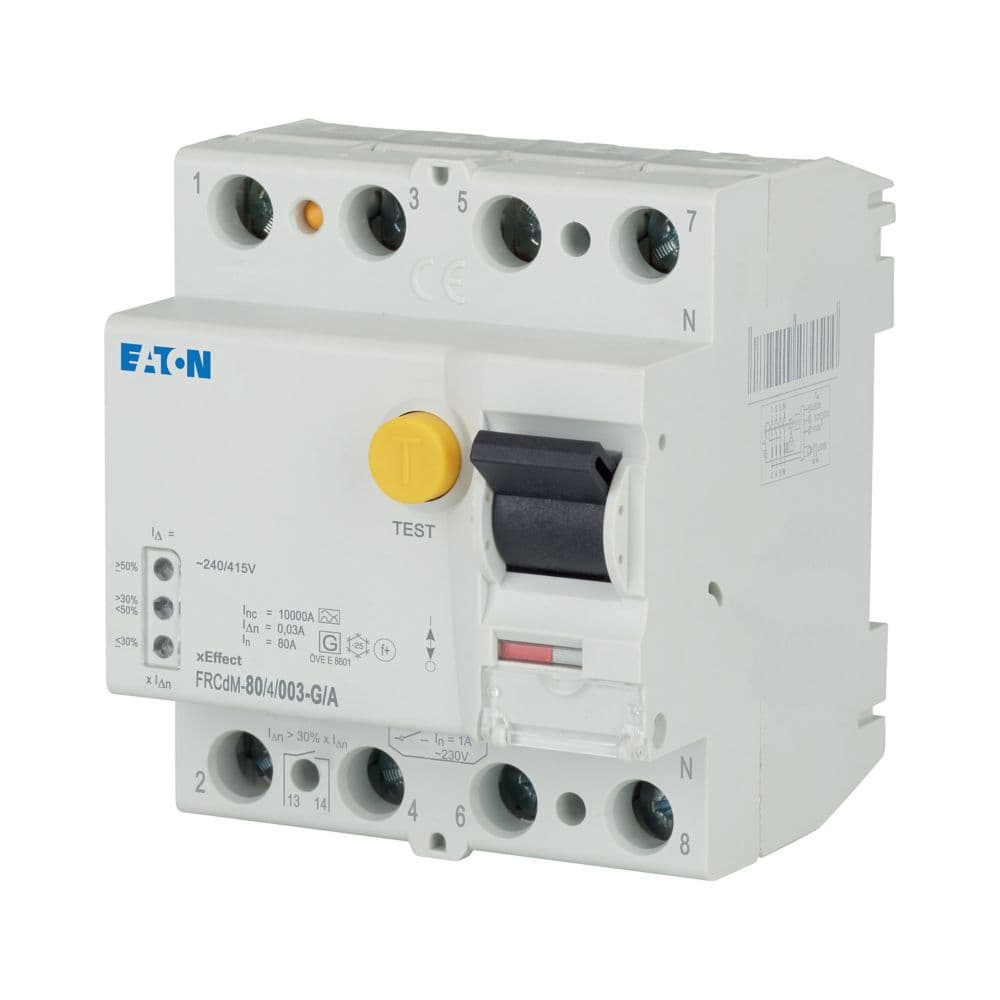

Eaton Moeller series xEffect - FRCdM Type AC, A, U, R RCCB

Eaton

Eaton Moeller series xEffect - FRCdM Type AC, A, U, R RCCB

رقم القطعة: 168634

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCdM Type AC, A, U, R RCCB

المواصفات

FunctionsShort-time delayed tripping
Special featuresCurrent test marks as per inscriptionDry auxiliary contact: > 100,000 electrical switching operations per minute at 2 A 30 VDC resistive loadDry auxiliary contact: > 5 x 100,000 electrical switching operations per minute at 1 A 30 VDC resistive loadMaximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
Product NameEaton Moeller series xEffect - FRCdM Type AC, A, U, R RCCB
Catalog Number168634
Model CodeFRCDM-80/4/003-G/A
EAN4015081651221
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.32 kg
CompliancesRoHS conform
CertificationsÖVE E 8601 EN45545-2 IEC 61373 IEC/EN 61008
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.168634.html
Used withFRCdM Residual current circuit-breakers, digital Type G/A (ÖVE E 8601)
FeaturesResidual current circuit-breakers, digital Additional equipment possible Selective protection
Fitted with:Interlocking device
