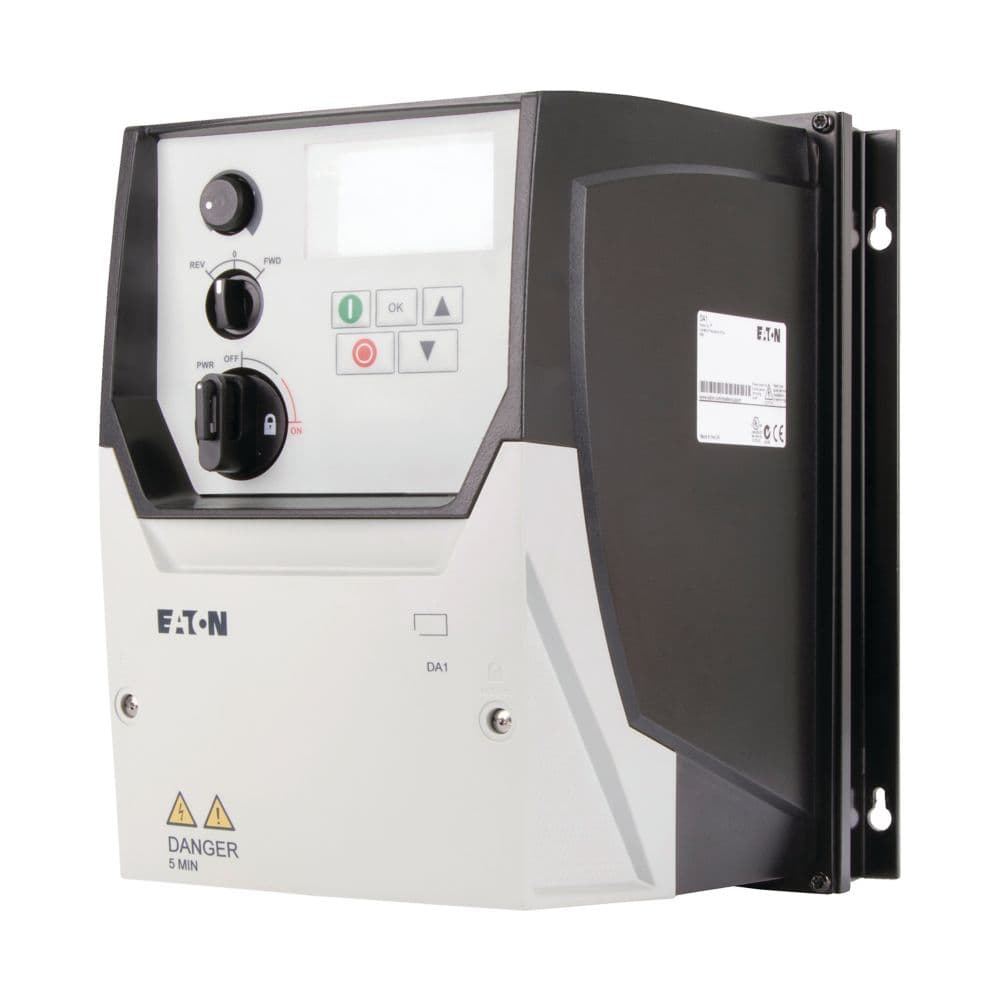

Eaton DA1 Variable frequency drive

Eaton

Eaton DA1 Variable frequency drive

رقم القطعة: 169352

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DA1 Variable frequency drive

المواصفات

Product NameEaton DA1 Variable frequency drive
Catalog Number169352
Model CodeDA1-12011FB-B6SC
EAN4015081658015
Product Length/Depth239.3 mm
Product Height257 mm
Product Width188 mm
Product Weight4.8 kg
CertificationsUL 508C IEC/EN61800-5 RoHS, ISO 9001 Safety: EN 61800-5-1: 2003 CSA-C22.2 No. 14 IEC/EN61800-3 CUL RCM UL EAC Certified by UL for use in Canada Specification for general requirements: IEC/EN 61800-2 UL File No.: E172143 UL Category Control No.: NMMS, NMMS7 IEC/EN 61800-3 CE UL report applies to both US and Canada UkrSEPRO
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.169352.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 230 V4.18 kVA
Apparent power at 240 V4.36 kVA
