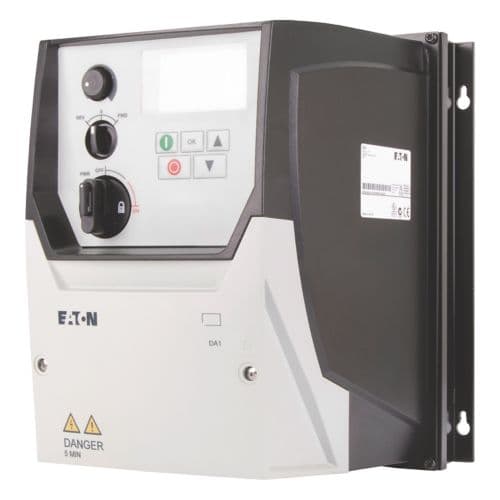

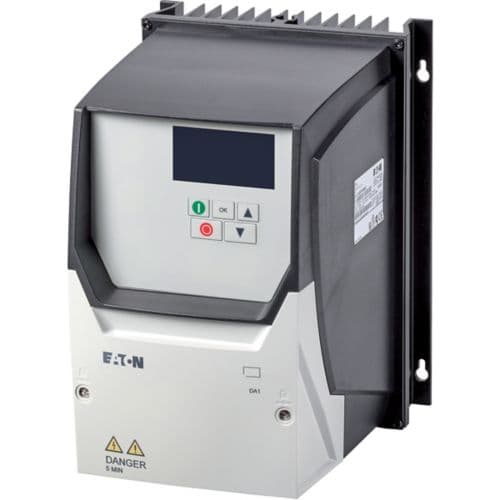

Eaton DA1 Variable frequency drive

Eaton

Eaton DA1 Variable frequency drive

رقم القطعة: 169383

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DA1 Variable frequency drive

المواصفات

Product NameEaton DA1 Variable frequency drive
Catalog Number169383
Model CodeDA1-345D8FB-B6SC
EAN4015081658275
Product Length/Depth239.3 mm
Product Height257 mm
Product Width188 mm
Product Weight4.8 kg
CertificationsRoHS, ISO 9001 Certified by UL for use in Canada CUL IEC/EN61800-3 Safety: EN 61800-5-1: 2003 UL UL File No.: E172143 UL Category Control No.: NMMS, NMMS7 EAC UkrSEPRO UL 508C IEC/EN 61800-3 IEC/EN61800-5 RCM Specification for general requirements: IEC/EN 61800-2 CE CSA-C22.2 No. 14 UL report applies to both US and Canada
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.169383.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 400 V4.02 kVA
Apparent power at 480 V4.82 kVA
