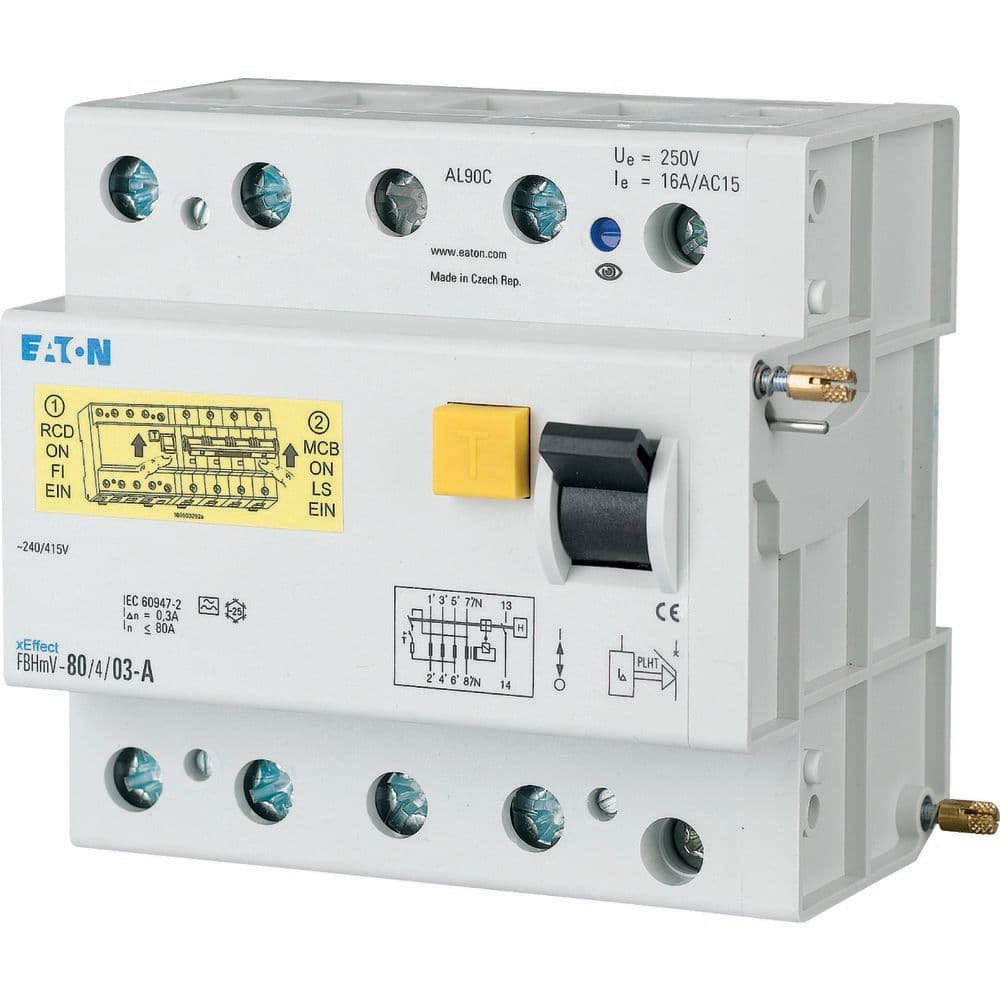

Eaton Moeller series xEffect - FBHmV RCCB add-on unit

Name: Eaton Moeller series xEffect - FBHmV RCCB add-on unit
Brand: Eaton
SKU: 170131

رقم القطعة: 170131

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FBHmV RCCB add-on unit

المواصفات

Ambient operating temperature - max	40 °C
Ambient operating temperature - min	-25 °C
Climatic proofing	25-55 °C / 90-95% relative humidity according to IEC 60068-2
Special features	Add-on residual current protection unitFBHmVType A
Product Name	Eaton Moeller series xEffect - FBHmV RCCB add-on unit
Catalog Number	170131
Model Code	FBHMV-80/4/03-A
EAN	4015081666324
Product Length/Depth	94.5 mm
Product Height	80 mm
Product Width	90 mm
Product Weight	0.489 kg
Compliances	RoHS conform
Certifications	EN45545-2 IEC 61373 IEC/EN 60947-2
Source URL	https://www.eaton.com/gb/en-gb/skuPage.170131.html
Used with	Add-on residual current protection unit Type A FBHmV
Features	Additional equipment possible Add-on residual current protection unit
Type	Ambient temperature hint: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20, IP40 with suitable enclosure IP20
Built-in depth	70 mm
Width in number of modular spacings	5.5
Mounting method	DIN rail Screwed onto AZ 2-, 3-, 4-pole; Z-BHASA
Fitted with:	Interlocking device
Number of poles	Four-pole
Amperage Rating	80 A
Rated operational voltage (Ue) - max	415 V
Rated operational current for specified heat dissipation (In)	80 A
Frequency rating	50 Hz
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Frame	45 mm
Rated impulse withstand voltage (Uimp)	4 kV
Lifespan, mechanical	10000 operations
Lifespan, electrical	1500 operations
Connectable conductor cross section (multi-wired) - max	50 mm²
Connectable conductor cross section (multi-wired) - min	2.5 mm²
Connectable conductor cross section (solid-core) - max	50 mm²
Connectable conductor cross section (solid-core) - min	2.5 mm²
Voltage rating - max	415 V
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	7 W
Application	Switchgear for industrial and advanced commercial applicationsxEffect - Switchgear for industrial and advanced commercial applications
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Terminal protection	Finger and hand touch safe, DGUV VS3, EN 50274
Voltage rating - min	240 V
Surge current capacity	0.25 kA
Fault current rating	300 mA
Impulse withstand current	Partly surge-proof 250 A
Leakage current type	A
Sensitivity type	Pulse-current sensitive
Rated short-time withstand current (Icw)	10 kA 0 kA
Built-in width (number of units)	95 mm (5.5 SU)
Terminals (top and bottom)	Lift terminals
Permitted storage and transport temperature - max	60 °C
Permitted storage and transport temperature - min	-35 °C
Rated fault current - max	0.3 A
Rated fault current - min	0.3 A
Tripping time	Non-delayed
Rated short-circuit strength	Same as connected AZ
