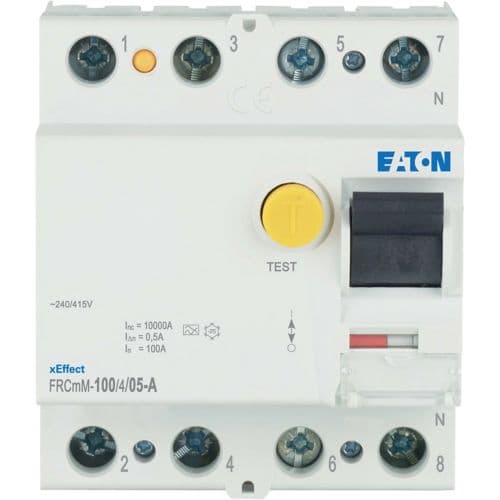

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

Eaton

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

رقم القطعة: 170350

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
Product NameEaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB
Catalog Number170350
Model CodeFRCMM-80/4/05-A
EAN4015081668441
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.356 kg
CompliancesRoHS conform
CertificationsIEC/EN 61008 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.170350.html
Used withType A FRCmM Residual current circuit breakers
FeaturesAdditional equipment possible Residual current circuit breaker
Fitted with:Interlocking device
