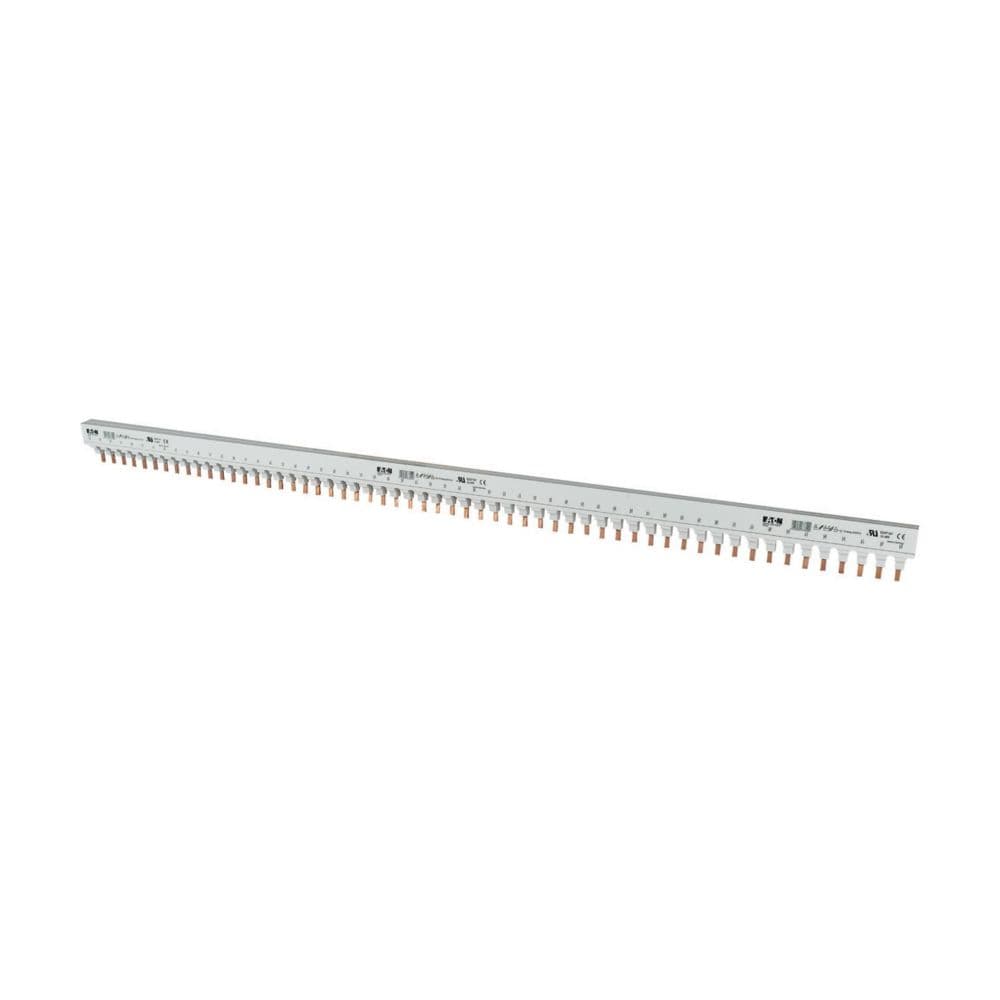

Eaton Moeller series busbar

Eaton

Eaton Moeller series busbar

رقم القطعة: 171130

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series busbar

المواصفات

Ambient operating temperature - max100 °C
Ambient operating temperature - min-5 °C
FunctionsBusbar
Product NameEaton Moeller series busbar
Catalog Number171130
Model CodeZ-BB/UL18/3P1MU/57
EAN4015081676200
Product Length/Depth1009.8 mm
Product Height56.8 mm
Product Width19.3 mm
Product Weight1.051 kg
CompliancesRoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.171130.html
FeaturesInsulated Can be cut to size
TypeBusbarZ-BB/UL
ColorOther
Accessory/spare part typeBusbar for miniature circuit breaker
Electric connection typePin
Number of polesThree-pole
Rated operational voltage (Ue) - max600 V
Rated uninterrupted current (Iu)80 A
Cross section18 mm²
Heat dissipation per pole, current-dependent0 W
ApplicationSwitchgear for industrial and advanced commercial applications
Static heat dissipation, non-current-dependent0 W
Heat dissipation capacity0 W
Rated surge voltage10 KV
Suitable for number of devices0
Number of modular spacings1
Number of phases3
Pitch dimensions17.6 mm
