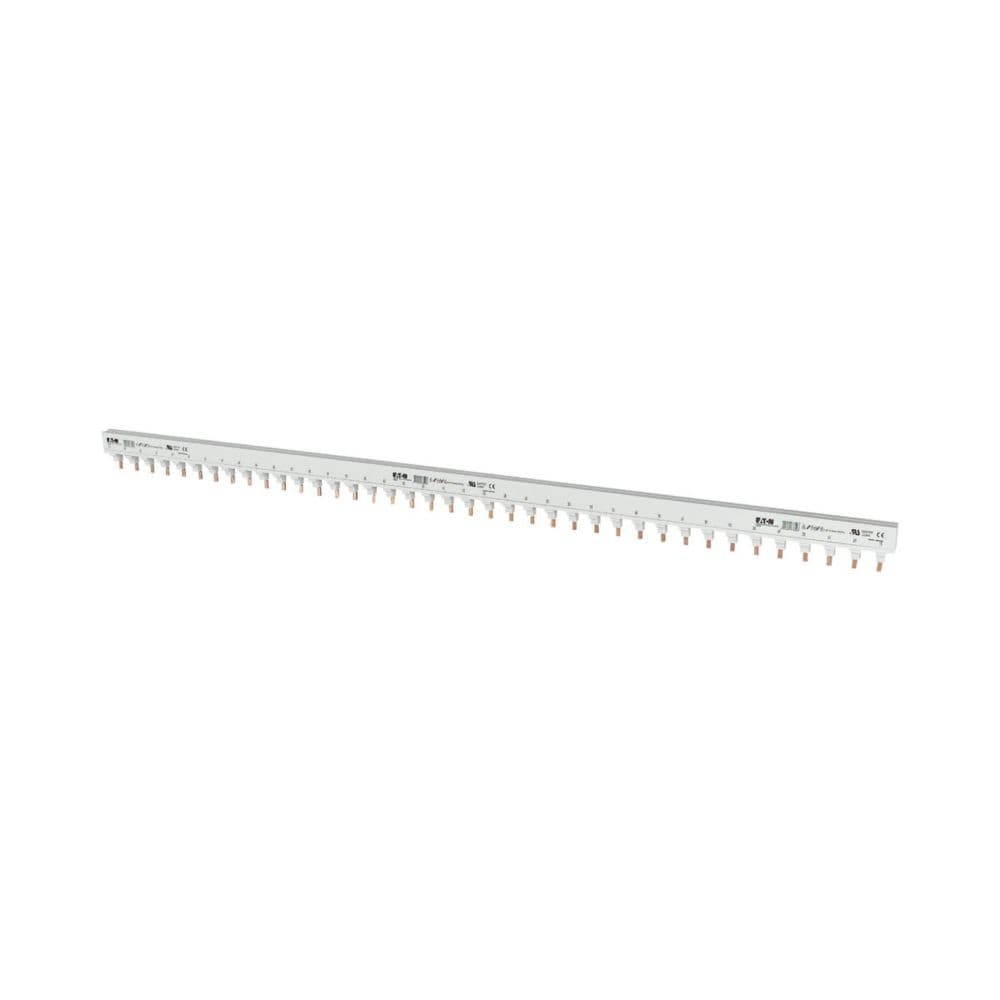

Eaton Moeller series busbar

Eaton

Eaton Moeller series busbar

رقم القطعة: 171143

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series busbar

المواصفات

Ambient operating temperature - max100 °C
Ambient operating temperature - min-5 °C
FunctionsBusbar
Product NameEaton Moeller series busbar
Catalog Number171143
Model CodeZ-BB/UL25/2X1P1MU+AUX/38
EAN4015081676361
Product Length/Depth1001 mm
Product Height56.8 mm
Product Width19.3 mm
Product Weight0.886 kg
CompliancesRoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.171143.html
Suitable forDevices with auxiliary switch
Used withBusbar Z-BB/UL
FeaturesInsulated Can be cut to size
TypeBusbarZ-BB/UL
ColorOther
Accessory/spare part typeBusbar for miniature circuit breaker
Electric connection typePin
Number of polesTwo-pole
Rated operational voltage (Ue) - max600 V
Rated uninterrupted current (Iu)100 A
Cross section25 mm²
Heat dissipation per pole, current-dependent0 W
ApplicationSwitchgear for industrial and advanced commercial applications
Static heat dissipation, non-current-dependent0 W
Heat dissipation capacity0 W
Rated surge voltage10 KV
Suitable for number of devices0
Number of modular spacings1
Number of phases2
Pitch dimensions26.4 mm
