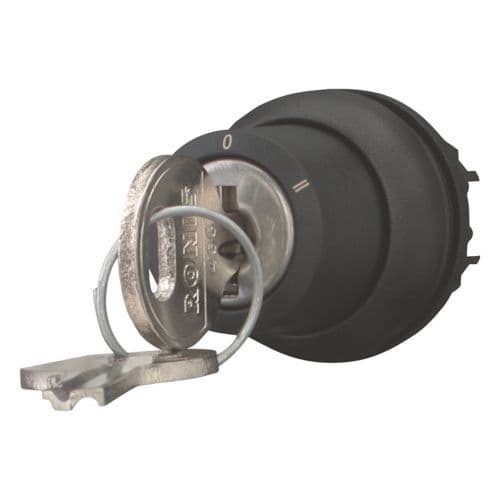

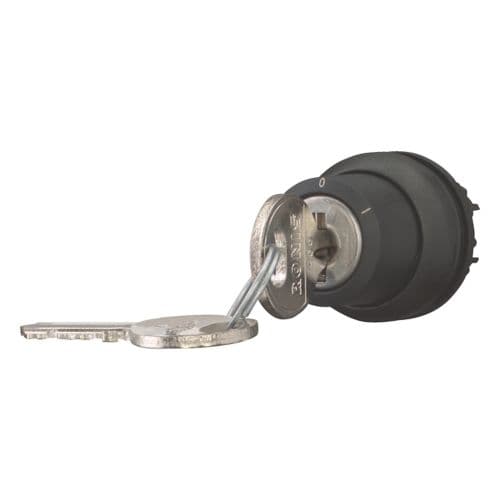

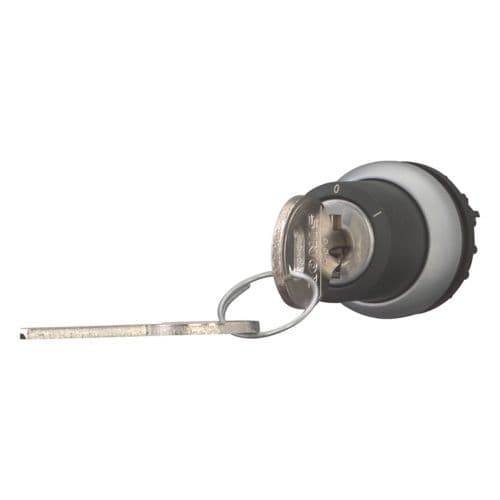

Eaton Moeller® series M22 key-operated actuator

Name: Eaton Moeller® series M22 key-operated actuator
Brand: Eaton
SKU: 171154

رقم القطعة: 171154

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 key-operated actuator

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 key-operated actuator
Catalog Number	171154
Model Code	M22S-WRS3-RS
EAN	4015081676446
Product Length/Depth	48 mm
Product Height	59 mm
Product Width	46 mm
Product Weight	0.037 kg
Certifications	CSA File No.: 012528 IEC/EN 60947-5 UL File No.: E29184 CSA-C22.2 No. 94-91 VDE 0660 CE CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CSA Class No.: 3211-03 IEC/EN 60947 UL 508 CSA UL DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.171154.html
Actuator function	Maintained Key withdrawable in position 2 Key withdrawable in position 0 Switching function latching Key withdrawable in position 1
Actuator type	Key
Number of switch positions	3
Actuator color	Black
Fitted with:	Front ring Plunger bridge for the middle contact
Design	Key operated Classical
Bezel color	Black
Bezel material	Plastic
Indicator color	Other
Lens type	Round
Key code	Ronis 455
