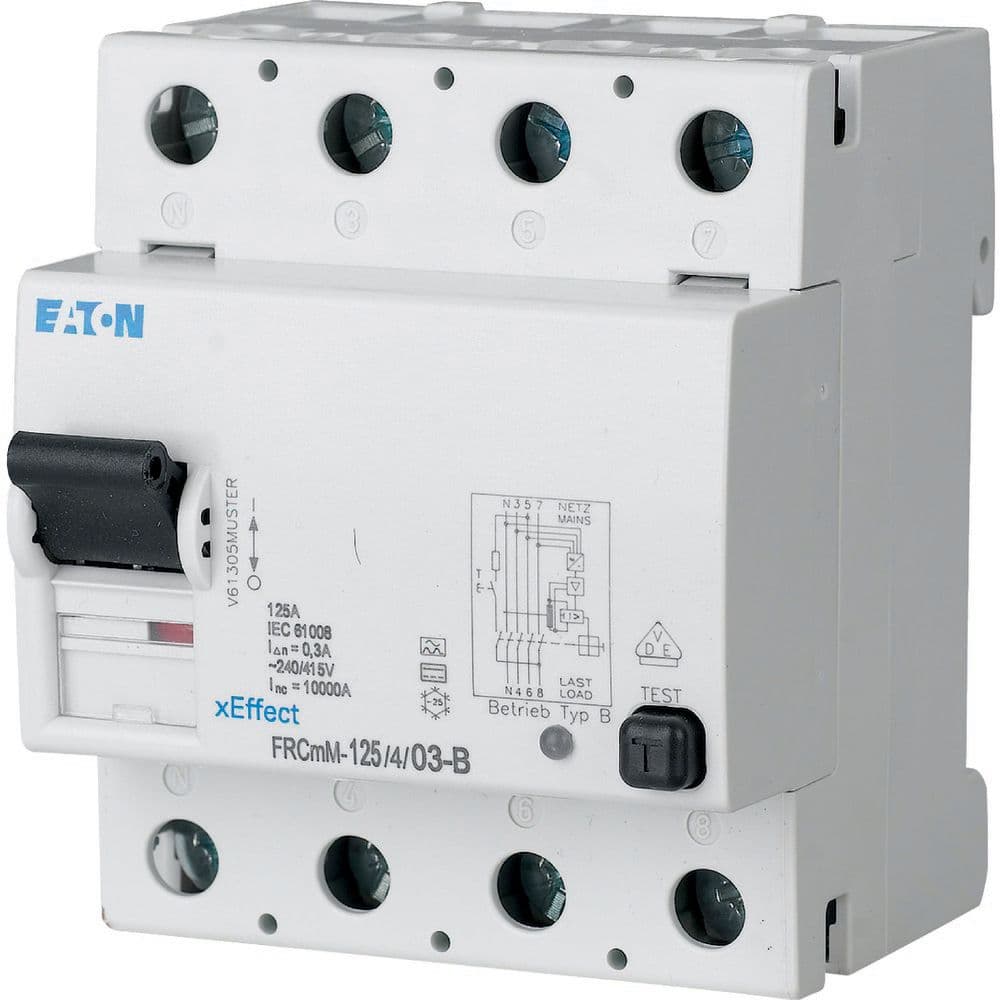

Eaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB

Eaton

Eaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB

رقم القطعة: 171187

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.2% for every 1 °C
Product NameEaton Moeller series xEffect - FRCmM-125 Type B, Bfq and B+ RCCB
Catalog Number171187
Model CodeFRCMM-125/4/05-B
EAN4015081676729
Product Length/Depth76 mm
Product Height80 mm
Product Width70 mm
Product Weight0.5 kg
CompliancesRoHS conform
CertificationsIEC/EN 61008 IEC/EN 62423
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.171187.html
Used withFRCmM-125 Residual current circuit breakers Type B
FeaturesResidual current circuit breaker Additional equipment possible
Fitted with:Interlocking device
