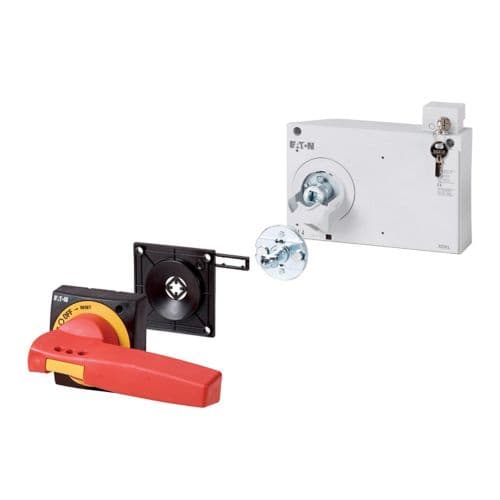

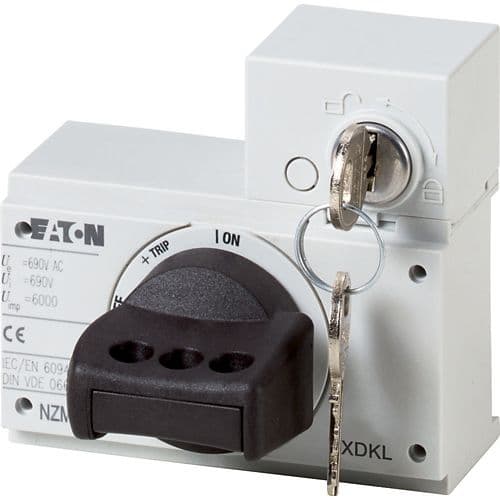

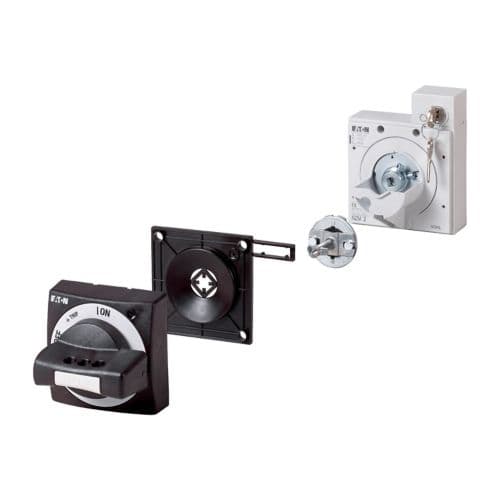

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 172530

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresDoor coupling rotary handle for operating the switch through a closed control panel doorExternal warning plate/designation label can be clipped on.Complete including rotary drive and coupling partsExtension shaft additionally required.obtainable in two lengths
Product NameEaton Moeller series NZM operating element
Catalog Number172530
Model CodeNZM2-XTVDKL
EAN4015081690763
Product Length/Depth125 mm
Product Height135 mm
Product Width225 mm
Product Weight0.787 kg
CompliancesUL/CSA IEC RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.172530.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM2(-4), PN2(-4), N(S)2(-4)
FeaturesLockable Standard: black / gray With key lock
TypeDoor coupling rotary handle
FrameNZM2
