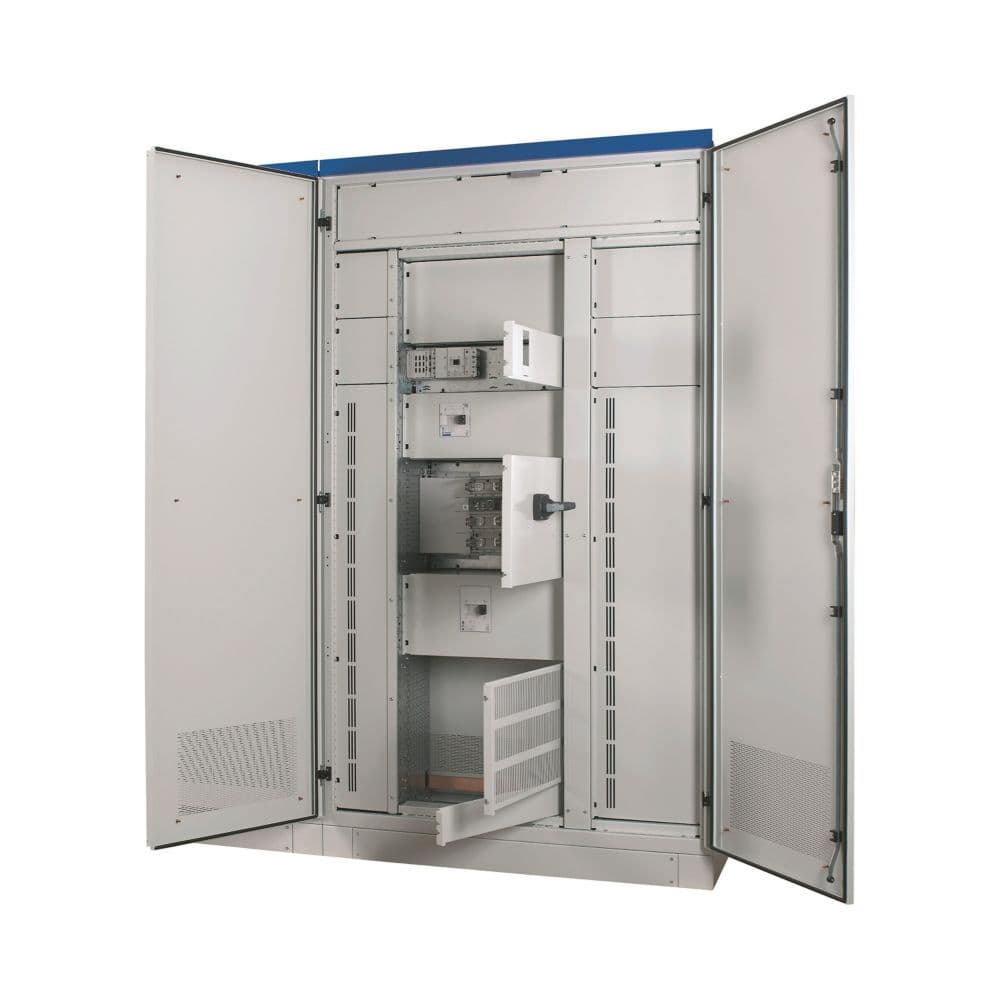

Eaton xEnergy Light LV systems LV switchgear

Name: Eaton xEnergy Light LV systems LV switchgear
Brand: Eaton
SKU: 174270

رقم القطعة: 174270

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton xEnergy Light LV systems LV switchgear

المواصفات

RAL-number	7035
Product Name	Eaton xEnergy Light LV systems LV switchgear
Catalog Number	174270
Model Code	XLB06504
EAN	4015081707324
Product Length/Depth	376 mm
Product Height	240 mm
Product Width	651 mm
Product Weight	14.6 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.174270.html
Suitable for	Metrical mounting
Features	Mounting plate depth-adjustable EMC-version Connectable
Protection class	I
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	Meets the product standard's requirements.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Not applicable.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation	Not relevant to indoor installations.
10.2.5 Lifting	Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact	IK10
10.2.7 Inscriptions	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Is the panel builder's responsibility.
10.5 Protection against electric shock	< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components	Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Ui = 690 V AC
10.9.3 Impulse withstand voltage	6 kV
10.9.4 Testing of enclosures made of insulating material	Does not apply to metal enclosures.
Surface finishing	Powder coating
Degree of protection	IK10 Other
Color	Gray
Mounting method	Wall fastening
Material	Steel
Material quality	Other
Pollution degree	3
Overvoltage category	IV
Number of connector holes	0
Permissible load of the mounting plate according to IEC 62208 - max	4000 N
Number of locks	0
Installation type	Floor standing wall model
Number of covers/doors	0
Permissible load of the enclosure according to IEC 62208 - max	5000 N
Permissible load of the door(s) according to IEC 62208 - max	1000 N
