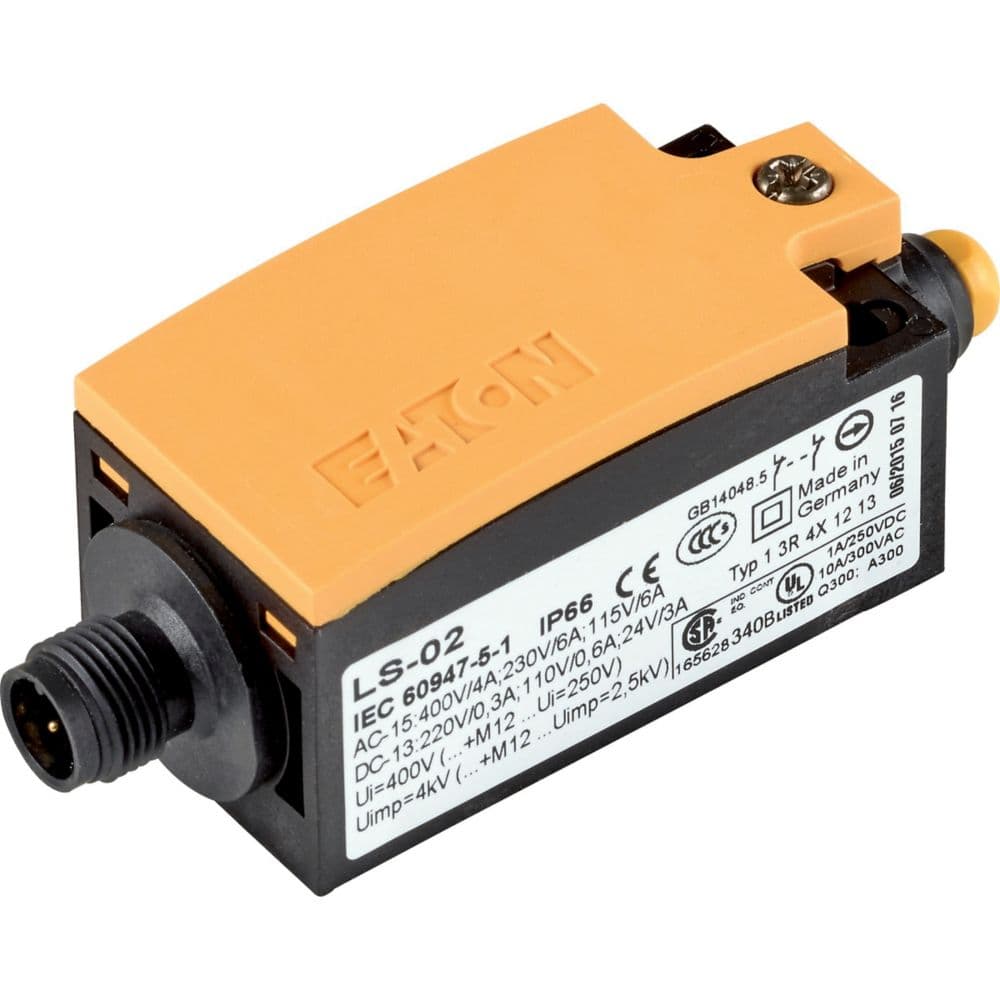

Eaton Moeller® series LS Position switch

Eaton

Eaton Moeller® series LS Position switch

رقم القطعة: 178133

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series LS Position switch

المواصفات

Product NameEaton Moeller® series LS Position switch
Catalog Number178133
Model CodeLS-20-M12A
EAN4015081734566
Product Length/Depth33.5 mm
Product Height91.5 mm
Product Width31 mm
Product Weight0.059 kg
CertificationsIEC/EN 60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.178133.html
Catalog NotesUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
Actuator typePlunger
Actuating torque of rotary drives0.2 Nm
Operating speedMax. 1/0.5 m/s (with DIN cam, mechanical actuation) For angle of actuation α = 0°/30°
