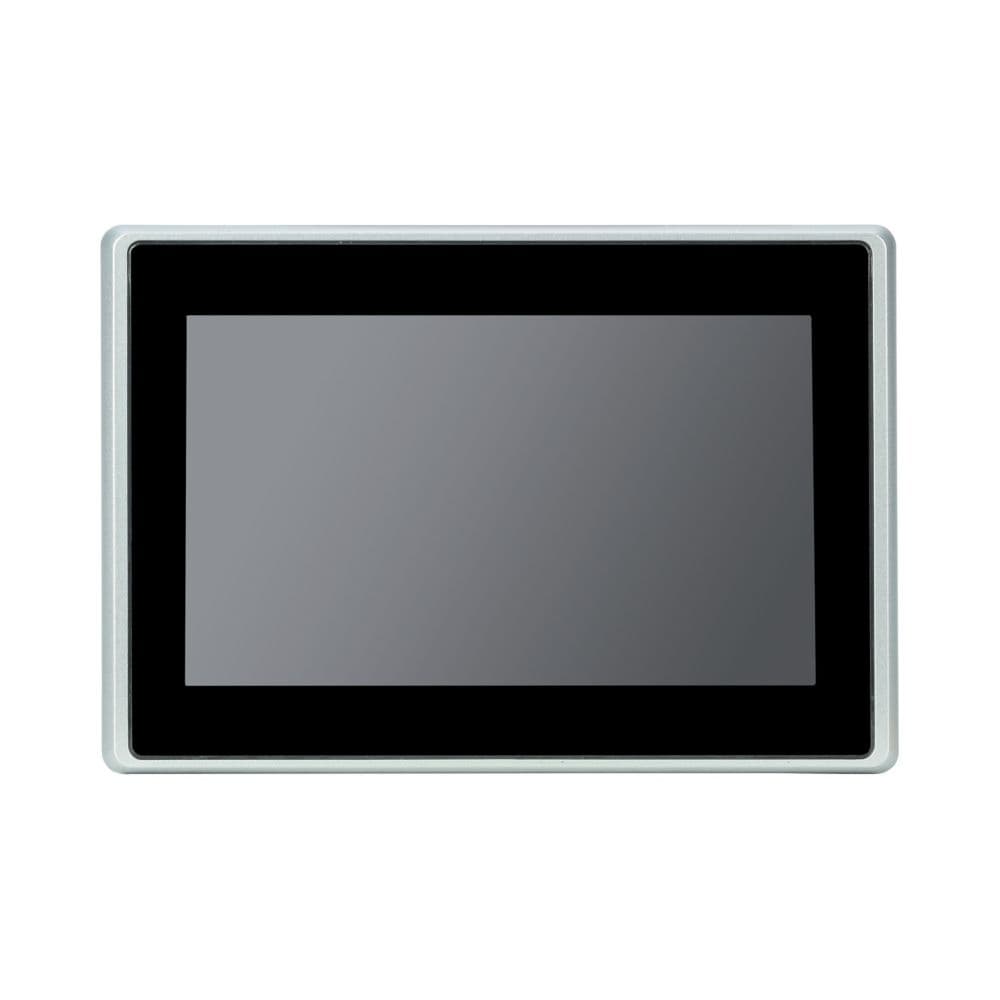

Eaton XV-303 Touch panel
رقم القطعة: 179650
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton XV-303 Touch panel
المواصفات
| Ambient operating temperature - max | 50 °C |
|---|---|
| Ambient operating temperature - min | 0 °C |
| Ambient storage temperature - max | 60 °C |
| Ambient storage temperature - min | -20 °C |
| Climatic proofing | Dry heat to IEC 60068-2-2 Damp heat, constant, to IEC 60068-2-3 Cold to EN 60068-2-1 |
| Functions | Process default value (input) possible Process value representation (output) possible Additional software components, loadable |
| Product Name | Eaton XV-303 Touch panel |
| Catalog Number | 179650 |
| Model Code | XV-303-70-C00-A00-1C |
| EAN | 7640130098664 |
| Product Length/Depth | 196 mm |
| Product Height | 51 mm |
| Product Width | 135 mm |
| Product Weight | 0.78 kg |
| Certifications | UL File No.: E205091 EN 50178 UL Certified by UL for use in Canada DNV GL EMC according to 2014/30/EU CE IEC/EN 61131-2 CUL UL 61010-2-201 |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.179650.html |
| Features | Integrated Runtime visualization software license Portrait format CAN Ethernet interface Slot for SD card USB Host Fanless CPU and system cooling, natural convection-based passive cooling USB device RS232 RS485 Target and web visualization Operating System Windows Embedded Compact 7 pro |
| Type | Control panel with PLC and 2nd Ethernet port |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Degree of protection | NEMA 12 NEMA 4X IP20, rear (according to EN 60529-1) |
| Enclosure material | Insulated material |
| Built-in depth | 43.1 mm |
| Mounting method | Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting Flush mounting - Inclination from vertical: ±45° (if using natural convection) |
| Model | Plastic enclosure and glass panel in plastic frame |
| Fitted with: | Message indication SW interfaces 1 x USB device (built-in interface) Message system (incl. buffer and confirmation) Printer output 1 x RS232 (built-in interface) 1 x USB host 2.0 (built-in interface) Color display 1 x RS485 (built-in interface) 2 x Ethernet 10/100 Mbps (built-in interface) Recipes 1 x CANopen®/easyNet (built-in interfaces) |
| Shock resistance | 15 g, 11 ms, Mechanical |
| Vibration resistance | 5 - 9 Hz, ± 3.5 mm 9 - 60 Hz, ± 0.15 mm 60 - 150 Hz, ± 2 g |
| Operating temperature - max | 50 °C |
| Operating temperature - min | 0 °C |
| Equipment heat dissipation, current-dependent Pvid | 14.4 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 14.4 W |
| Product category | HMI-PLC (integrated SPS function) |
| Degree of protection (front side) | NEMA 12 IP65 |
| Voltage type | DC |
| Power consumption | Max. 14.4 W 14 W typ. 11.9 W |
| Memory capacity | 512,000 kByte |
| Memory | DRAM: 512 MByte RAM NVRAM: 128kByte Retain Flash: 1 GByte SLC SD card, Type: SDSC, SDHC (external memory) |
| Relative humidity | 10 - 95 % (non-condensing) |
| Environmental conditions | Condensation: Non-condensing |
| Protocol | TCP/IP MODBUS CAN EtherNet/IP EtherCAT |
| Fuse type | Built-in fuse (not accessible) |
| Air pressure | 795 - 1080 hPa (operation) |
| Battery runtime | Back-up of real-time clock: BR 2330, non-replaceable (soldered) |
| Number of HW-interfaces (industrial ethernet) | 2 |
| Number of HW-interfaces (other) | 1 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 1 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 1 |
| Number of HW-interfaces (USB) | 2 |
| Number of HW-interfaces (wireless) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Emitted interference | According to IEC/EN 61000-6-4 |
| Interference immunity | According to EN 61000-6-2 |
| Protection against polarity reversal | Yes, for supply voltage (Siemens MPI optional) |
| Processor | ARM Cortex-A9 800 MHz |
| Supply voltage at AC, 50 Hz - max | 0 VAC |
| Supply voltage at AC, 50 Hz - min | 0 VAC |
| Supply voltage at AC, 60 Hz - max | 0 VAC |
| Supply voltage at AC, 60 Hz - min | 0 VAC |
| Supply voltage at DC - max | 30 VDC |
| Supply voltage at DC - min | 19.2 VDC |
| Interfaces | USB 2.0 device (not galvanically isolated) CAN (not galvanically isolated, 9-pin SUB-D plug, UNC) USB 2.0 host (not galvanically isolated) RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC) RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC) 10/100 Mbps Ethernet connection |
| Potential isolation | Power supply: no |
| Voltage dips | ≤ 10 ms from rated voltage (24 V DC) 5 ms from undervoltage (19.2 V DC) |
| Width of the front | 196 mm |
| Resolution | 1024 x 600 pxWSVGA |
| Display size | 153.6 x 90.0 mm 16:9 |
| Backup time | 10 years, typ. (time at zero voltage) |
| Front height | 135 mm |
| Number of buttons (programmable function) | 0 |
| Number of buttons with LED | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Operating system | Windows Embedded Compact 7 Pro |
| Software | GALILEO, Visualization software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering XSOFT-CODESYS, Visualization software, Engineering |
| Display contrast ratio | 850:1 |
| Number of slots | 1 (for SD-Card) |
| Display lighting | LED Dimmable via software |
| Display type | Anti-glare tempered glass in plastic bezel Color display, TFT, anti-glare TFT |
| Lifespan | 50,000 h (Service life of back-lighting) |
| Luminance intensity | 400 cd/m² |
| Number of colors of the display | 16777216 |
| RoHs conformity | Yes |
| Touch technology | Capacitive multitouch Multi-touch touch panel touch sensor Projected Capacitive Touch (PCT) |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of online/runtime languages | 100 |
| Number of password levels | 200 |
| Number of pixels (horizontal) | 1024 |
| Number of pixels (vertical) | 600 |
| Number of system buttons | 1 |
| Screen size (diagonal) | 7 in |
| Permissible voltage | 18.0 - 31.2 V DC, absolute with ripple 35 V DC (for a duration of < 100 ms) 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) |
| Rated operational voltage | 24 V DC (power-supply - safety extra low voltage) |
