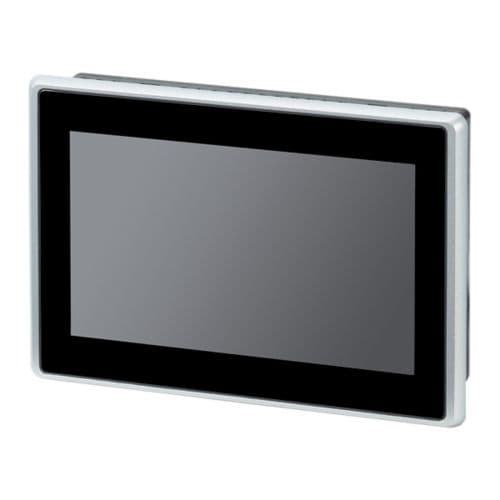

Eaton XV-303 Touch panel
رقم القطعة: 179656
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton XV-303 Touch panel
المواصفات
| Ambient operating temperature - max | 50 °C |
|---|---|
| Ambient operating temperature - min | 0 °C |
| Ambient storage temperature - max | 60 °C |
| Ambient storage temperature - min | -20 °C |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-3 Dry heat to IEC 60068-2-2 Cold to EN 60068-2-1 |
| Functions | Process value representation (output) possible Process default value (input) possible SmartWire-DT coordination Additional software components, loadable |
| Product Name | Eaton XV-303 Touch panel |
| Catalog Number | 179656 |
| Model Code | XV-303-70-CE0-A00-1C |
| EAN | 7640130098701 |
| Product Length/Depth | 196 mm |
| Product Height | 51 mm |
| Product Width | 135 mm |
| Product Weight | 0.84 kg |
| Certifications | EN 50178 UL 61010-2-201 CE DNV GL IEC/EN 61131-2 CUL EMC according to 2014/30/EU UL UL File No.: E205091 Certified by UL for use in Canada |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.179656.html |
| Features | USB device RS232 Slot for SD card Target and web visualization Integrated Runtime visualization software license Fanless CPU and system cooling, natural convection-based passive cooling USB Host Overload proof RS485 Operating System Windows Embedded Compact 7 pro Portrait format Ethernet interface CAN |
| Type | Control panel with PLC as a SmartWire-DT coordinator and 2nd Ethernet port |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Degree of protection | IP20, rear (according to EN 60529-1) NEMA 12 NEMA 4X |
| Enclosure material | Insulated material |
| Built-in depth | 43.1 mm |
| Mounting method | Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting - Inclination from vertical: ±45° (if using natural convection) Flush mounting |
| Model | Plastic enclosure and glass panel in plastic frame |
| Fitted with: | 1 x USB device (built-in interface) 1 x CANopen®/easyNet (built-in interfaces) 1 x USB host 2.0 (built-in interface) 2 x Ethernet 10/100 Mbps (built-in interface) 1 x RS485 (built-in interface) 1 x SmartWire-DT (built-in interface) SW interfaces Message indication Message system (incl. buffer and confirmation) Recipes Printer output 1 x RS232 (built-in interface) Color display |
| Shock resistance | 15 g, 11 ms, Mechanical |
| Vibration resistance | 60 - 150 Hz, ± 2 g 5 - 9 Hz, ± 3.5 mm 9 - 60 Hz, ± 0.15 mm |
| Operating temperature - max | 50 °C |
| Operating temperature - min | 0 °C |
| Equipment heat dissipation, current-dependent Pvid | 14.4 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 14.4 W |
| Product category | SmartWire-DT coordinators |
| Connection to SmartWire-DT | Yes |
| Connection type | Push in terminals, Supply voltage SWD: Plug, 8-pole |
| Terminal capacity | 0.25 - 1.5 mm², flexible with ferrule 24 - 16 AWG, solid or stranded 0.2 - 1.5 mm², solid |
| Degree of protection (front side) | NEMA 12 IP65 |
| Voltage type | DC |
| Power consumption | 14 W typ. Max. 14.4 W 11.9 W |
| Rated operational current (Ie) | 0.7 A |
| Short-circuit protection | No, external fuse FAZ Z3, Supply voltage UAux Yes, Short-circuit rating, SmartWire-DT supply voltage |
| LED indicator | Status indication of SmartWire-DT network: Configurable green or red LED Status indication of SmartWire-DT master: Green and red LEDs Status indication of Supply voltage: LED |
| Connection | SmartWire-DT blade terminal SWD4-8MF2 |
| Memory capacity | 512,000 kByte |
| Memory | DRAM: 512 MByte RAM Flash: 1 GByte SLC SD card, Type: SDSC, SDHC (external memory) NVRAM: 128kByte Retain |
| Relative humidity | 10 - 95 % (non-condensing) |
| Environmental conditions | Condensation: Non-condensing |
| Protocol | TCP/IP Other bus systems EtherNet/IP CAN MODBUS EtherCAT |
| Fuse type | Built-in fuse (not accessible) |
| Air pressure | 795 - 1080 hPa (operation) |
| Battery runtime | Back-up of real-time clock: BR 2330, non-replaceable (soldered) |
| Number of HW-interfaces (industrial ethernet) | 2 |
| Number of HW-interfaces (other) | 2 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 1 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 1 |
| Number of HW-interfaces (USB) | 2 |
| Number of HW-interfaces (wireless) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Emitted interference | According to IEC/EN 61000-6-4 |
| Interference immunity | According to EN 61000-6-2 |
| Protection against polarity reversal | Yes, for supply voltage (Siemens MPI optional) Yes |
| Data transfer rate | 125 kBit/s, SmartWire-DT 250 kBit/s, SmartWire-DT |
| Residual ripple | ≤ 5 % (input voltage) |
| Inrush current | 12.5 A (for 6 ms) |
| Processor | ARM Cortex-A9 800 MHz |
| Repetition rate | 1 s |
| Supply voltage at AC, 50 Hz - max | 0 VAC |
| Supply voltage at AC, 50 Hz - min | 0 VAC |
| Supply voltage at AC, 60 Hz - max | 0 VAC |
| Supply voltage at AC, 60 Hz - min | 0 VAC |
| Supply voltage at DC - max | 30 VDC |
| Supply voltage at DC - min | 19.2 VDC |
| Interfaces | 10/100 Mbps Ethernet connection USB 2.0 device (not galvanically isolated) CAN (not galvanically isolated, 9-pin SUB-D plug, UNC) RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC) RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC) USB 2.0 host (not galvanically isolated) |
| Potential isolation | Supply voltage UAUX: no Between UPow and 15 V SmartWire-DT supply voltage: no Power supply: no |
| Voltage dips | 5 ms from undervoltage (19.2 V DC) ≤ 10 ms, Bridging voltage dips ≤ 10 ms from rated voltage (24 V DC) |
| Width of the front | 196 mm |
| Resolution | 1024 x 600 pxWSVGA |
| Display size | 153.6 x 90.0 mm 16:9 |
| Backup time | 10 years, typ. (time at zero voltage) |
| Front height | 135 mm |
| Number of buttons (programmable function) | 0 |
| Number of buttons with LED | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Operating system | Windows Embedded Compact 7 Pro |
| Software | XSOFT-CODESYS, Visualization software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering GALILEO, Visualization software, Engineering |
| Display contrast ratio | 850:1 |
| Number of slots | 1 (for SD-Card) |
| Display lighting | LED Dimmable via software |
| Display type | Anti-glare tempered glass in plastic bezel TFT Color display, TFT, anti-glare |
| Lifespan | 50,000 h (Service life of back-lighting) |
| Rated control supply voltage | 24 V DC (UAUX, -15 %/+20 %) 24 V DC (UPOW, -15 %/+20 %) |
| Luminance intensity | 400 cd/m² |
| Number of colors of the display | 16777216 |
| RoHs conformity | Yes |
| Touch technology | Projected Capacitive Touch (PCT) Capacitive multitouch Multi-touch touch panel touch sensor |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of online/runtime languages | 100 |
| Number of password levels | 200 |
| Number of pixels (horizontal) | 1024 |
| Number of pixels (vertical) | 600 |
| Number of system buttons | 1 |
| Screen size (diagonal) | 7 in |
| Permissible voltage | 35 V DC (for a duration of < 100 ms) 18.0 - 31.2 V DC, absolute with ripple 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) |
| Rated operational voltage | Typically UAUX -0.2 V (for 24 V DC slaves) 14.5 V (± 3 % - SmartWire-DT) 24 V DC (power-supply - safety extra low voltage) |
| Communication interface | SmartWire-DT master |
| Supply current | 0.7 A, Imax, SmartWire-DT supply If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply 3 A, Imax, Supply voltage UAux If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux |
| Addressing | Address set automatically |
| Station | SmartWire-DT master, SmartWire-DT network |
| Number of SmartWire-DT slaves | 99 |
