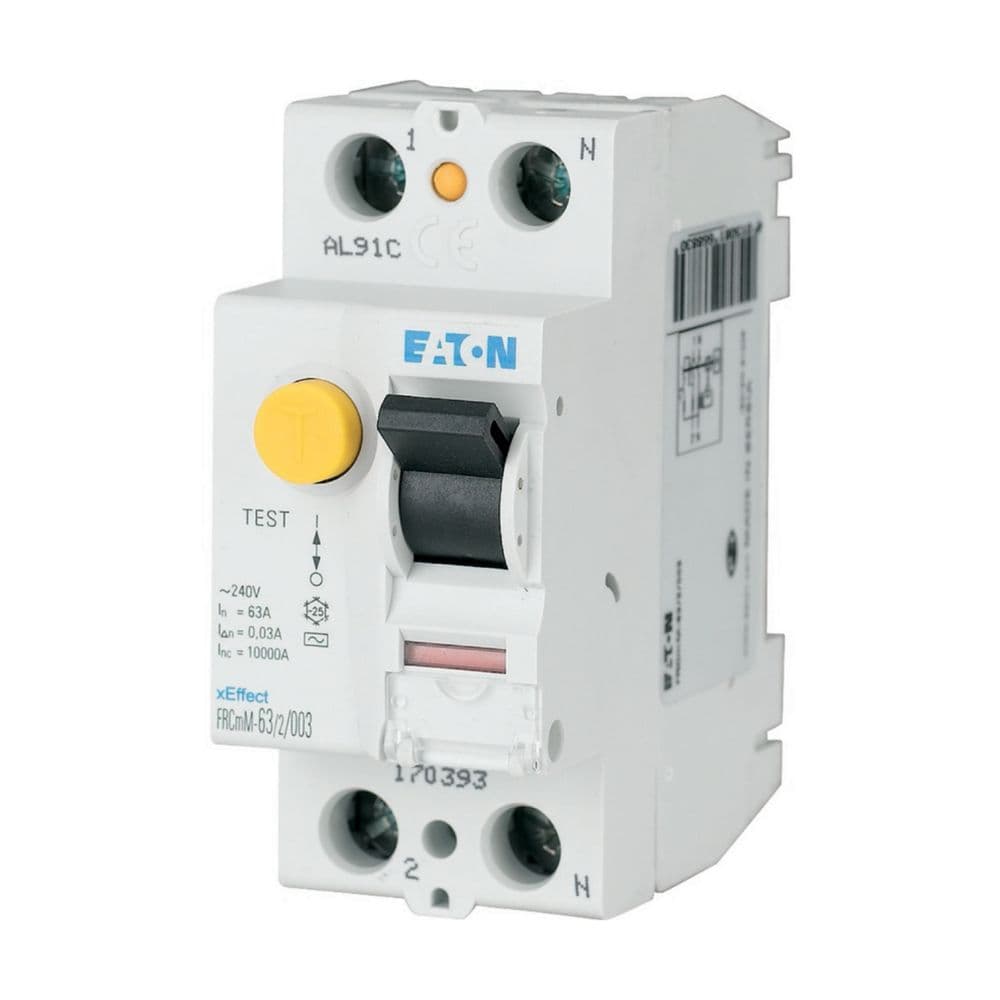

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

Eaton

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

رقم القطعة: 180610

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
Product NameEaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB
Catalog Number180610
Model CodeFRCMM-80/2/003-A-110
EAN4015081757756
Product Length/Depth76 mm
Product Height80 mm
Product Width35 mm
Product Weight0.202 kg
CompliancesRoHS conform
CertificationsIEC/EN 61008 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.180610.html
Used withResidual current circuit breakers Type A FRCmM
FeaturesResidual current circuit breaker Additional equipment possible
Fitted with:Interlocking device
