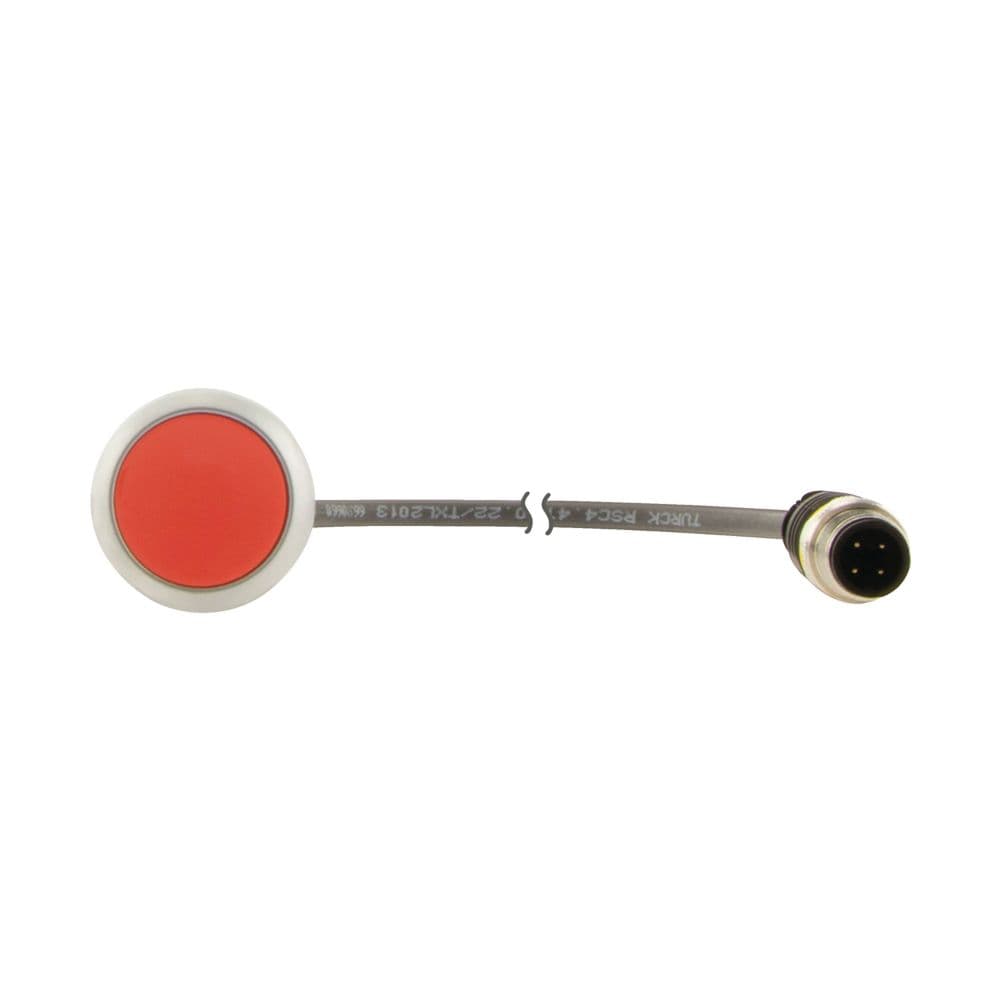

Eaton Moeller® series C22 Pushbutton

Eaton

Eaton Moeller® series C22 Pushbutton

رقم القطعة: 181043

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Pushbutton

المواصفات

Product NameEaton Moeller® series C22 Pushbutton
Catalog Number181043
Model CodeC22-D-R-K01-P5
EAN4015081759828
Product Length/Depth1060 mm
Product Height60 mm
Product Width75 mm
Product Weight0.06 kg
CertificationsCSA File No.: 165628 UL UL 508 UL File No.: E29184 UL Category Control No.: NKCR VDE 0660 IEC/EN 60947-5-1 CSA Class No.: 321103 CSA CE CSA-C22.2 No. 14-05 and 94-M91 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.181043.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMomentary Spring-return
Actuator colorRed
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
