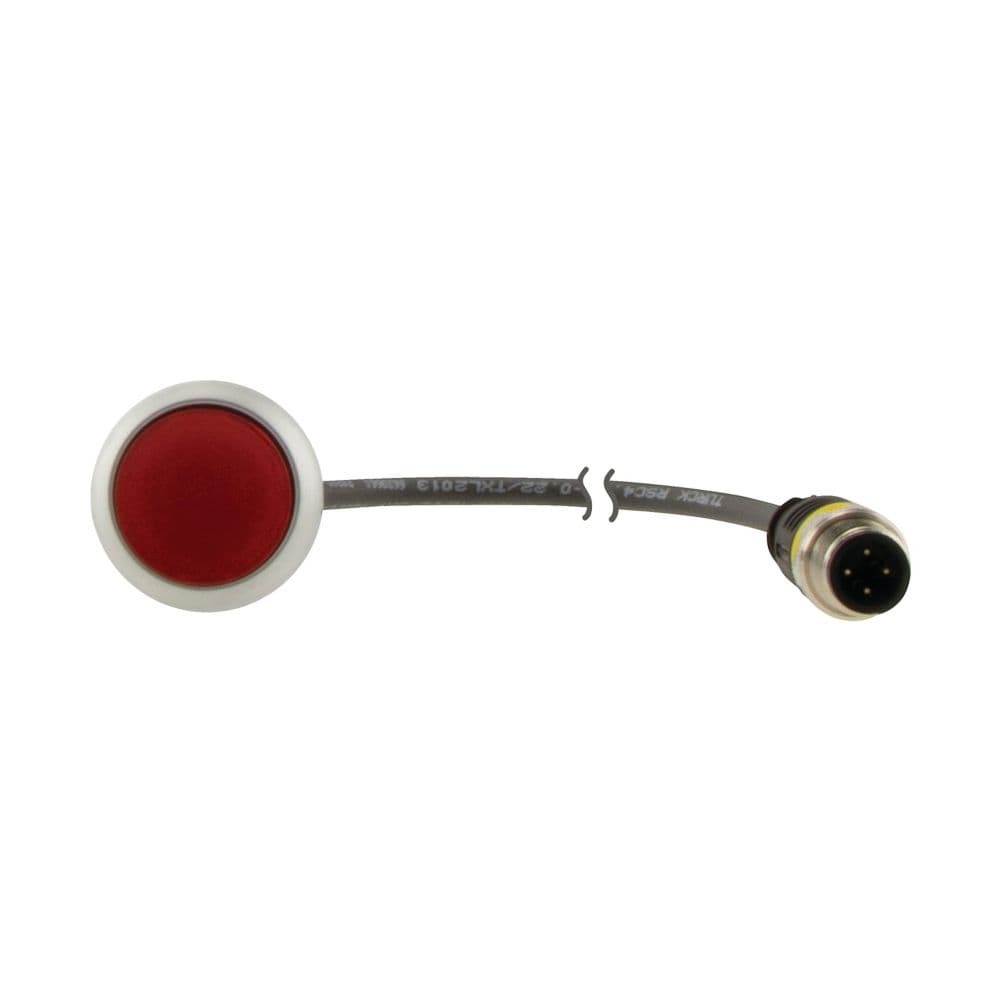

Eaton Moeller® series C22 Illuminated pushbutton actuator

Eaton

Eaton Moeller® series C22 Illuminated pushbutton actuator

رقم القطعة: 181368

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

المواصفات

Product NameEaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number181368
Model CodeC22-DRL-R-K01-24-P5
EAN4015081762361
Product Length/Depth1060 mm
Product Height60 mm
Product Width75 mm
Product Weight0.062 kg
CertificationsUL File No.: E29184 UL UL 508 CSA File No.: 165628 UL Category Control No.: NKCR IEC/EN 60947-5-1 VDE 0660 CSA Class No.: 321103 CSA-C22.2 No. 14-05 and 94-M91 CSA CE CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.181368.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionSwitching function latching Maintained
Actuator colorRed
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
