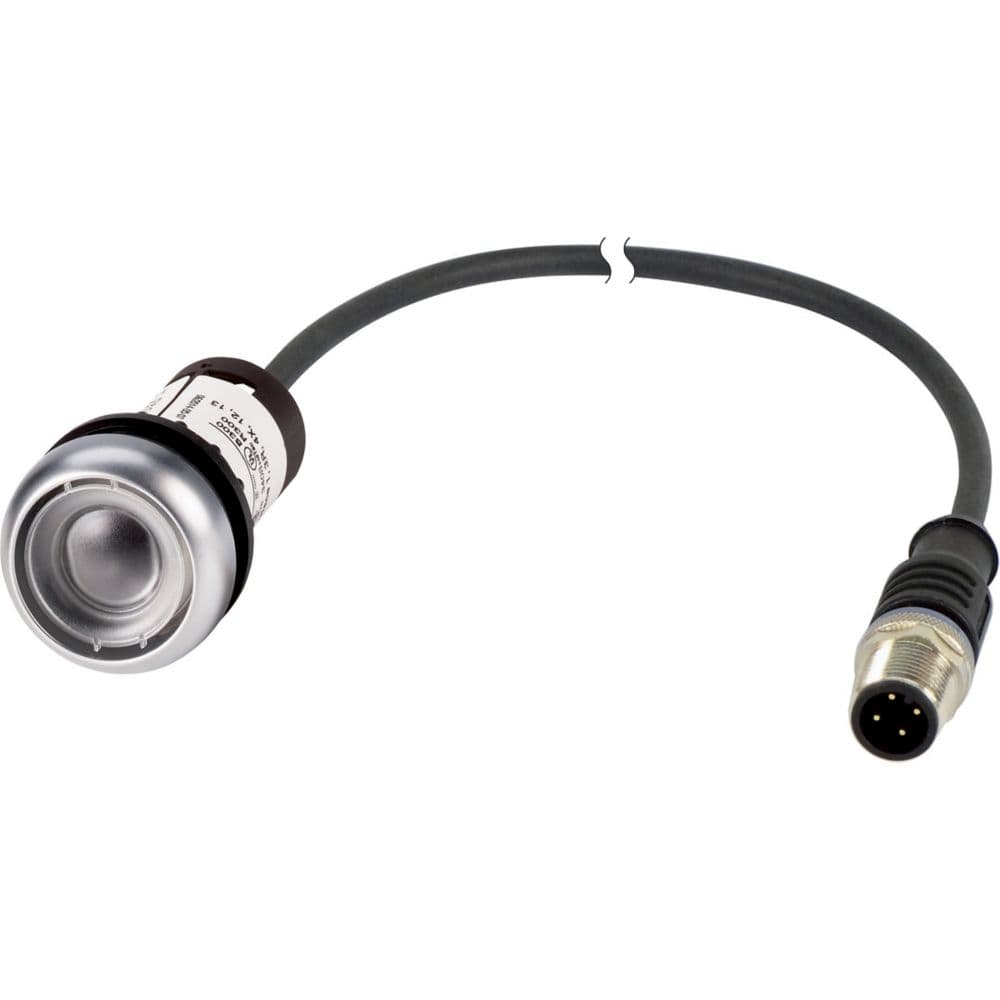

Eaton Moeller® series C22 Pushbutton

Eaton

Eaton Moeller® series C22 Pushbutton

رقم القطعة: 181614

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Pushbutton

المواصفات

Product NameEaton Moeller® series C22 Pushbutton
Catalog Number181614
Model CodeC22-DR-X-K01-P3
EAN4015081764815
Product Length/Depth560 mm
Product Height30 mm
Product Width30 mm
Product Weight0.048 kg
CertificationsVDE 0660 CSA File No.: 165628 CSA IEC/EN 60947-5-1 CSA-C22.2 No. 14-05 and 94-M91 CE UL 508 CSA Class No.: 321103 UL UL Category Control No.: NKCR UL File No.: E29184 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.181614.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionSwitching function latching Maintained
Actuator colorWithout button plate
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
