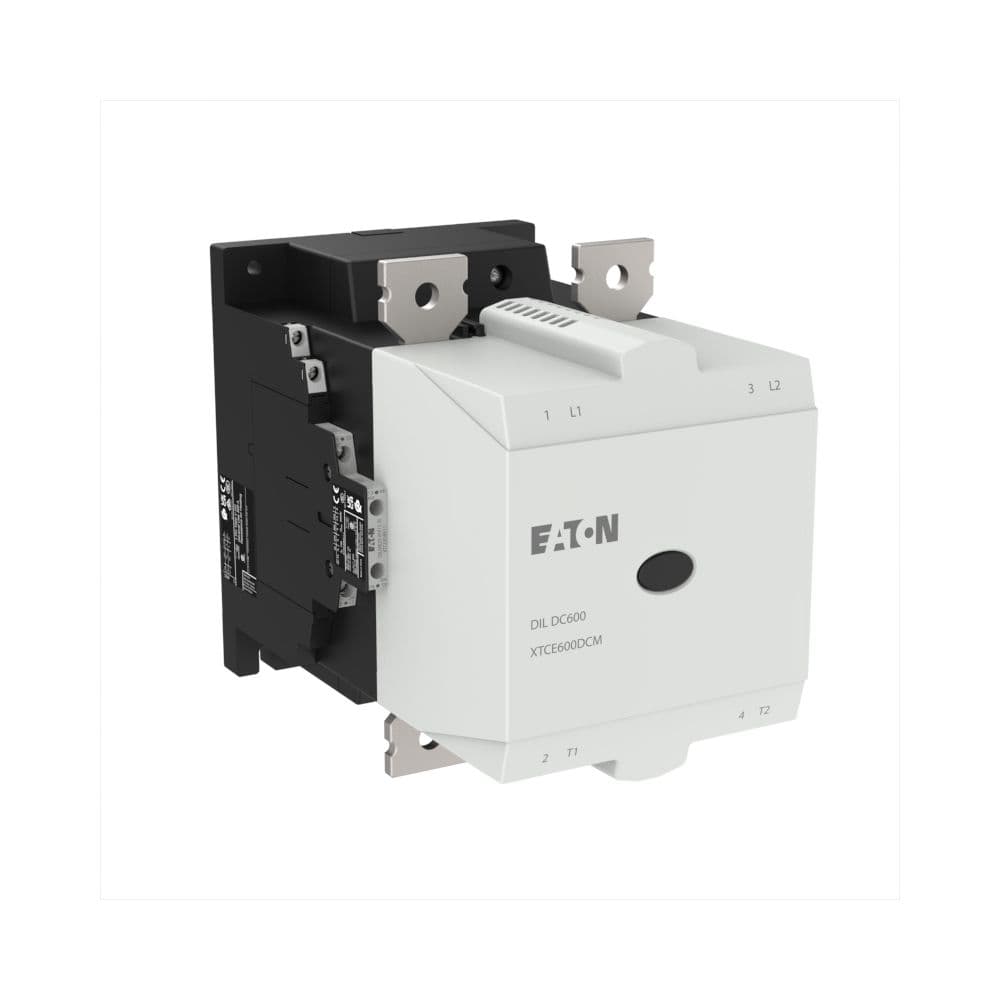

Eaton Moeller® series DILDC DC Contactor

Eaton

Eaton Moeller® series DILDC DC Contactor

رقم القطعة: 183314

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILDC DC Contactor

المواصفات

Ambient operating temperature (enclosed) - max40 °C
Ambient operating temperature (enclosed) - min-40 °C
Ambient operating temperature - max70 °C
Ambient operating temperature - min-40 °C
Ambient storage temperature - max80 °C
Ambient storage temperature - min-40 °C
Climatic proofingDamp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Product NameEaton Moeller® series DILDC DC Contactor
Catalog Number183314
Model CodeDILDC300/22(RDS250)
EAN4015081782499
Product Length/Depth248 mm
Product Height219 mm
Product Width160 mm
Product Weight7.5 kg
CertificationsUL Category Control No.: NRNT UL CSA Class No.: C321124 IEC/EN 60947-4-1 CSA UL File No.: E338590 CE UL508 CSA File No.: 012528 IEC/EN 60947-5-1 CSA-C22.2 No. 14-05
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.183314.html
Catalog NotesDILDC contactors feature an electronic arc suppression system. Because of this, it is important not to exceed any technical data limits in general – especially the making and breaking capacity limits. Opening the device will immediately void the warranty.
