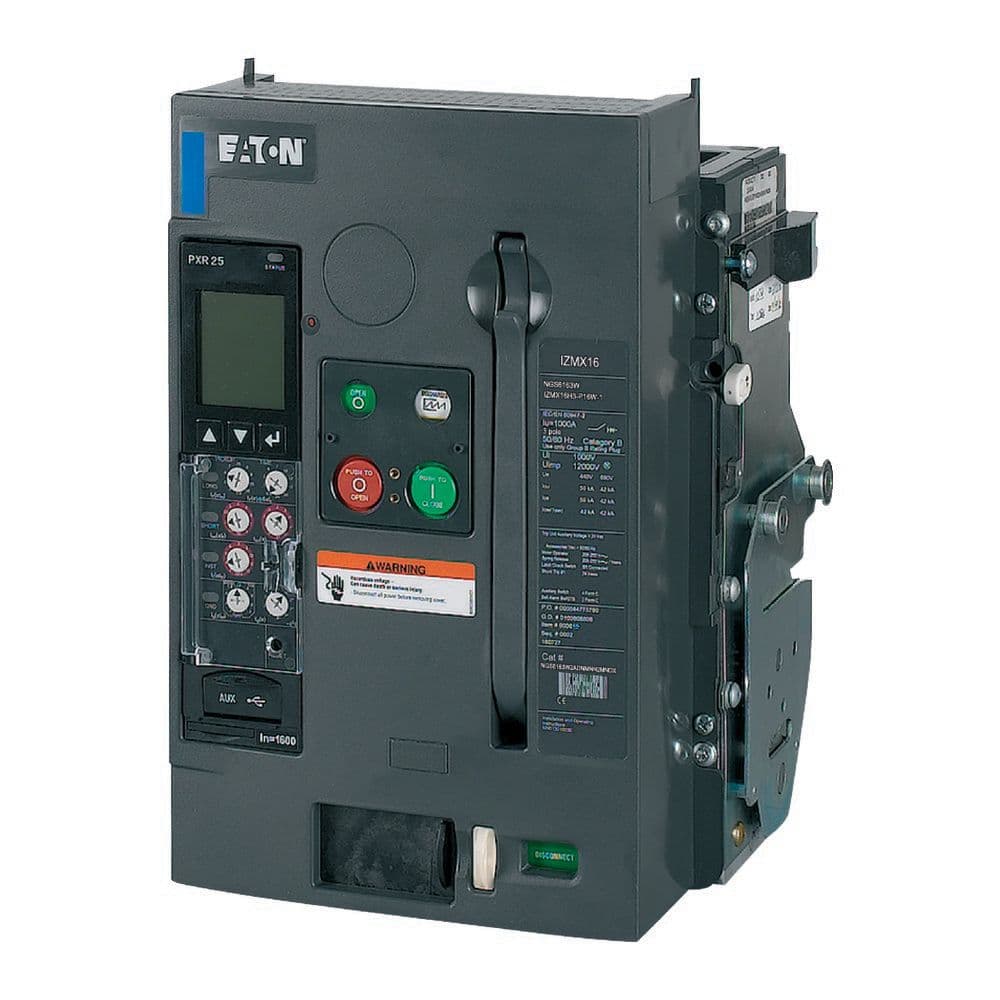

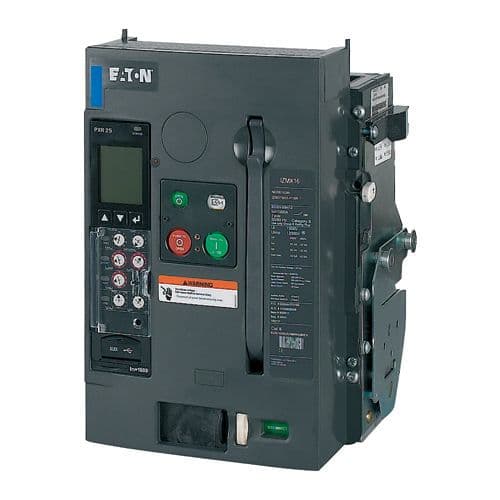

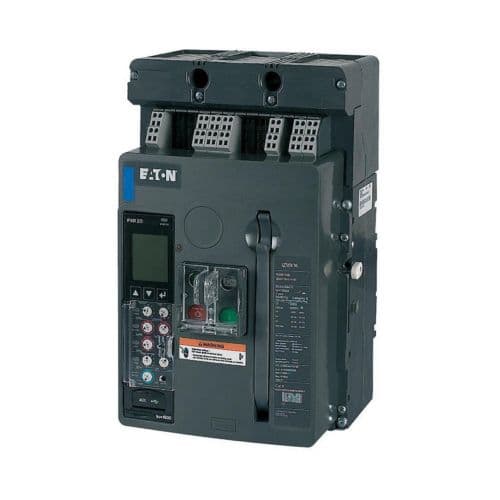

Eaton Moeller series IZMX/INX circuit-breaker

Eaton

Eaton Moeller series IZMX/INX circuit-breaker

رقم القطعة: 183471

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

المواصفات

Special featuresCassette must be separately ordered.External IZMX-DTP-PTM-1 voltage measuring module required (1 module is suitable for 16 circuit breakers)IZMX-DTP-PTM external voltage measuring module requiredsuitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilityWith graphic LCD displayoptionally fittable by user with comprehensive accessoriesTerminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product NameEaton Moeller series IZMX/INX circuit-breaker
Catalog Number183471
Model CodeIZMX16B3-P10W-1
EAN4015081792078
Product Length/Depth584 mm
Product Height597 mm
Product Width521 mm
Product Weight27.74 kg
CompliancesIEC/EN 60947 IEC RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.183471.html
Used withOpen circuit breaker Air circuit breakers/switch-disconnector
FeaturesComplete device with protection unit Motor drive optional
TypeAir circuit breakers/switch-disconnectorOpen circuit breaker
Fitted with:Switched-off indicator
Number of polesThree-pole
Amperage Rating1000 A
FrameIZMX16
Release systemElectronic release
