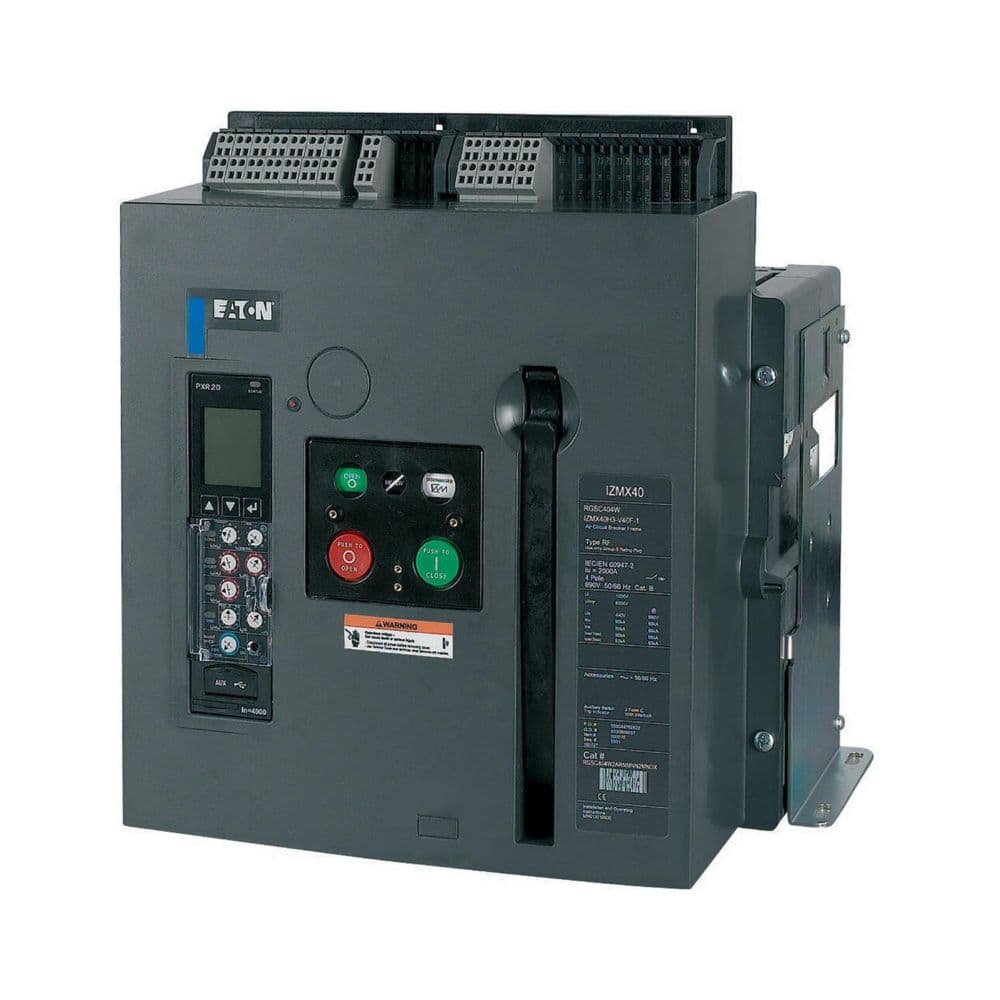

Eaton Moeller series IZMX/INX circuit-breaker

Name: Eaton Moeller series IZMX/INX circuit-breaker
Brand: Eaton
SKU: 183634

رقم القطعة: 183634

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

Special features	External IZMX-DTP-PTM-1 voltage measuring module required (1 module is suitable for 16 circuit breakers)suitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilityWith graphic LCD displayoptionally fittable by user with comprehensive accessoriesTerminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product Name	Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number	183634
Model Code	IZMX40H3-P08F-1
EAN	4015081793709
Product Length/Depth	584 mm
Product Height	597 mm
Product Width	521 mm
Product Weight	45 kg
Compliances	IEC/EN 60947 IEC RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.183634.html
Used with	Air circuit breakers/switch-disconnector Open circuit breaker
Features	Motor drive optional Complete device with protection unit
Type	Air circuit breakers/switch-disconnectorOpen circuit breaker
Fitted with:	Switched-off indicator
Number of poles	Three-pole
Amperage Rating	800 A
Frame	IZMX40
Release system	Electronic release
