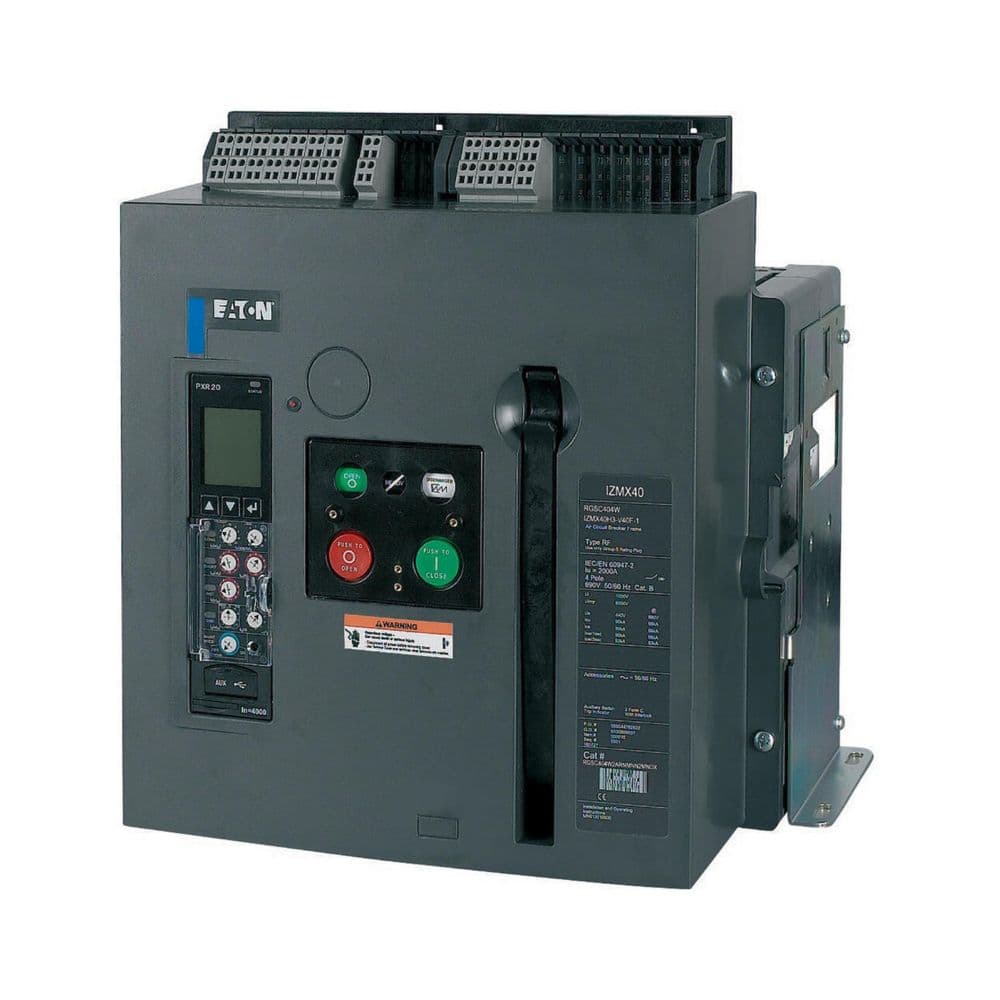

Eaton Moeller series IZMX/INX circuit-breaker

Name: Eaton Moeller series IZMX/INX circuit-breaker
Brand: Eaton
SKU: 183722

رقم القطعة: 183722

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

Special features	Main terminals must be separately ordered.suitable for zone selectivityoptionally fittable by user with comprehensive accessoriesTerminal capacity hint: These are values used in separate switchgear. The actual values will depend on the temperature around the circuit breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product Name	Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number	183722
Model Code	IZMX40H3-V20F-1
EAN	4015081794584
Product Length/Depth	584 mm
Product Height	597 mm
Product Width	521 mm
Product Weight	45 kg
Compliances	IEC/EN 60947 IEC RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.183722.html
Used with	Air circuit breakers/switch-disconnector Open circuit breaker
Features	Complete device with protection unit Motor drive optional
Type	Air circuit breakers/switch-disconnectorOpen circuit breaker
Fitted with:	Switched-off indicator
Number of poles	Three-pole
Amperage Rating	2000 A
Frame	IZMX40
Release system	Electronic release
