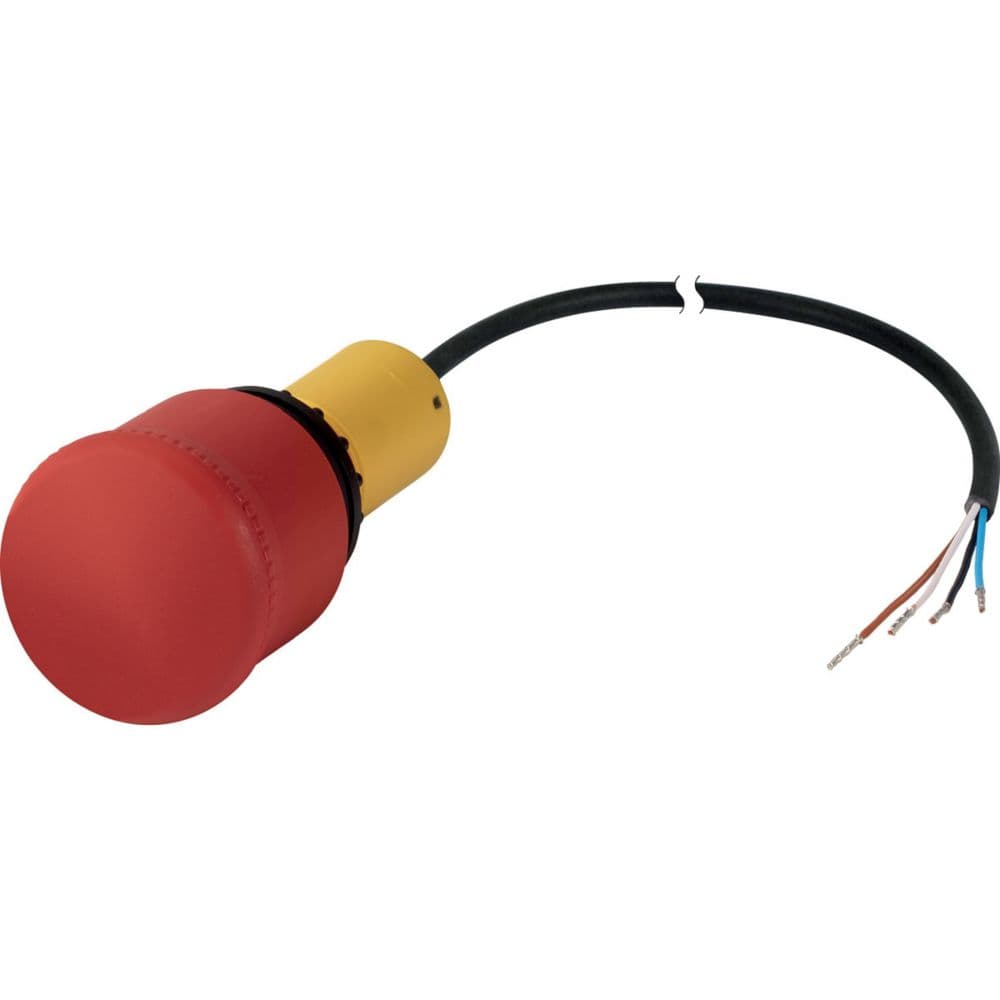

Eaton Moeller® series C22 Emergency stop/emergency switching off pushbutton

المواصفات

Product NameEaton Moeller® series C22 Emergency stop/emergency switching off pushbutton
Catalog Number185170
Model CodeC22-PV-K02-P65
EAN4015081806553
Product Length/Depth3597 mm
Product Height38 mm
Product Width38 mm
Product Weight0.148 kg
CertificationsCE VDE 0660 CSA IEC/EN 60947-5-5 UL CSA Class No.: 321103 CSA File No.: 165628 IEC/EN 60947-5-1 UL 508 CSA-C22.2 No. 14-10 CSA-C22.2 No. 94-91 CSA-C22.2 No. 94.2-07 CE marking UL File No.: E340491
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.185170.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionPull-to-release
Actuator colorRed
Actuating force50 N
Actuator diameter38 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
