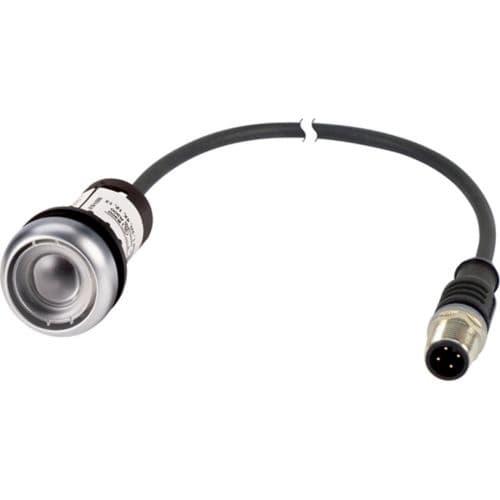

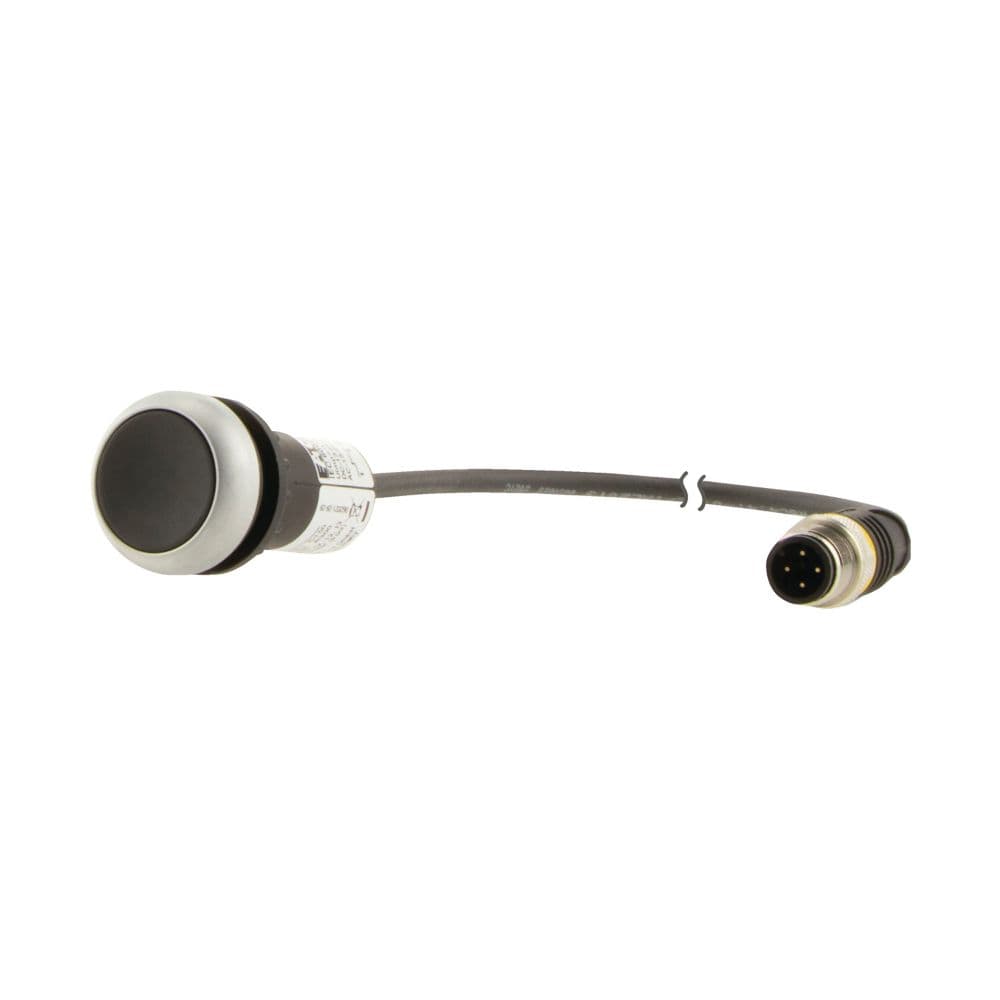

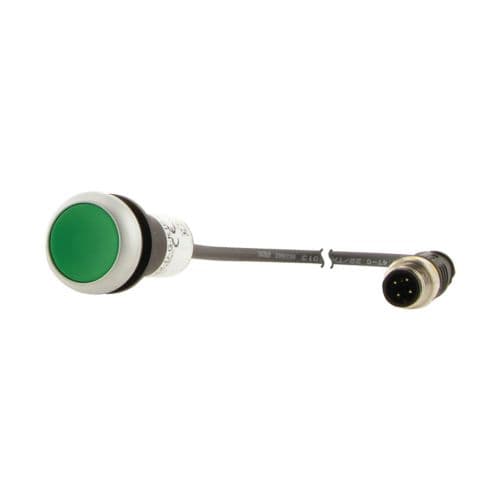

Eaton Moeller® series C22 Pushbutton

Eaton

Eaton Moeller® series C22 Pushbutton

رقم القطعة: 185676

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Pushbutton

المواصفات

Product NameEaton Moeller® series C22 Pushbutton
Catalog Number185676
Model CodeC22-D-S-K01-P1
EAN4015081811700
Product Length/Depth260 mm
Product Height30 mm
Product Width30 mm
Product Weight0.035 kg
CertificationsCE UL CSA VDE 0660 IEC/EN 60947-5-1 CSA Class No.: 321103 CSA File No.: 165628 UL 508 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking UL Category Control No.: NKCR UL File No.: E29184
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.185676.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionSpring-return Momentary
Actuator colorBlack
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
