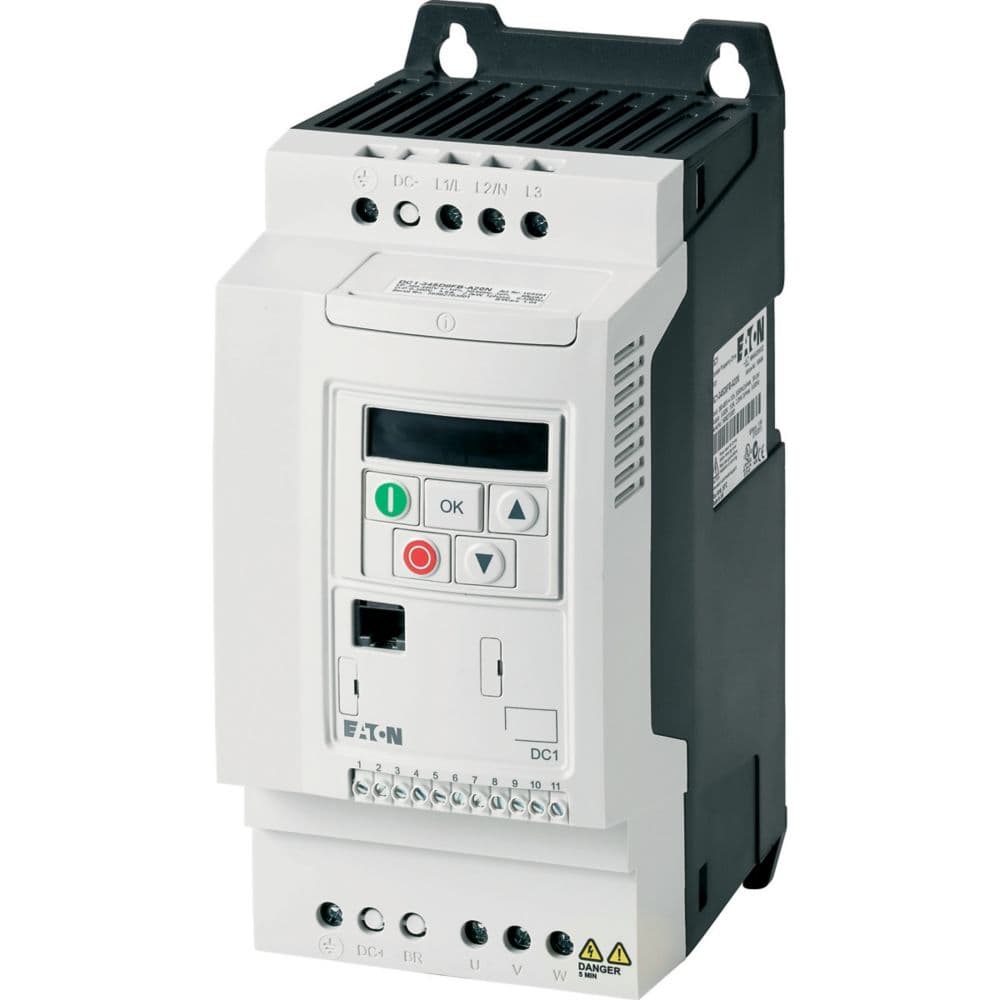

Eaton DC1 Variable frequency drive

رقم القطعة: 186076

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DC1 Variable frequency drive

المواصفات

Product NameEaton DC1 Variable frequency drive
Catalog Number186076
Model CodeDC1-S1011NB-A20CE1
EAN4015081815777
Product Length/Depth152 mm
Product Height231 mm
Product Width107 mm
Product Weight1.2 kg
CertificationsRCM UL 508C UL Category Control No.: NMMS, NMMS7 UL File No.: E172143 CUL IEC/EN61800-5 UL report applies to both US and Canada EAC CE Certified by UL for use in Canada Safety requirements: IEC/EN 61800-5-1 IEC/EN 61800-3 UL CSA-C22.2 No. 14 IEC/EN61800-3 UkrSEPRO RoHS, ISO 9001 Specification for general requirements: IEC/EN 61800-2
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.186076.html
Catalog NotesEnvironmental class: 3C2, 3S2
Braking torqueMax. 100 % of rated operational current Ie, variable, DC - Main circuit Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Braking resistance100 Ω
