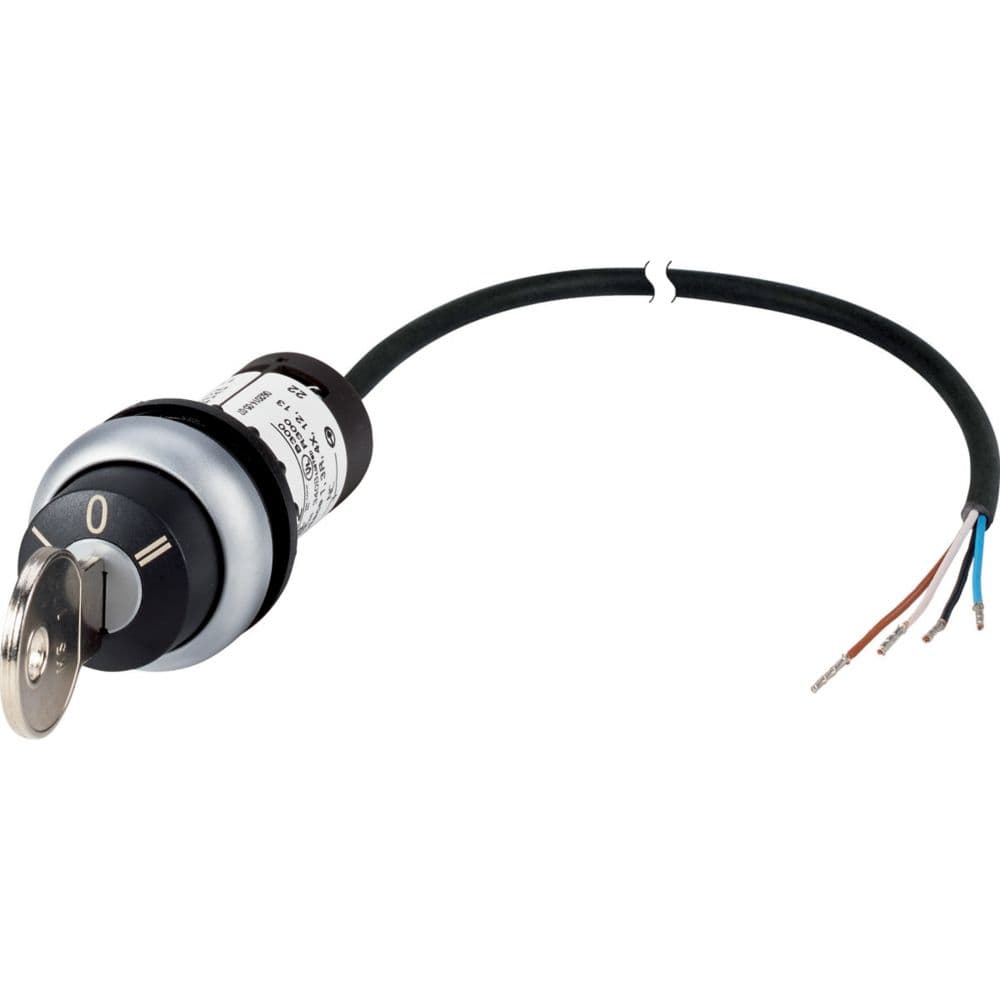

Eaton Moeller® series C22 Key-operated actuator

Eaton

Eaton Moeller® series C22 Key-operated actuator

رقم القطعة: 186269

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Key-operated actuator

المواصفات

Product NameEaton Moeller® series C22 Key-operated actuator
Catalog Number186269
Model CodeC22-WRS3-MS1-K20-P62
EAN4015081817702
Product Length/Depth1097 mm
Product Height30 mm
Product Width30 mm
Product Weight0.069 kg
CertificationsCE VDE 0660 IEC/EN 60947-5-1 UL CSA CSA File No.: 165628 CSA Class No.: 321103 UL File No.: E29184 UL 508 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking UL Category Control No.: NKCR UL listed, CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.186269.html
Catalog NotesNot suitable for master key systems
Actuator functionMaintained Key withdrawable in position 0 Key withdrawable in position 2 Switching function latching Key withdrawable in position 1
Actuator typeKey
Number of switch positions3
Actuator colorBlack
Actuator diameter4.7 mm
