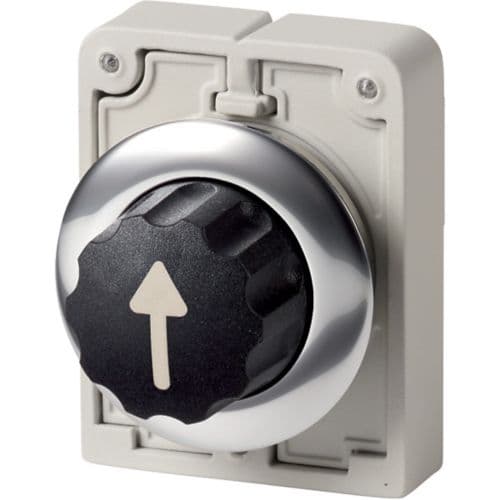

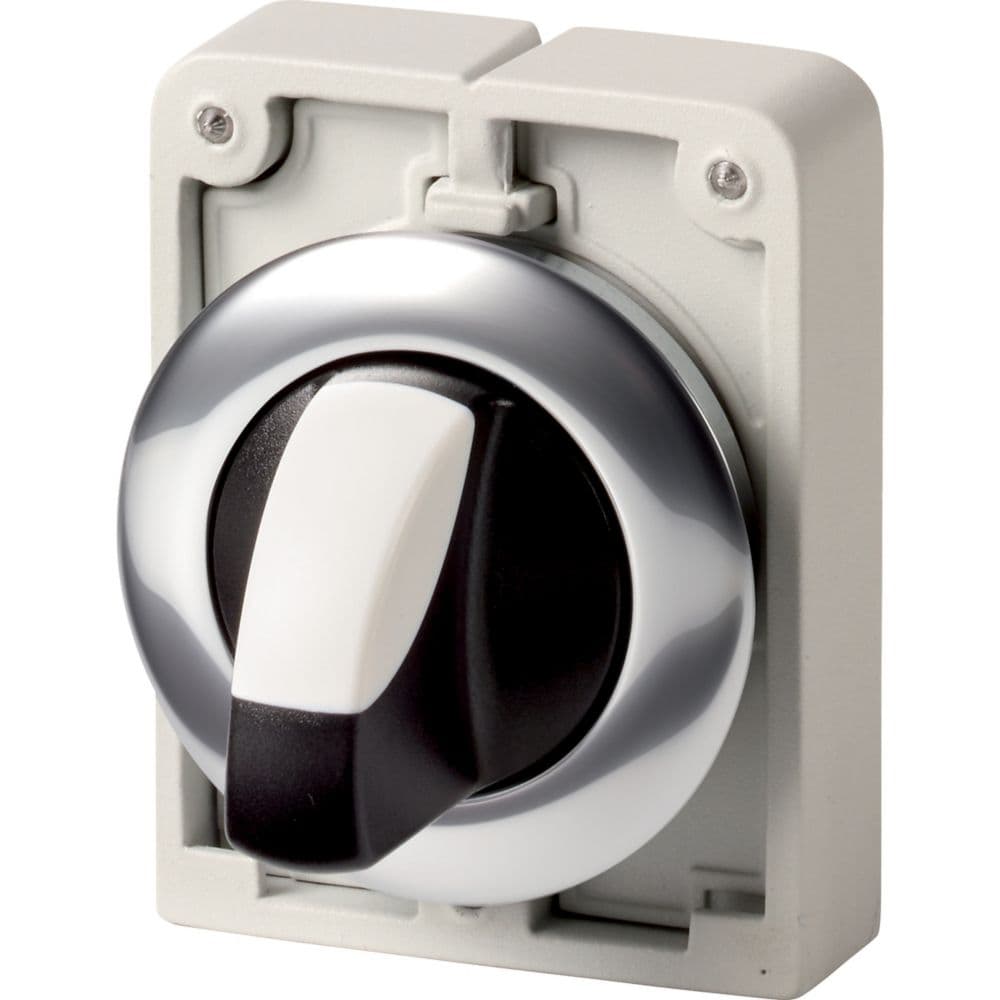

Eaton Moeller® series M30 selector switch

Eaton

Eaton Moeller® series M30 selector switch

رقم القطعة: 187110

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M30 selector switch

المواصفات

FunctionsStay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product NameEaton Moeller® series M30 selector switch
Catalog Number187110
Model CodeM30C-FWRK3
EAN4015081821600
Product Length/Depth36 mm
Product Height47 mm
Product Width46 mm
Product Weight0.042 kg
CertificationsIEC/EN 60947 VDE 0660 CSA file No. 012528 CSA Class No.: 3211-03 DNV UL File No.: E29184 GL IEC/EN 60947-5 UL 508 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 CE marking UL Category Control No.: NKCR UL Listed CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.187110.html
Actuator functionSwitching function latching Maintained
Actuator typeToggle
Number of switch positions3
Actuator colorBlack
Fitted with:Front ring Plunger bridge for the middle contact
DesignWith thumb-grip Flat front
Bezel colorTitanium
Bezel materialMetal
Indicator colorOther
Lens typeRound
