الوصف

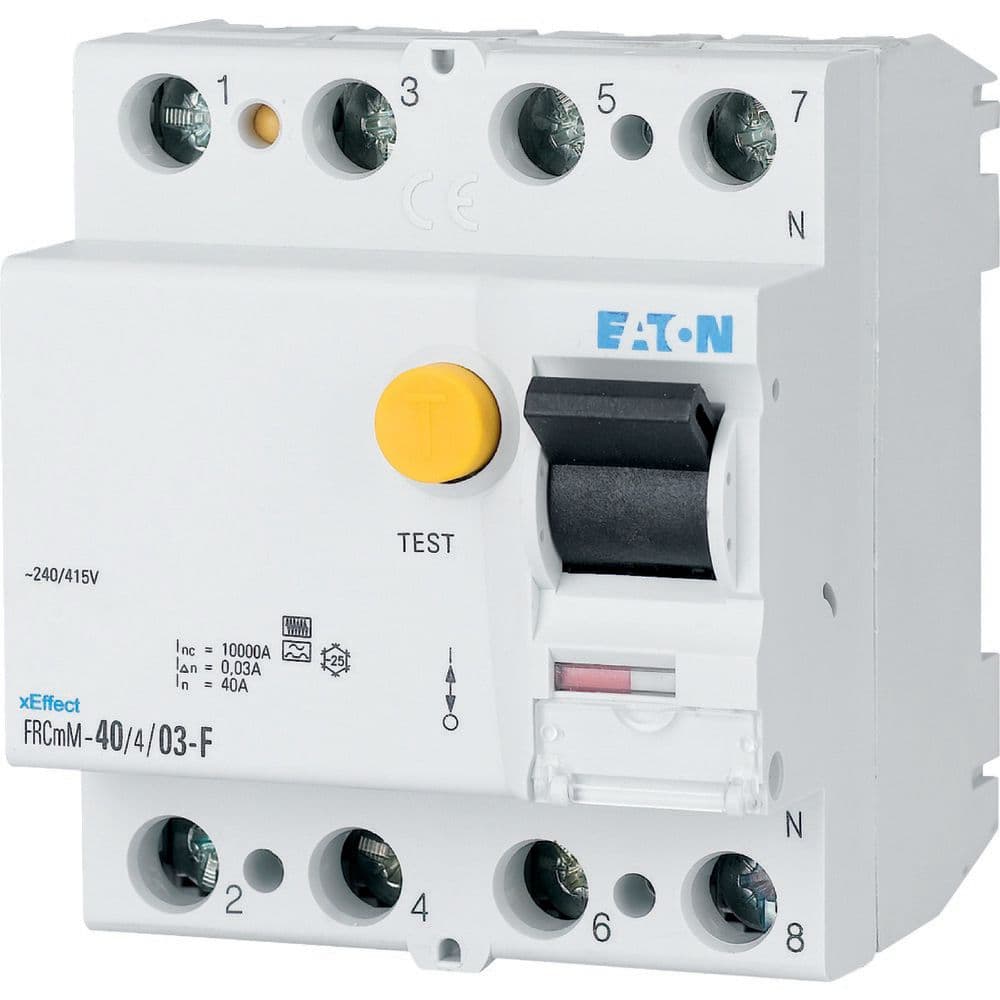

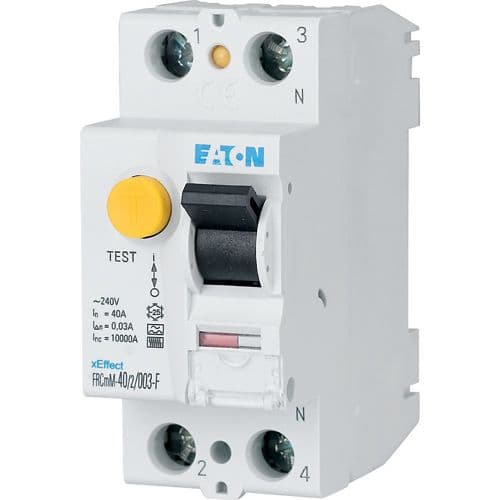

Eaton Moeller series xEffect - FRCmM Type F RCCB

المواصفات

Special featuresCurrent test marks as per inscriptionMaximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C
Product NameEaton Moeller series xEffect - FRCmM Type F RCCB
Catalog Number187400
Model CodeFRCMM-100/2/03-S/F
EAN4015081824588
Product Length/Depth76 mm
Product Height80 mm
Product Width35 mm
Product Weight0.202 kg
CompliancesRoHS conform
CertificationsIEC/EN 62423 EN45545-2 IEC 61373 IEC/EN 61008
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.187400.html
Used withResidual current circuit breakers Type S/F FRCmM
FeaturesResidual current circuit breaker Selective protection Additional equipment possible
Fitted with:Interlocking device
