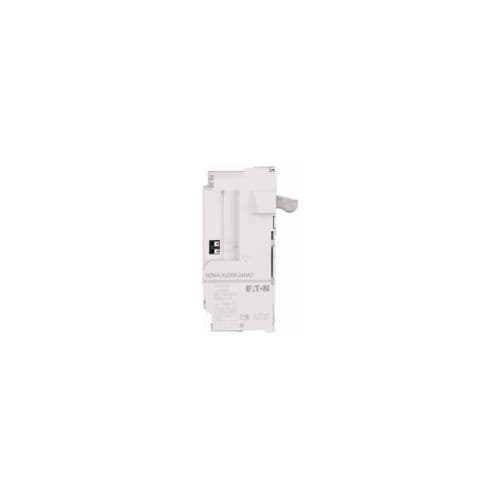

Eaton Moeller series NZM Undervoltage release

Name: Eaton Moeller series NZM Undervoltage release
Brand: Eaton
SKU: 189770

رقم القطعة: 189770

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

Special features	Non-delayed disconnection of NZM circuit-breaker or N switch-disconnector when the control voltage sinks below 35 – 70% US.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Undervoltage release modules cannot be installed simultaneously with early-make contact NZM…-XHIV, shunt release NZM…-XA… or relais modules NZM...-X2A...
Product Name	Eaton Moeller series NZM Undervoltage release
Catalog Number	189770
Model Code	NZM4-XU48DC-PI
EAN	4015081877652
Product Length/Depth	110 mm
Product Height	63 mm
Product Width	62 mm
Product Weight	0.245 kg
Compliances	IEC UL/CSA
Source URL	https://www.eaton.com/gb/en-gb/skuPage.189770.html
Suitable for	Off-load switch Motor safety switch
Used with	NZM4(-4), N(S)4(-4)
Type	AccessoryUndervoltage release
Frame	NZM4
