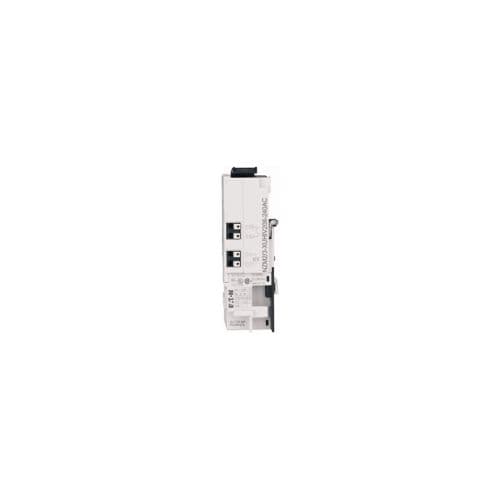

Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 189777

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresFor interlocking and load-shedding circuits, as well as for early-make of the undervoltage release in main-switch applications. Instantaneous shut-off of the NZM circuit breaker when the control voltage drops below 35 - 70% Us. For use with emergency-stop devices in connection with an emergency-stop button. When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on. Early-make of auxiliary contacts on switching on and off (manual operation): approx. 20 ms (NZM2/3) and 90 ms (NZM4). Undervoltage release modules cannot be installed simultaneously with early-make contact NZM…-XHIV, shunt release NZM…-XA… or relais modules NZM...-X2A...
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number189777
Model CodeNZM2/3-XUHIV110-130AC-PI
EAN4015081877720
Product Length/Depth115 mm
Product Height65 mm
Product Width75 mm
Product Weight0.08 kg
CompliancesUL/CSA IEC RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.189777.html
Suitable forOff-load switch Motor safety switch
Used withNZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
TypeAccessory Undervoltage release Undervoltage release with early-make auxiliary contact
Fitted with:Early-make auxiliary contact
