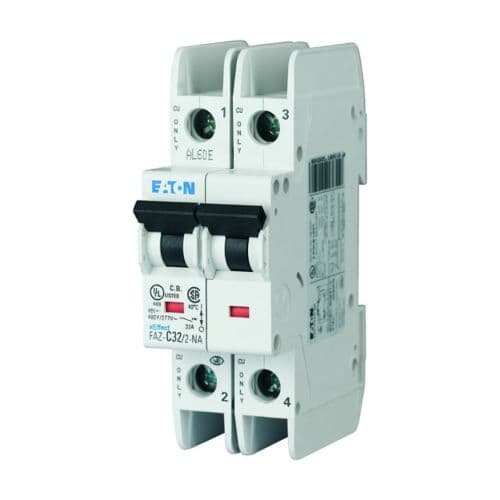

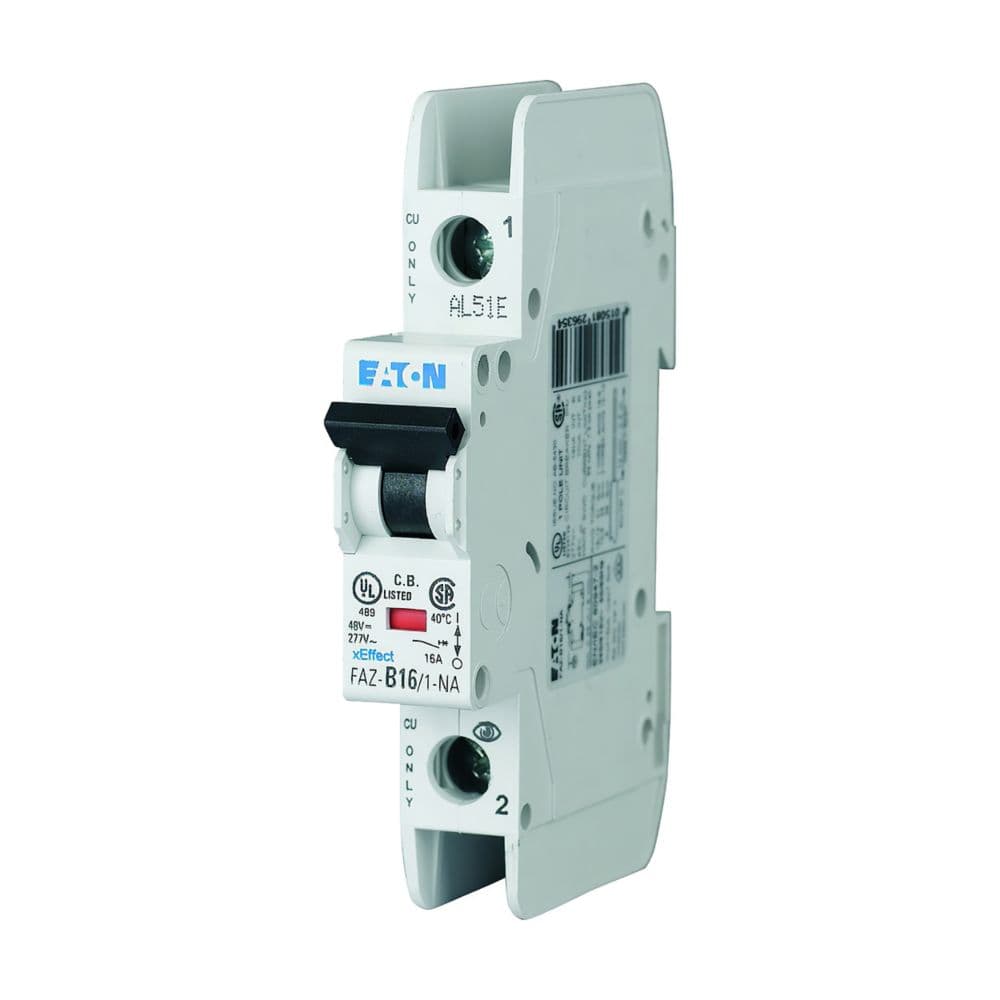

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 190780

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacityTripping signal contact for subsequent installation Z-NHK 248434
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number190780
Model CodeFAZ-B63/1-NA
EAN4015081930500
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.127 kg
CompliancesRoHS conform
CertificationsUL 489, CSA C22.2 No. 5 UL (File No. E235139) CE marking CSA (File No. 204453) CSA (Class No. 1432-01) IEC/EN 60947-2 IEC 60947-2 CSA-C22.2 No. 5-09 UL (Category Control Number DIVQ) UL 489 North America (UL listed, CSA certified) Specially designed for North America, suitable as BCPD EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.190780.html
Suitable forFlush-mounted installation
Used withFAZ-XAA-NA110-415V AC 102036 (Shunt trip release) FAZ-XAA-NA12-110V AC 102037 (Shunt trip release) FAZ-NA Miniature circuit breaker FAZ-XAA-NA110-415V AC 102036 (Shunt trip release) FAZ-XAA-NA12-110V AC 102037 (Shunt trip release)
FeaturesAdditional equipment possible
Fitted with:Z-IS/SPE-1TE 274418
Accessories requiredZ-IHK-NA 113895
Current limiting class3
Internal resistance at room temperature (single-pole, 50 Hz)1.2 mΩ
