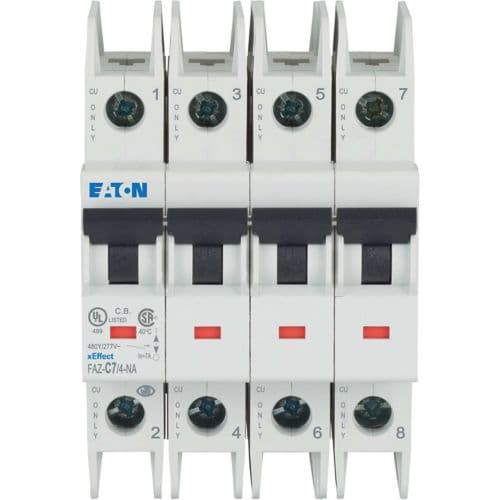

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 190926

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacityTripping signal contact for subsequent installation Z-NHK 248434
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number190926
Model CodeFAZ-C10/4-NA
EAN4015081905737
Product Length/Depth105 mm
Product Height75.5 mm
Product Width70.8 mm
Product Weight0.483 kg
CompliancesRoHS conform
CertificationsCSA (Class No. 1432-01) UL (Category Control Number DIVQ) IEC 60947-2 CE marking UL 489, CSA C22.2 No. 5 UL (File No. E235139) Specially designed for North America, suitable as BCPD CSA-C22.2 No. 5-09 IEC/EN 60947-2 UL 489 CSA (File No. 204453) North America (UL listed, CSA certified) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.190926.html
Suitable forFlush-mounted installation
Used withFAZ-XAA-NA110-415V AC 102036 (Shunt trip release) FAZ-XAA-NA12-110V AC 102037 (Shunt trip release) FAZ-NA Miniature circuit breaker FAZ-XAA-NA110-415V AC 102036 (Shunt trip release) FAZ-XAA-NA12-110V AC 102037 (Shunt trip release)
FeaturesAdditional equipment possible
Fitted with:Z-IS/SPE-1TE 274418
Accessories requiredZ-IHK-NA 113895
Current limiting class3
Internal resistance at room temperature (single-pole, 50 Hz)14 mΩ
