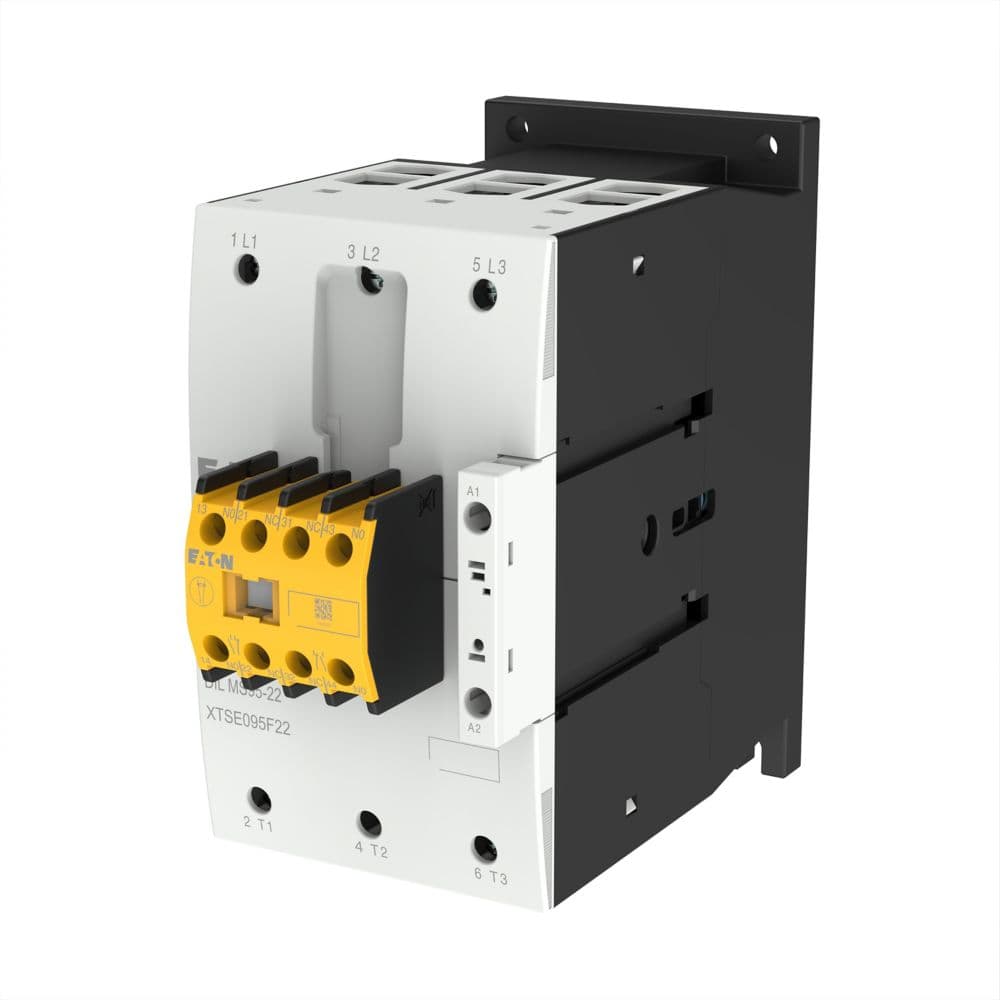

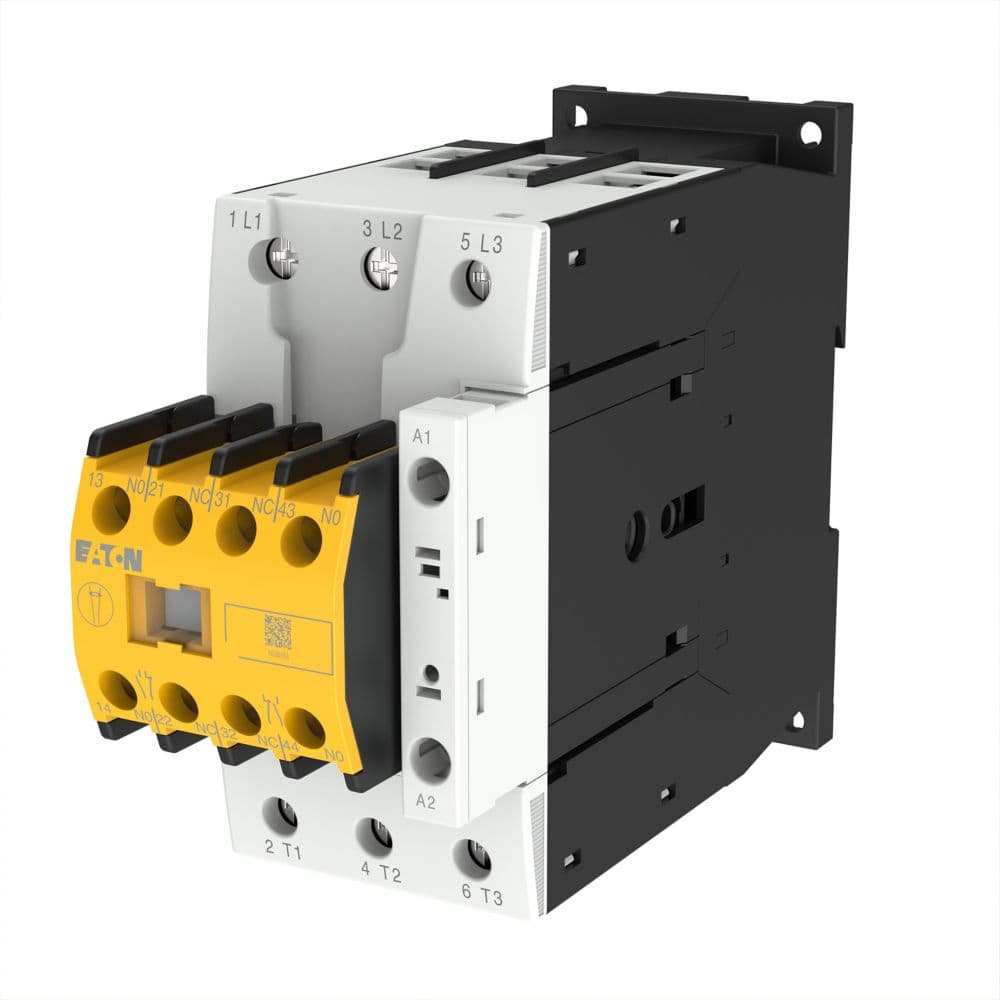

Eaton Moeller® series DILMS Safety contactor

Name: Eaton Moeller® series DILMS Safety contactor
Brand: Eaton
SKU: 191728

رقم القطعة: 191728

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILMS Safety contactor

Ambient operating temperature (enclosed) - max	40 °C
Ambient operating temperature (enclosed) - min	-25 °C
Ambient operating temperature - max	60 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	80 °C
Ambient storage temperature - min	-40 °C
Climatic proofing	Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Product Name	Eaton Moeller® series DILMS Safety contactor
Catalog Number	191728
Model Code	DILMS80-22(110V50HZ,120V60HZ)
EAN	4015081922413
Product Length/Depth	175 mm
Product Height	170 mm
Product Width	90 mm
Product Weight	2.31 kg
Certifications	UL File No.: E29096 CSA File No.: 012528 IEC/EN 60947-4-1 IEC/EN 60947 CSA Class No.: 2411-03, 3211-04 VDE 0660 CSA-C22.2 No. 60947-4-1-14 UL Category Control No.: NLDX UL CE UL 60947-4-1 CSA
Source URL	https://www.eaton.com/gb/en-gb/skuPage.191728.html
Catalog Notes	Contacts according to EN 50012
