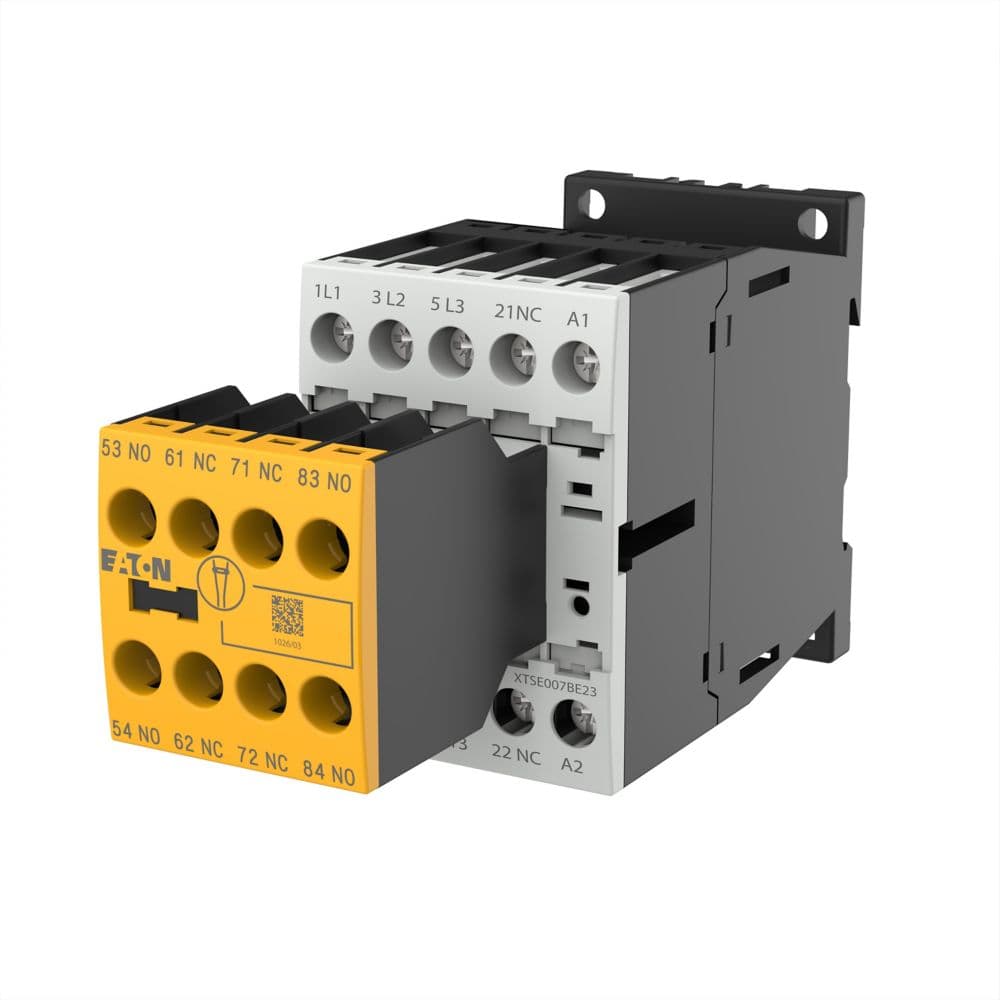

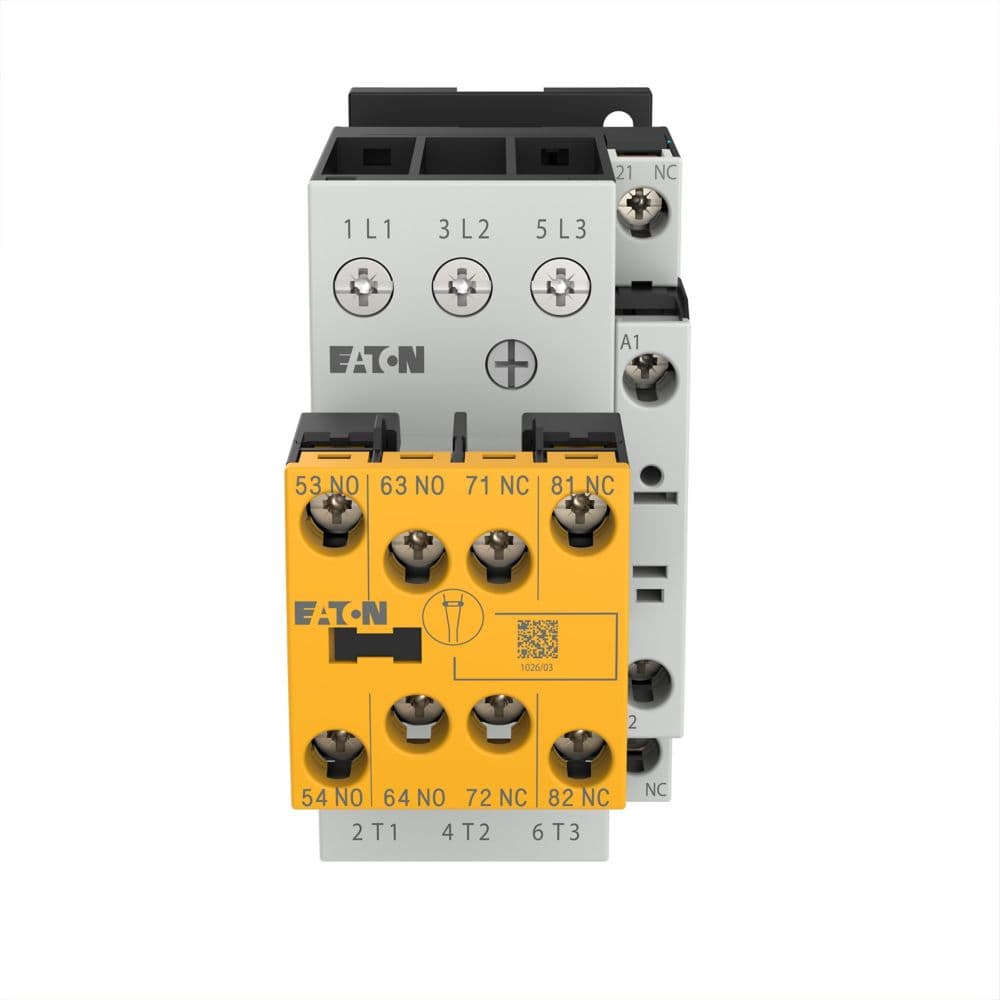

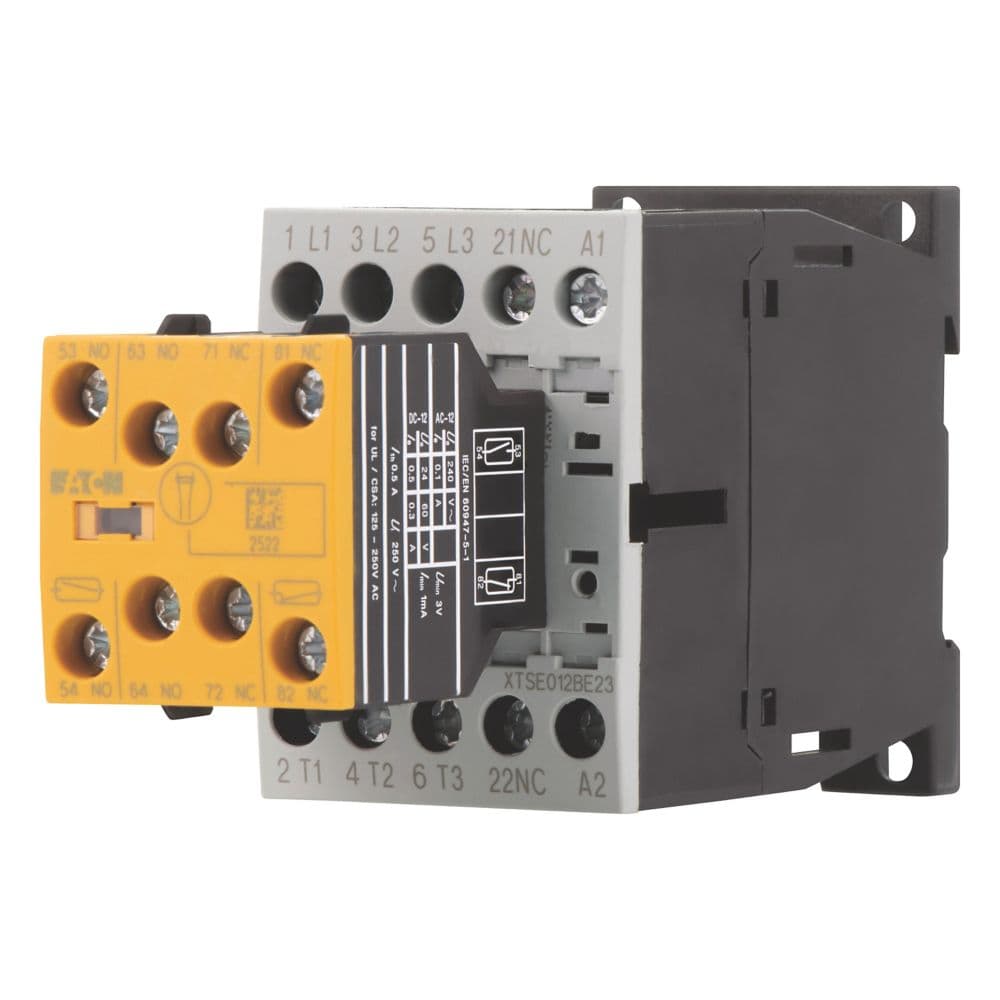

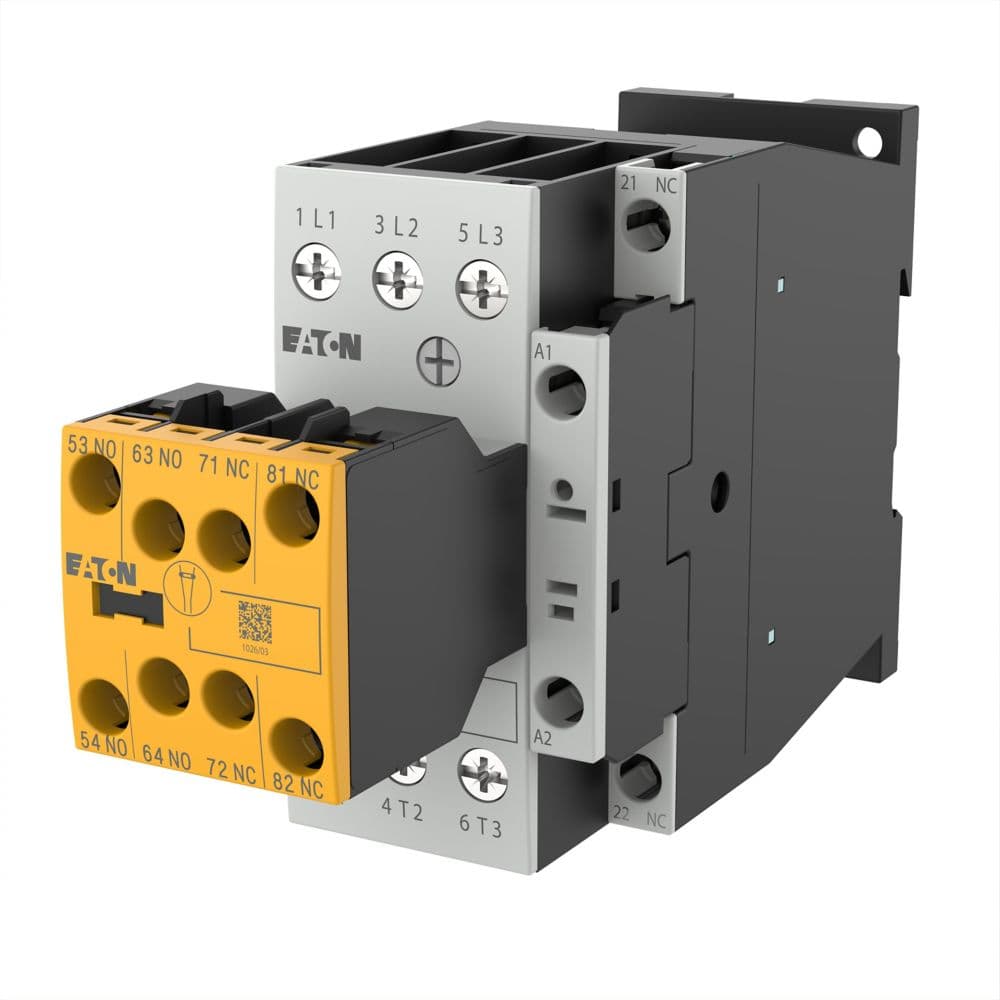

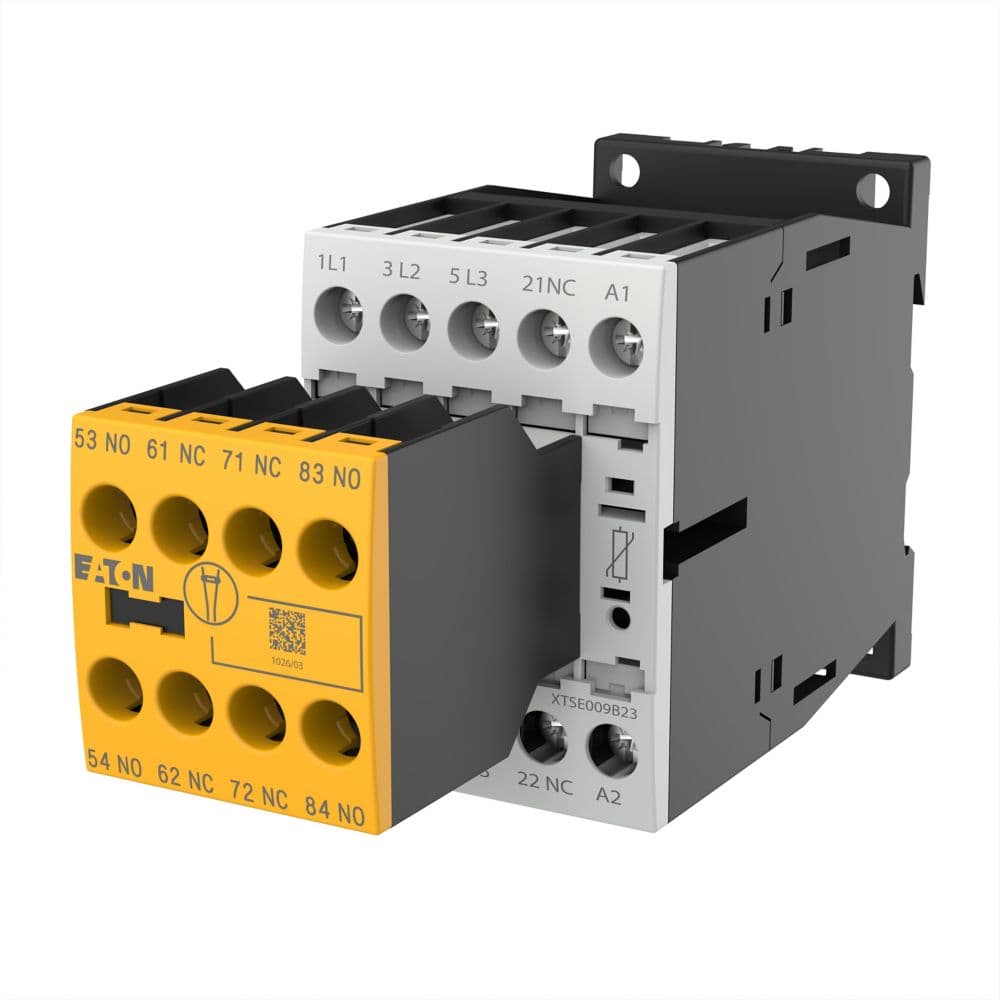

Eaton Moeller® series DILMS Safety contactor

Name: Eaton Moeller® series DILMS Safety contactor
Brand: Eaton
SKU: 191762

رقم القطعة: 191762

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILMS Safety contactor

Ambient operating temperature (enclosed) - max	40 °C
Ambient operating temperature (enclosed) - min	-25 °C
Ambient operating temperature - max	60 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	80 °C
Ambient storage temperature - min	-40 °C
Climatic proofing	Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Product Name	Eaton Moeller® series DILMS Safety contactor
Catalog Number	191762
Model Code	DILMS9-23(24VDC)
EAN	4015081922758
Product Length/Depth	117 mm
Product Height	69 mm
Product Width	45 mm
Product Weight	0.354 kg
Certifications	CSA Class No.: 2411-03, 3211-04 IEC/EN 60947-4-1 UL 60947-4-1 VDE 0660 CSA File No.: 012528 IEC/EN 60947 UL File No.: E29096 CSA UL CE CSA-C22.2 No. 60947-4-1-14 UL Category Control No.: NLDX
Source URL	https://www.eaton.com/gb/en-gb/skuPage.191762.html
Catalog Notes	Contacts according to EN 50012
