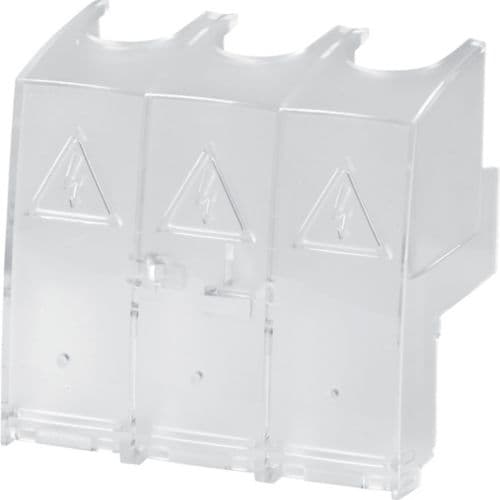

Eaton Moeller® series R9 Accessory Terminal shroud

Eaton

Eaton Moeller® series R9 Accessory Terminal shroud

رقم القطعة: 191851

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series R9 Accessory Terminal shroud

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-25 °C
Product NameEaton Moeller® series R9 Accessory Terminal shroud
Catalog Number191851
Model CodeTS1R9
EAN4015081923724
Product Length/Depth53 mm
Product Height30 mm
Product Width26 mm
Product Weight0.02 kg
CompliancesCE
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.191851.html
TypeCover 1 poleTerminal cover
10.10 Temperature riseNot applicable.
10.11 Short-circuit ratingNot applicable.
10.12 Electromagnetic compatibilityNot applicable.
10.13 Mechanical functionNot applicable.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Accessory/spare part typeCover
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss0 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
