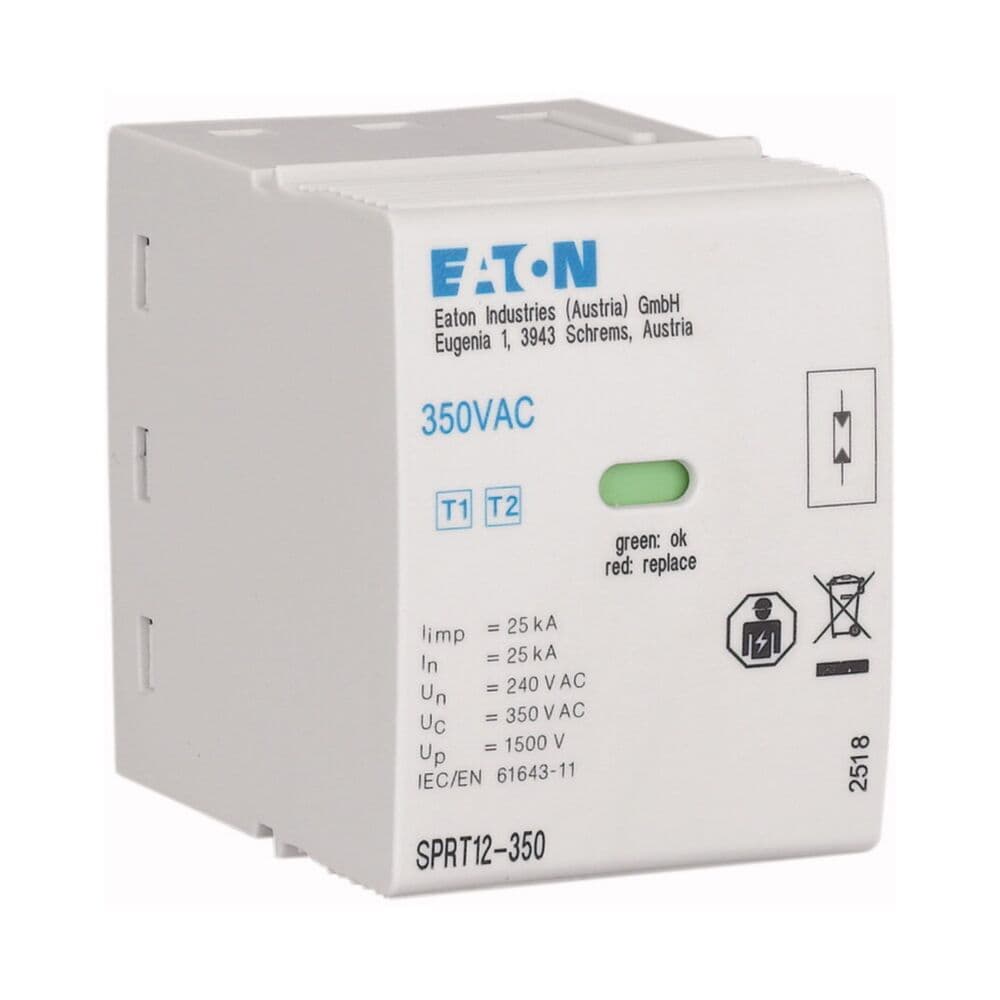

Eaton Moeller series xPole - SPRT12 Surge protection device

Name: Eaton Moeller series xPole - SPRT12 Surge protection device
Brand: Eaton
SKU: 195237

رقم القطعة: 195237

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xPole - SPRT12 Surge protection device

Functions	Energy-coordinated protection effect with regard to the terminal equipment
Product Name	Eaton Moeller series xPole - SPRT12 Surge protection device
Catalog Number	195237
Model Code	SPRT12-350
EAN	9010238084520
Product Length/Depth	35.5 mm
Product Height	56.1 mm
Product Width	44.8 mm
Product Weight	0.242 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.195237.html
Type	Surge arrester
Degree of protection	IP20
Mounting method	On basic element
Number of poles	Zero-pole
Frame	2 modular spacing
Application	Open areasResidential buildingsUtility buildings
System configuration type	TN
Test class	Type 1 + 2
Specific energy (W/R)	160 kJ/Ohm
Conductor cross section (flexible, fine-strand) - max	0 mm²
Conductor cross section (solid, solid-strand) - max	0 mm²
Continuous voltage at AC - max	350 V
Continuous voltage at DC - max	0 V
Follow current extinguishing capability	50 kA
Lightning impulse current (10/350 µs)	25 kA
Nominal voltage at AC	240 V
Nominal voltage at DC	0 V
PV-voltage - max	0 V
Voltage protection level	1.5 KV
Voltage protection level (DC+ - DC-)	0 KV
Voltage protection level (DC+/DC- - PE)	0 KV
Signalling at the device	Optic
Overcurrent protection device, parallel connection (fuse) - max	0 A
Overcurrent protection device, series connection (fuse) - max	315 A
Voltage protection level (L-N)	1.5 KV
Voltage protection level (L-PE)	0 KV
Voltage protection level (N-PE)	0 KV
